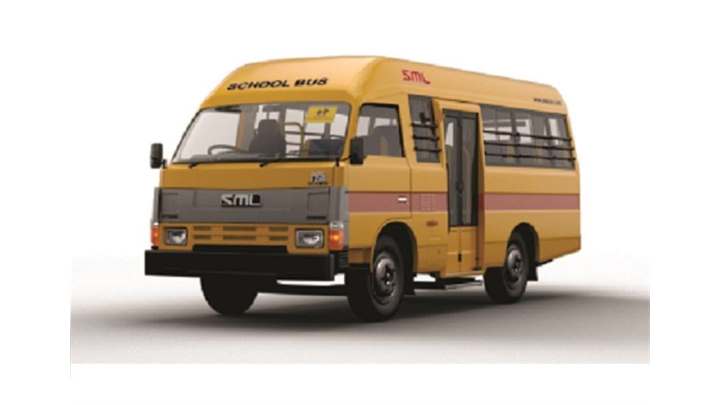

SML Isuzu EcoMax LR 2815 : 19+D Bus Specifications


Don't miss out on the best discount offers on SML Isuzu EcoMax LR 2815 : 19+D Bus for this month

SML Isuzu EcoMax LR 2815 : 19+D - 6 Wheeler Bus Highlights

Power

SML Isuzu EcoMax LR 2815 : 19+D Bus Power

100
GVW

SML Isuzu EcoMax LR 2815 : 19+D Bus GVW

4500 Kg
Fuel

SML Isuzu EcoMax LR 2815 : 19+D Bus Fuel

Diesel
Engine

SML Isuzu EcoMax LR 2815 : 19+D Bus Engine

3455 cc
Cylinders

SML Isuzu EcoMax LR 2815 : 19+D Bus Cylinders

4

Key Specifications of SML Isuzu EcoMax LR 2815 : 19+D Bus

  • Engine
    SLT6 CRDI TCIC
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    3455 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    100 HP @ 2600 rpm
  • Torque
    310 Nm@1400-1600 rpm
  • Clutch
    260 mm dia
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    Synchromesh
  • Emission Norms Compliance
    BS6
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    70 Litres
  • Electricals Battery
    12V, 120 Ah
  • GVW
    4500 Kg
  • Seating Layout
    2x2
  • Seating Capacity
    19+D
  • Passenger Door Type
    Jack-knife type
  • Floor Type
    Anti-skid flooring
  • Chassis Frame
    Box type
  • Axle Configuration
    4x2
  • Front Axle
    Forged I section, Reverse Elliot type
  • Front Suspension
    Semi elliptical leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Tyres
    7 R 16 - 12PR
    7.00x16 - 14PR (Optional)
    4+1 tyres
  • Wheelbase
    2815 mm
  • Turning Circle Diameter
    11 m
  • Ground Clearance
    206 mm
  • Overall Length
    5668 mm
  • Overall Width
    2000 mm
  • Overall Height
    2500 mm
  • Front Track
    1640 mm
  • Rear Track
    1486 mm

SML Isuzu EcoMax LR 2815 : 19+D Bus Specification Highlights

This page specifies the engine performance and body configuration of this SML EcoMax LR bus. It is powered by an SLT6 CRDI TCIC 4-cylinder engine of 3455 cc displacement. This powerful engine exerts a high-end torque of 310 Nm and a power of 100 horsepower. It has a common rail fuel injection system and runs on diesel fuel with good mileage. It comes with a jack-knife-type door. It provides a fuel tank capacity of 70 liters. A 5-speed gearbox system is provided to manage its power transmission. It comes under BS6 emission norms. The seating capacity of this bus is 19 seaters with a driver seat. The passenger seats are available in a layout of 2x2. The chassis frame of this bus is box-type. The front suspension has semi-elliptical leaf springs with telescopic shock absorbers while the rear suspension has parabolic leaf springs with telescopic shock absorbers. The wheelbase size of this SML Isuzu EcoMax LR 2815 bus is 2815 mm and its tyre size is 7 R16-12PR. It offers a ground clearance of 206 mm. For other configurational features, you can go through the above table.

Frequently Asked Questions on SML Isuzu EcoMax LR 2815 : 19+D Bus

SML Isuzu EcoMax LR 2815 : 19+D bus comes with Diesel fuel option and its fuel tank capacity is 70 Litres

SML Isuzu EcoMax LR 2815 : 19+D bus comes with Hydraulic brakes# With auto slack adjuster

SML Isuzu EcoMax LR 2815 : 19+D bus can be purchased in multiple seating options depending on requirement. The seating capacity of SML Isuzu EcoMax LR 2815 : 19+D bus is 19+D seats

In terms of performance, SML Isuzu EcoMax LR 2815 : 19+D bus produces a maximum power of 100 HP @ 2600 rpm and a maximum torque of 310 Nm@1400-1600 rpm

The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of SML Isuzu EcoMax LR 2815 : 19+D bus is expected to be around Rs Not Available for a 5 year period

The tyre size of SML Isuzu EcoMax LR 2815 : 19+D bus is 7 R 16 - 12PR# 7.00x16 - 14PR (Optional)# 4+1 tyres

SML Isuzu EcoMax LR 2815 : 19+D bus comes with a standard warranty of 3 Years/Unlimited Km on engine and gearbox#2 years on vehicle

SML Isuzu EcoMax LR 2815 : 19+D bus GVW is 4500 Kg

SML Isuzu EcoMax LR 2815 : 19+D bus comes with 4 cylinder SLT6 CRDI TCIC engine and the engine displacement is 3455 cc

SML Isuzu EcoMax LR 2815 : 19+D bus comes with a 5 speed (5F+1R) transmission
