SML Isuzu S7-3940 : 30 / 37 Seater bus specifications

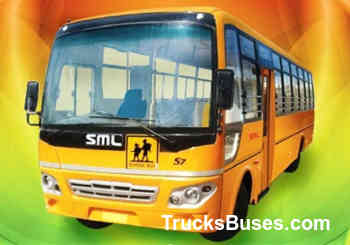

SML Isuzu S7-3940 : 30 / 37 Seater Bus Images

Rate This Vehicle

From ₹ 20.93 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on SML Isuzu S7-3940 : 30 / 37 Seater Bus for this month

SML Isuzu S7-3940 : 30 / 37 Seater - 6 Tyre Bus Highlights

Power

100

GVW

7920 Kg

Fuel

Diesel

Engine

3455 cc

Cylinders

Key Specifications of SML Isuzu S7-3940 : 30 / 37 Seater Bus

Engine
Configuration

SML Isuzu S7-3940 : 30 / 37 Seater Bus Engine
Engine
SLT6 CRDI TCIC
SML Isuzu S7-3940 : 30 / 37 Seater Bus Fuel Injection System
Fuel Injection System
Common Rail
SML Isuzu S7-3940 : 30 / 37 Seater Bus Engine Displacement
Engine Displacement
3455 cc
SML Isuzu S7-3940 : 30 / 37 Seater Bus Engine Cylinders
Engine Cylinders
4
SML Isuzu S7-3940 : 30 / 37 Seater Bus Engine Location
Engine Location
Front
SML Isuzu S7-3940 : 30 / 37 Seater Bus Power
Power
100 HP @ 2600 rpm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Torque
Torque
310 Nm@1400-1600 rpm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Clutch
Clutch
260 mm dia
SML Isuzu S7-3940 : 30 / 37 Seater Bus Transmission
Transmission
5 speed (5F+1R)
SML Isuzu S7-3940 : 30 / 37 Seater Bus Gearbox
Gearbox
Synchromesh
SML Isuzu S7-3940 : 30 / 37 Seater Bus Emission Norms Compliance
Emission Norms Compliance
BS6
SML Isuzu S7-3940 : 30 / 37 Seater Bus Fuel Type
Fuel Type
Diesel
SML Isuzu S7-3940 : 30 / 37 Seater Bus Fuel Tank Capacity
Fuel Tank Capacity
90 Litres
SML Isuzu S7-3940 : 30 / 37 Seater Bus Electricals Battery
Electricals Battery
12V, 70 Ah
55 Amps

SML Isuzu S7-3940 : 30 / 37 Seater Bus GVW
GVW
7920 Kg
SML Isuzu S7-3940 : 30 / 37 Seater Bus Seating Layout
Seating Layout
2X2
3X2
SML Isuzu S7-3940 : 30 / 37 Seater Bus Seating Capacity
Seating Capacity
30+D (2X2); 37+D (3X2)
SML Isuzu S7-3940 : 30 / 37 Seater Bus Body Structure
Body Structure
Tubular structure
SML Isuzu S7-3940 : 30 / 37 Seater Bus Passenger Door Type
Passenger Door Type
Jack-knife type
SML Isuzu S7-3940 : 30 / 37 Seater Bus Floor Type
Floor Type
Anti-skid flooring
SML Isuzu S7-3940 : 30 / 37 Seater Bus Chassis Frame
Chassis Frame
Box type
SML Isuzu S7-3940 : 30 / 37 Seater Bus Axle Configuration
Axle Configuration
4x2
SML Isuzu S7-3940 : 30 / 37 Seater Bus Front Axle
Front Axle
Forged I section, Reverse Elliot type
SML Isuzu S7-3940 : 30 / 37 Seater Bus Front Suspension
Front Suspension
Semi elliptical leaf springs
SML Isuzu S7-3940 : 30 / 37 Seater Bus Rear Suspension
Rear Suspension
Semi elliptical leaf springs
SML Isuzu S7-3940 : 30 / 37 Seater Bus Tyres
Tyres
8.25x16 - 16PR
6+1 tyres
SML Isuzu S7-3940 : 30 / 37 Seater Bus Wheelbase
Wheelbase
4240 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Turning Circle Diameter
Turning Circle Diameter
16.4 m
SML Isuzu S7-3940 : 30 / 37 Seater Bus Ground Clearance
Ground Clearance
228 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Overall Length
Overall Length
7920 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Overall Width
Overall Width
2262 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Overall Height
Overall Height
2960 mm
3060 mm (AC option)
SML Isuzu S7-3940 : 30 / 37 Seater Bus Internal Height Saloon
Internal Height Saloon
1910 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Front Overhang
Front Overhang
1180 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Rear Overhang
Rear Overhang
2364 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Front Track
Front Track
1674 mm
SML Isuzu S7-3940 : 30 / 37 Seater Bus Rear Track
Rear Track
1486 mm

SML Isuzu S7-3940 : 30 / 37 Seater Bus Specification Highlights

Check all the SML Isuzu S7-3940 : 30 / 37 Seater bus specifications here on TrucksBuses Gearbox matched with this engine is 5 speed (5F+1R) SML Isuzu S7-3940 : 30 / 37 Seater comes with a gross weight capacity of 7920 kg and length of 7920 mm For the comfortable journeys, semi elliptical leaf springs in front and semi elliptical leaf springs in rear does the duty in this SML Isuzu bus Other SML Isuzu S7-3940 : 30 / 37 Seater bus specifications like chassis, tyre, body width, turning circle dia, engine cc are available here in the tables on this page.
