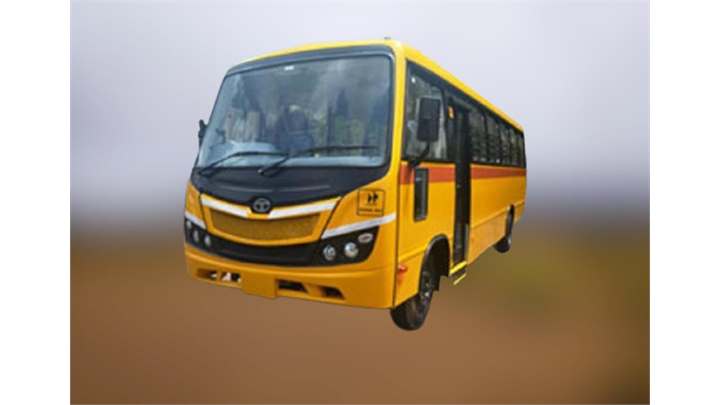

Tata LP 407 : Cityride 26 / 30 Seater Bus Specifications


Don't miss out on the best discount offers on Tata LP 407 : Cityride 26 / 30 Seater Bus for this month

Tata LP 407 : Cityride 26 / 30 Seater - 6 Tyre Bus Highlights

Power

Tata LP 407 : Cityride 26 / 30 Seater Bus Power

85
GVW

Tata LP 407 : Cityride 26 / 30 Seater Bus GVW

6520 Kg
Fuel

Tata LP 407 : Cityride 26 / 30 Seater Bus Fuel

Diesel
Engine

Tata LP 407 : Cityride 26 / 30 Seater Bus Engine

2956 cc
Cylinders

Tata LP 407 : Cityride 26 / 30 Seater Bus Cylinders

4

Key Specifications of Tata LP 407 : Cityride 26 / 30 Seater Bus

  • Engine
    4SP CR
  • Fuel Injection System
    Common Rail
  • Engine Displacement
    2956 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    85 HP@2800 rpm
  • Torque
    250 Nm@1400-2000 rpm
  • Clutch
    280 mm dia
  • Transmission
    5 speed manual (5F+1R)
  • Gearbox
    GBS 27
  • Gradeability
    23%
  • Max Speed
    110 Kmph
  • Emission Norms Compliance
    BSIV
  • Fuel Type
    Diesel
  • Fuel Tank Capacity
    60 Litres
  • Electricals Battery
    12V, 100 Ah
    65 Amps
  • GVW
    6520 Kg
  • Seating Layout
    2x2
    3x2
  • Seating Capacity
    26+D (2x2); 30+D (3x2)
  • Body Structure
    Galvanized tubular structure
  • Passenger Door Type
    One jack-knife type
  • Floor Type
    Anti-skid vinyl flooring
  • Chassis Frame
    Ladder type with cross members
  • Axle Configuration
    4x2
  • Front Axle
    Forged I section, Reverse Elliot type
  • Rear Axle
    Single speed, Hypoid gears axle
  • Front Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Parabolic leaf springs
    With telescopic shock absorbers
  • Anti Roll Bar
    Front and Rear
  • Tyres
    7.50x16 - 16PR
    6+1 tyres
  • Wheelbase
    3400 mm
  • Turning Circle Diameter
    12.3 m
  • Ground Clearance
    239 mm
  • Overall Length
    6870 mm
  • Overall Width
    2200 mm
  • Overall Height
    2900 mm
  • Front Overhang
    1430 mm
  • Rear Overhang
    2040 mm
  • Front Track
    1650 mm
  • Rear Track
    1587 mm

Tata LP 407 : Cityride 26 / 30 Seater Bus Specification Highlights

The Tata LP 407 Cityride 26 and 30-seater bus comes with a gross vehicle weight of 6520 and a seating capacity of 26 to 30 along with a driver seat. The Tata LP 407 Cityride 26 and 30-seater bus is empowered by a 4-cylinder 4SP CR powerful engine of 2956 cc displacement. It produces a power of 85 horsepower and a high-end torque of 250 Nm. The Tata LP 407 Cityride 26 and 30-seater bus is available in an axle configuration of 4x2. The power transmission of this bus is controlled by a manual 5-speed gearbox system. The front and rear suspensions are coupled with parabolic leaf springs with telescopic shock absorbers. The wheelbase size of the Tata LP 407 Cityride 26 and 30-seater bus is 3400 mm and the tyre size is 7.50x16-16PR offering a 239 mm ground clearance. It follows the BS4 emission norms. It comes with one jack-knife-type passenger door. The Tata LP 407 Cityride 26 and 30-seater bus offers a 23% gradeability. The maximum speed of the Tata LP 407 Cityride 26 and 30-seater bus is 110 kilometers per hour. It runs on diesel fuel with superior mileage. Some other specifications are described in the table above.

Frequently Asked Questions on Tata LP 407 : Cityride 26 / 30 Seater Bus

In terms of performance, Tata LP 407 : Cityride 26 / 30 Seater bus produces a maximum power of 85 HP@2800 rpm and a maximum torque of 250 Nm@1400-2000 rpm

Tata LP 407 : Cityride 26 / 30 Seater bus GVW is 6520 Kg

Tata LP 407 : Cityride 26 / 30 Seater bus can be purchased in multiple seating options depending on requirement. The seating capacity of Tata LP 407 : Cityride 26 / 30 Seater bus is 26+D (2x2); 30+D (3x2) seats

Tata LP 407 : Cityride 26 / 30 Seater bus comes with a 5 speed manual (5F+1R) transmission

Tata LP 407 : Cityride 26 / 30 Seater bus comes with 4 cylinder 4SP CR engine and the engine displacement is 2956 cc

Tata LP 407 : Cityride 26 / 30 Seater bus comes with a standard warranty of 3 Years/3 Lakh Km on driveline# 1.5 Years / 1.5 Lakh Km on body

Tata LP 407 : Cityride 26 / 30 Seater bus comes with Diesel fuel option and its fuel tank capacity is 60 Litres

The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Tata LP 407 : Cityride 26 / 30 Seater bus is expected to be around Rs Not Available for a 5 year period

The tyre size of Tata LP 407 : Cityride 26 / 30 Seater bus is 7.50x16 - 16PR# 6+1 tyres

Tata LP 407 : Cityride 26 / 30 Seater bus comes with Air brakes
