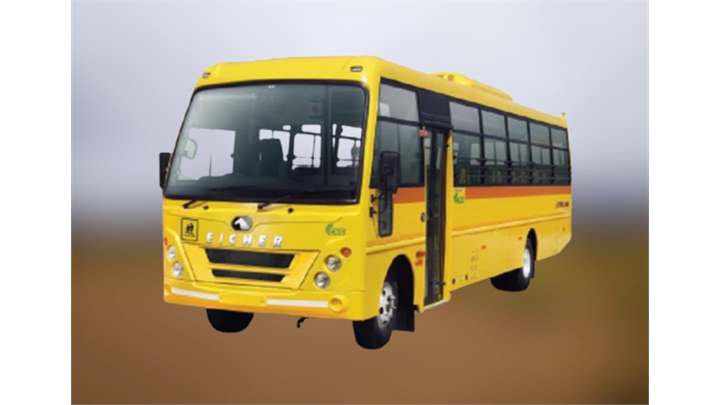

Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus Specifications

*Ex - showroom Price of Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus is 31.86-32.05 Lakh*

From ₹ 31.86-32.05 Lakh*
*Ex-showroom Price


Don't miss out on the best discount offers on Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus for this month

Eicher 2090L CNG AC : Starline School 41 / 50 Seater - 6 Tyre Bus Highlights

Power

Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus Power

115
GVW

Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus GVW

9400 Kg
Fuel

Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus Fuel

CNG
Engine

Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus Engine

3298 cc
Cylinders

Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus Cylinders

4

Key Specifications of Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus

  • Engine
    E483 TCIC
  • Engine Displacement
    3298 cc
  • Engine Cylinders
    4
  • Engine Location
    Front
  • Power
    115 HP@2600 rpm
  • Torque
    360 Nm@1600-2000 rpm
  • Clutch
    310 mm dia
  • Transmission
    5 speed (5F+1R)
  • Gearbox
    ET35S5 Synchromesh
  • Emission Norms Compliance
    BS6
  • Fuel Type
    CNG
  • Fuel Tank Capacity
    480 Litres
  • Electricals Battery
    12V, 130 Ah
    2x110 Amps
  • GVW
    9400 Kg
  • Seating Layout
    2x2
    3x2
  • Seating Capacity
    41+D (2x2)
    50+D (3x2)
  • Passenger Door Type
    One jack-knife type
  • Floor Type
    Anti-skid vinyl flooring
  • Chassis Frame
    Ladder joggle type
  • Axle Configuration
    4x2
  • Front Suspension
    Semi elliptical leaf springs
  • Rear Suspension
    Semi elliptical leaf springs
  • Anti Roll Bar
    No
  • Tyres
    8.25x16
    6+1 tyres
  • Wheelbase
    5165 mm
  • Turning Circle Diameter
    19.4 m
  • Ground Clearance
    187 mm
  • Floor Height
    885 mm
  • Overall Length
    9344 mm
  • Overall Width
    2160 mm
  • Overall Height
    3040 mm
  • Front Overhang
    1080 mm
  • Rear Overhang
    3099 mm

Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus Specification Highlights

Exploring the engine performance and body configuration of the Eicher 2090L Starline AC CNG school bus. The Eicher 2090L Starline school bus is empowered by an E483 TCIC engine displacement. Its power transmission is controlled by a 5-speed manual gearbox system. The gross weight for Eicher 2090L CNG AC Starline school 41/50 seater is 9400 kilograms. Semi-elliptical leaf springs are given for comfortable journeys on both front and rear suspensions. The fuel tank capacity of the 50-seater Eicher 2090L Starline school bus is about 480 liters. The axle configuration of this bus is available at 4x2. The body configuration has a ladder joggle-type chassis frame. Eicher 2090L CNG AC Starline school 41/50 seater bus specifications like chassis, tyre, body width, turning circle dia, engine cc are available here in the above table. The tyres and wheelbase size of this bus are 8.25x16 and 5165 mm respectively.

Frequently Asked Questions on Eicher 2090L CNG AC : Starline School 41 / 50 Seater Bus

Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus can be purchased in multiple seating options depending on requirement. The seating capacity of Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus is 41+D (2x2)# 50+D (3x2) seats

Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus comes with 4 cylinder E483 TCIC engine and the engine displacement is 3298 cc

In terms of performance, Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus produces a maximum power of 115 HP@2600 rpm and a maximum torque of 360 Nm@1600-2000 rpm

Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus comes with CNG fuel option and its fuel tank capacity is 480 Litres

The monthly EMI of any bus depends on the interest rate offered by bank, down payment made by the buyer and the loan tenure. Considering a 10% down payment and 9.5% rate of interest, the EMI of Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus is expected to be around Rs 67693 for a 5 year period

The tyre size of Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus is 8.25x16# 6+1 tyres

Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus comes with a 5 speed (5F+1R) transmission

Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus price starts from Rs 31.86-32.05 Lakh*. The 2024 price of Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus can vary slightly from state to state and city to city.

Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus GVW is 9400 Kg

Eicher 2090L CNG AC : Starline School 41 / 50 Seater bus comes with Air brakes
