Compare Ashok Leyland TF 2012 vs Ashok Leyland CH 2008.4
Compare Ashok Leyland TF 2012 vs Ashok Leyland CH 2008 4
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4399_Ashok-Leyland-TF-2012-Bus-Chassis-bs6.jpg]()
Ashok Leyland TF 2012
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4398_8d97e0dd86c847eaba536d2df5912e7c4404_Ashok-Leyland-viking-vk-2010-9-Bus-chassis-bs6-removebg-preview.png]()

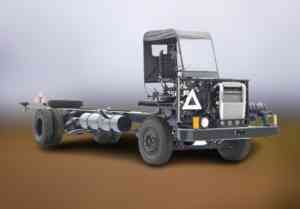

Ashok Leyland CH 2008.4
-
Overviewof Ashok Leyland TF 2012 vs Ashok Leyland CH 2008 4
-
Power
200 HP@2400 rpm
200 HP@2400 rpm
-
Torque
700 Nm@1200-1900 rpm
700 Nm@1200-1900 rpm
-
Engine
H series CRS iGen6 technology
H series CRS iGen6 technology
-
GVW (Kg)
16200 Kg
16200 Kg
-
Over All Length
11765 mm
8110 mm
-
Service Interval
80,000 Km (Oil change)
80,000 Km (Oil change)
-
Additional
Gear Shift Advisor
Gear Shift Advisor
-
Engine & Performanceof Ashok Leyland TF 2012 vs Ashok Leyland CH 2008 4
-
Engine
H series CRS iGen6 technology
H series CRS iGen6 technology
-
Power
200 HP@2400 rpm
200 HP@2400 rpm
-
Torque
700 Nm@1200-1900 rpm
700 Nm@1200-1900 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
5660 cc
5660 cc
-
Cylinders
6
6
-
Engine Location
Front
Front
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Gearbox
Synchromesh Cable shift
Synchromesh Cable shift
-
Clutch
380 mm dia With clutch booster
380 mm dia With clutch booster
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
350 Litres (Diesel) 24 Litres (Ad Blue)
185 Litres (Diesel) 24 Litres (Ad Blue)
-
Battery
24V-150 / 200 Ah Alternator: 85 / 100 Amps
24V-150 Ah, 85 Amps
-
Design & Configurationof Ashok Leyland TF 2012 vs Ashok Leyland CH 2008 4
-
Variants
Chassis without face-cowl
Chassis without face-cowl
-
GVW
16200 Kg
16200 Kg
-
Axle Configuration
4x2
4x2
-
Chassis Frame
Ladder type, Bolted construction
Ladder type, Bolted construction
-
Rear Axle
Single speed hypoid Fully floating Unitized bearing (Optional)
Single speed hypoid Fully floating
-
Front Suspension
Rubber ended leaf springs Air (Optional)
Shackle ended leaf springs
-
Rear Suspension
Rubber ended leaf springs Air (Optional)
Shackle ended leaf springs Air (Optional)
-
Tyres
295/80 R22.5 Tubeless radial
10R20 - 16 PR
-
Wheelbase
6000 mm
4200 mm
-
Turning Circle Diameter
20.6 m
15.3 m
-
Overall Length
11765 mm
8110 mm
-
Front Overhang
2265 mm
1484 mm
-
Rear Overhang
3500 mm
2426 mm
-
Features & Comfortof Ashok Leyland TF 2012 vs Ashok Leyland CH 2008 4
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Instrument cluster
Digital With mileage indicator
Digital With mileage indicator
-
Automatic Transmission
Key Comparison of Ashok Leyland TF 2012 vs Ashok Leyland CH 2008.4
Compare Ashok Leyland TF 2012 bus vs Ashok Leyland CH 2008.4 bus in detail at TrucksBuses.com ! Ashok Leyland TF 2012 bus with 5660 cc H series CRS# iGen6 technology engine gives a power of 200 HP@2400 rpm whereas Ashok Leyland CH 2008.4 bus produces 200 HP@2400 rpm of power and comes with a 5660 cc engine. The fuel tank capacity of Ashok Leyland TF 2012 bus is 350 Litres (Diesel)# 24 Litres (Ad Blue) whereas Ashok Leyland CH 2008.4 bus is 185 Litres (Diesel)# 24 Litres (Ad Blue). You can check detailed bus comparison of Ashok Leyland TF 2012 bus and Ashok Leyland CH 2008.4 bus on the basis of engine, specifications, seating capacity, price, mileage and features.
