Compare Eicher 2070 E vs Tata LP 412/36
Compare Eicher 2070 E vs tata lp 412 36 bus chassis
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4192_1f9698f2dbc2413eb90cdb900d83e4294192_Eicher-2070-E-Bus-Chassis-.png]()
Eicher 2070 E
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21649_5fe4b28f7c9b4031b7328dd6c42d8c90Tata-LP-412-36-Chassis.jpg]()

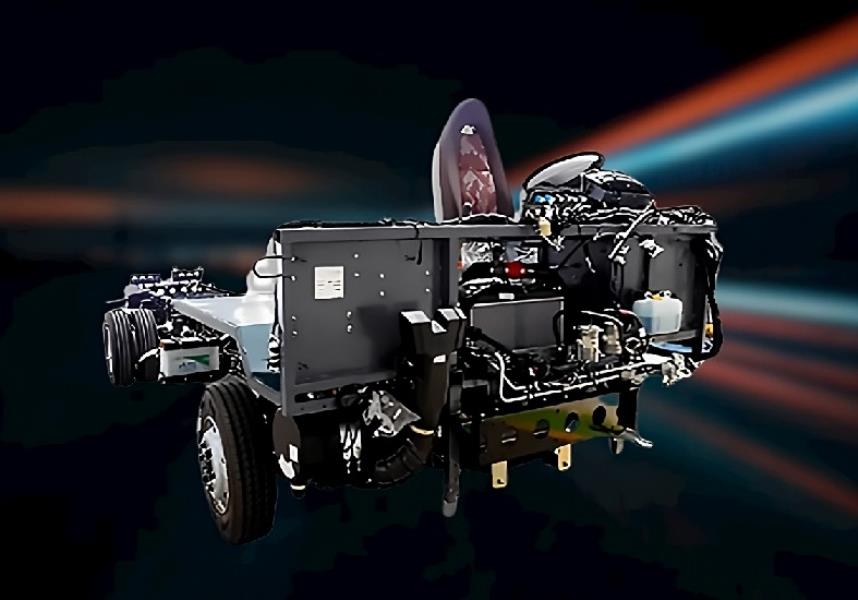

Tata LP 412/36
Overviewof
| Overall Length |
6534 mm |
7190 mm |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Power |
120 HP@3200 rpm (Non AC)
140 HP@3200 rpm (AC) |
125 HP@2800 rpm |
|
| Torque |
350 Nm@1250-2500 rpm (Non AC)
400 Nm@1200-2500 rpm (AC) |
350 Nm@1400-2400 rpm |
|
| Transmission |
5 speed manual (5F+1R) |
N/A |
|
| Variants |
Chassis without face-cowl |
Chassis without face-cowl |
|
| Suitable Applications |
School, Staff, Tourist, City bus |
School, Staff, City bus |
|
Engine & Performanceof
| Fuel Injection System |
Common rail |
Common Rail |
|
| Engine Displacement |
3000 cc |
2956 cc |
|
| Engine Location |
Front |
Front |
|
| Power |
120 HP@3200 rpm (Non AC)
140 HP@3200 rpm (AC) |
125 HP@2800 rpm |
|
| Torque |
350 Nm@1250-2500 rpm (Non AC)
400 Nm@1200-2500 rpm (AC) |
350 Nm@1400-2400 rpm |
|
| Clutch |
310 mm dia |
310 mm dia |
|
| Transmission |
5 speed manual (5F+1R) |
N/A |
|
| Gearbox |
ET35S5 Synchromesh |
GB400 with cable shift |
|
| Emission Norms Compliance |
BS6 |
BS6 OBD2 |
|
| Fuel Tank Capacity |
100 Litres |
90 Litres |
|
| Electricals Battery |
12V, 130 Ah |
12V, 75 Ah
65 Amps |
|
Design & Configurationof
| Overall Length |
6534 mm |
7190 mm |
|
| Vehicle Configuration |
Chassis without face-cowl |
Chassis without face-cowl |
|
| Chassis Frame |
Domex frame |
N/A |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Suspension |
Semi elliptical leaf springs |
Parabolic Suspension |
|
| Rear Suspension |
Semi elliptical leaf springs |
Parabolic Suspension |
|
| Tyres |
7.50x16 - 16PR
6+1 tyres |
275/75R17.5 |
|
| Wheelbase |
3515 mm |
3600 mm |
|
| Turning Circle Diameter |
13.1 m |
N/A |
|
| Ground Clearance |
187 mm |
N/A |
|
| Front Overhang |
1024 mm |
N/A |
|
| Rear Overhang |
1995 mm |
N/A |
|
Features & Comfortof
| Driver Seat |
4 way adjustable |
4 way adjustable |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and Telescopic |
|
| Instrument Cluster |
Digital instrument cluster |
Analog
With LED display |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes |
Air brakes |
|
Key Comparison of Eicher 2070 E vs Tata LP 412/36
Compare Eicher 2070 E bus vs Tata LP 412/36 bus in detail at TrucksBuses.com ! Eicher 2070 E bus with engine gives a power of whereas Tata LP 412/36 bus produces of power and comes with a engine. The fuel tank capacity of Eicher 2070 E bus is whereas Tata LP 412/36 bus is . You can check detailed bus comparison of Eicher 2070 E bus and Tata LP 412/36 bus on the basis of engine, specifications, seating capacity, price, mileage and features.
