Compare Tata LP 1618 5L vs Tata LPO 1618
Compare Tata LP 1618 5L vs tata lpo 1618

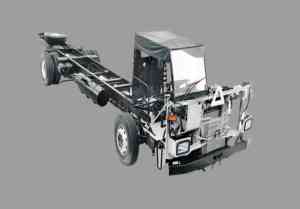

![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4402_45530bb71232482089354de8ca938c264402_Tata-LP-1618-Bus-chassis-removebg-preview.png]()
Tata LP 1618 5L
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/155_fcc106024e324992a467568e558081764402_Tata-LP-1618-Bus-chassis (1).png]()
Tata LPO 1618
-
Overviewof
-
Overall Length
8070 mm (4400 wb)# 9515 m (5300 wb)
10815 mm (5700 wb)# 11865 m (6200 wb)
-
GVW (Kg)
16200 Kg
16200 Kg
-
Axle Configuration
4x2
4x2
-
Engine
NG 5L Turbotronn
Cummins B 5.6L
-
Power
177 HP@2300 rpm
186 HP@2300 rpm
-
Torque
590 Nm@1000-2000 rpm
850 Nm@1000-1600 rpm
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Variants
Chassis without face-cowl
Chassis without face-cowl
-
Suitable Applications
Stage carriage, Intercity
Stage carriage, Intercity
-
Additional
Gear shift advisor# Fuel economy switch
Gear shift advisor# Fuel economy switch
-
Engine & Performanceof
-
Engine
NG 5L Turbotronn
Cummins B 5.6L
-
Fuel Injection System
Common Rail
Common Rail
-
Engine Displacement
5005 cc
5635 cc
-
Engine Cylinders
4
6
-
Engine Location
Front
Front
-
Power
177 HP@2300 rpm
186 HP@2300 rpm
-
Torque
590 Nm@1000-2000 rpm
850 Nm@1000-1600 rpm
-
Clutch
352 mm dia
380 mm dia
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Gearbox
G750 OD
G750 OD
-
Max Speed
80 Kmph
80 Kmph
-
Emission Norms Compliance
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
160 Litres (4400 wb)# 250 Litres (5300 wb)
250 Litres (5700 wb)# 350 Litres (6200 wb)
-
Electricals Battery
2x12 Volts, 150 Ah# Alternator: 80 Amps
2x12 Volts, 150 Ah# Alternator: 90 Amps
-
Design & Configurationof
-
GVW
16200 Kg
16200 Kg
-
Overall Length
8070 mm (4400 wb)# 9515 m (5300 wb)
10815 mm (5700 wb)# 11865 m (6200 wb)
-
Overall Width
2585 mm
2585 mm
-
Vehicle Configuration
Chassis without face-cowl
Chassis without face-cowl
-
Chassis Frame
Ladder type
Ladder type
-
Axle Configuration
4x2
4x2
-
Rear Axle
Single speed hypoid# Fully floating
Single speed hypoid# Fully floating
-
Front Suspension
Semi elliptical leaf springs
Weveller# Air (Optional)
-
Rear Suspension
Semi elliptical leaf springs
Weveller# Air (Optional)
-
Tyres
295/80 R22.5# Tubeless radial
295/80 R22.5# Tubeless radial
-
Wheelbase
4400 mm# 5300 mm
5700 mm# 6200 mm
-
Turning Circle Diameter
17.2 m (4400 wb)# 20.3 m (5300 wb)
19.4 m (5700 wb)# 21.1 m (6200 wb)
-
Front Overhang
1185 mm
1845 mm (5700 wb)# 2265 mm (6200 wb)
-
Rear Overhang
2485 mm (4400 wb)# 3030 mm (5300 wb)
3270 mm (5700 wb)# 3400 mm (6200 wb)
-
Safetyof
-
Service Brakes
Air brakes
Air brakes
-
ABS
Yes
Yes
-
Tubeless Tyres
Yes
Yes
-
Retarder
No
Optional
-
Reverse Parking_Buzzer
Yes
Yes
Key Comparison of Tata LP 1618 5L vs Tata LPO 1618
Compare Tata LP 1618 5L bus vs Tata LPO 1618 bus in detail at TrucksBuses.com ! Tata LP 1618 5L bus with engine gives a power of whereas Tata LPO 1618 bus produces of power and comes with a engine. The fuel tank capacity of Tata LP 1618 5L bus is whereas Tata LPO 1618 bus is . You can check detailed bus comparison of Tata LP 1618 5L bus and Tata LPO 1618 bus on the basis of engine, specifications, seating capacity, price, mileage and features.
