Compare Tata LP 710/45 vs Tata LP 410/36 CNG
Compare Tata LP 710 45 vs tata lp 410 36 cng bus chassis
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4208_97ccb783de7b4c7ea0a9e1a9d9d8e1184208_704bd603cb4348f38284540e9573b8e7tata_LP_410_710_810_912_bus_chassis-removebg-preview.png]()
Tata LP 710/45
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21657_5d467992def24135b482903a5ece1183Tata-LP-410-36-CNG-CHASSIS.jpg]()

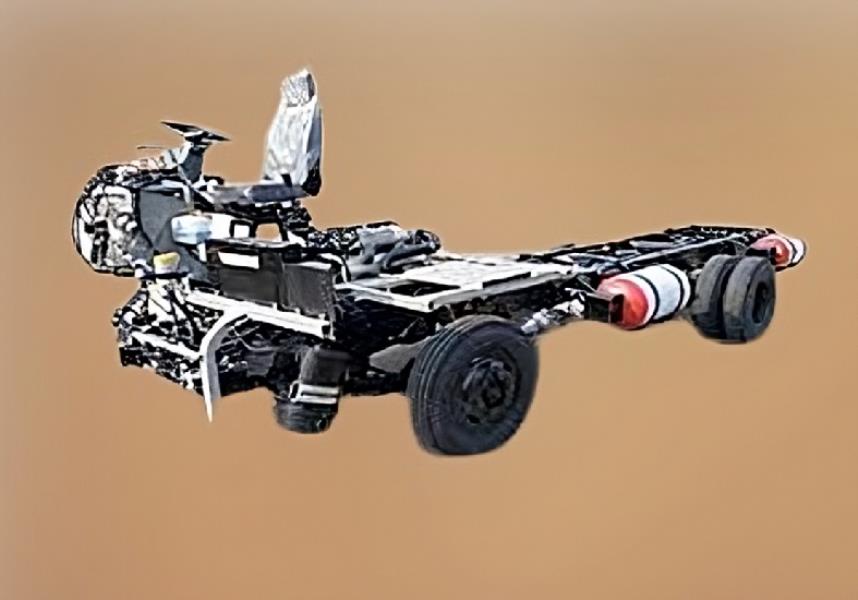

Tata LP 410/36 CNG
Overviewof
| Overall Length |
8630 mm |
7190 mm |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Engine |
4SP CR |
3.8 SGI NA BS6 Engine |
|
| Power |
99 HP@2800 rpm |
85 HP@2500 rpm |
|
| Torque |
300 Nm@1400-2200 rpm |
250 Nm@1200-1600 rpm |
|
| Transmission |
5 speed (5F+1R) |
N/A |
|
| Variants |
Chassis without face-cowl |
Chassis without face-cowl |
|
| Suitable Applications |
School, Staff, City bus |
School, Staff, City bus |
|
| Additional |
Gear shift advisor
Fuel economy switch |
N/A |
|
Engine & Performanceof
| Engine |
4SP CR |
3.8 SGI NA BS6 Engine |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
2956 cc |
3783 cc |
|
| Engine Location |
Front |
Front |
|
| Power |
99 HP@2800 rpm |
85 HP@2500 rpm |
|
| Torque |
300 Nm@1400-2200 rpm |
250 Nm@1200-1600 rpm |
|
| Clutch |
280 mm dia |
280 mm dia
Single plate dry type |
|
| Transmission |
5 speed (5F+1R) |
N/A |
|
| Gearbox |
GB 400
Cable Shift |
GB400 with cable shift |
|
| Emission Norms Compliance |
BS6 |
BS6 OBD2 |
|
| Fuel Tank Capacity |
120 Litres |
360 Litres |
|
| Electricals Battery |
12V-100 Ah, 75 Amp |
12V, 75 Ah
65 Amps |
|
Design & Configurationof
| Overall Length |
8630 mm |
7190 mm |
|
| Vehicle Configuration |
Chassis without face-cowl |
Chassis without face-cowl |
|
| Chassis Frame |
Ladder type |
N/A |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic Suspension |
|
| Rear Suspension |
Parabolic leaf springs |
Parabolic Suspension |
|
| Tyres |
225/75 R17.5
Tubeless radial |
215/75R17.5 |
|
| Wheelbase |
4500 mm |
3600 mm |
|
| Turning Circle Diameter |
14.6 m |
N/A |
|
| Front Overhang |
1430 mm |
N/A |
|
| Rear Overhang |
2700 mm |
N/A |
|
Features & Comfortof
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and Telescopic |
|
| Instrument Cluster |
Digital
With mileage indicator
Distance to empty |
Analog
With LED display |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes |
Air brakes |
|
| Reverse Parking_Buzzer |
Yes |
Yes |
|
Key Comparison of Tata LP 710/45 vs Tata LP 410/36 CNG
Compare Tata LP 710/45 bus vs Tata LP 410/36 CNG bus in detail at TrucksBuses.com ! Tata LP 710/45 bus with engine gives a power of whereas Tata LP 410/36 CNG bus produces of power and comes with a engine. The fuel tank capacity of Tata LP 710/45 bus is whereas Tata LP 410/36 CNG bus is . You can check detailed bus comparison of Tata LP 710/45 bus and Tata LP 410/36 CNG bus on the basis of engine, specifications, seating capacity, price, mileage and features.
