Compare Buses > Tata Starbus School LP 909 CNG: 52 Seater vs Tata LP 909 CNG : Starbus Skool 40 / 50 Seater
Compare Tata Starbus School LP 909 CNG: 52 Seater vs Tata LP 909 CNG : Starbus Skool 40 / 50 Seater
Compare Tata Starbus School LP 909 CNG 52 Seater vs tata lp 909 cng starbus skool 40 50 seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4413_fda5d7a36e6e40998b494829875e906d4426_d06db1f6a7ab4a47a510aa5c09bdf405tata-starbus-school-bus-407-410-710-810-bus-removebg-preview (3).png]()
Tata Starbus School LP 909 CNG: 52 Seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/62_bf6dae85db704d098287199b7c2526eeTata_Starbus_Marcopolo_school_Bus_LP_410_LP_407_LP_709_LP_909_LP_712_LP_912_LP_91378-.png]()

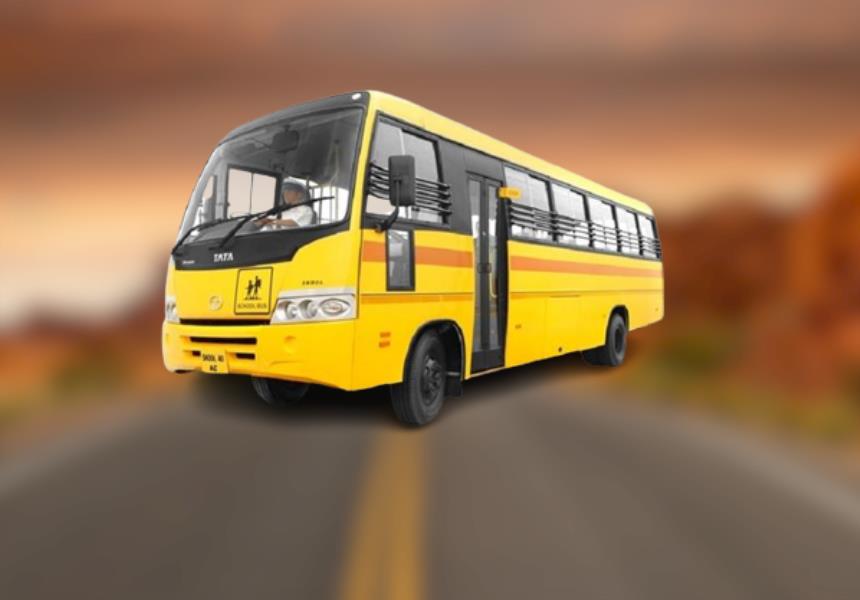

Tata LP 909 CNG : Starbus Skool 40 / 50 Seater
-
Overviewof
-
Seating Capacity
52+D
40+D (2X2); 50+D (3X2)
-
Engine
Tata 3.8 SGI# Naturally Aspirated
Tata 3.8 SGI# With Skip Fire Technology
-
Power
83 HP@2500 rpm
85 HP@2500 rpm
-
Torque
285 Nm@1200-1500 rpm
270 Nm@1500-1800 rpm
-
GVW (Kg)
9600 Kg
9400 Kg
-
School, Colleges
Schools and colleges
-
Warranty
5 Years / 5 Lakh Km on driveline
3 Years/3 Lakh Km on driveline# 1.5 Years / 1.5 Lakh Km on body
-
Service Interval
20,000 Km (Oil change)
20,000 Km
-
Engine & Performanceof
-
Engine
Tata 3.8 SGI# Naturally Aspirated
Tata 3.8 SGI# With Skip Fire Technology
-
Fuel Injection System
Sequential Gas Injection
Sequential Gas Injection
-
Engine Displacement
3783 cc
3783 cc
-
Engine Cylinders
4
4
-
Engine Location
Front
Front
-
Power
83 HP@2500 rpm
85 HP@2500 rpm
-
Torque
285 Nm@1200-1500 rpm
270 Nm@1500-1800 rpm
-
Clutch
280 mm dia
280 mm dia
-
Transmission
5 speed (5F+1R)
5 speed manual (5F+1R)
-
Gearbox
GB 400# Cable Shift
GBS 27, Synchromesh
-
Max Speed
N/A
84 Kmph
-
Emission Norms Compliance
BS6
BSIV
-
Fuel Type
CNG
CNG
-
Fuel Tank Capacity
636 Litres
480 Litres
-
Electricals Battery
12V-120 Ah, 120 Amp
12V, 150 Ah# 65 Amps
-
Design & Configurationof
-
GVW
9600 Kg
9400 Kg
-
Seating Layout
3x2
2X2#3X2
-
Seating Capacity
52+D
40+D (2X2); 50+D (3X2)
-
Body Structure
N/A
Galvanized tubular structure
-
Passenger Door Type
Jack knife type
One jack-knife type
-
Floor Type
Anti skid vinyl
Chequered flooring
-
Chassis Frame
Ladder type
Ladder type with cross members
-
Axle Configuration
4x2
4x2
-
Front Axle
Forged I section, Reverse Elliot type
Forged I section, Reverse Elliot type
-
Rear Axle
N/A
Single speed, Hypoid gears axle
-
Front Suspension
Parabolic leaf springs
Semi-elliptical leaf springs# With telescopic shock absorbers
-
Rear Suspension
Parabolic leaf springs
Semi-elliptical leaf springs# With telescopic shock absorbers
-
Anti Roll Bar
Yes
Front and Rear
-
Tyres
235/75 R17.5# Tubeless radial
8.25x16 - 16 PR# 6+1 tyres
-
Wheelbase
5200 mm
4920 mm
-
Turning Circle Diameter
17.5 m
17.5 m
-
Ground Clearance
N/A
223 mm
-
Floor Height
N/A
930 mm
-
Overall Length
9750 mm
9300 mm
-
Overall Width
2340 mm
2200 mm
-
Overall Height
2910 mm
2870 mm
-
Front Overhang
1430 mm
1275 mm
-
Rear Overhang
2950 mm
2700 mm
-
Front Track
N/A
1665 mm
-
Rear Track
N/A
1660 mm
-
Features & Comfortof
-
Steering
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Rigid
-
Instrument Cluster
Digital# With mileage indicator# Distance to empty
Analog# With LED display
-
Automatic Transmission
No
No
-
Telematics
Optional
No
-
Air Conditioner (AC)
No
No
-
Quarter Ventilation Glass
N/A
Yes
-
Sun Visor
N/A
Flap type
-
Front Windshield
Single piece laminated glass
Single piece laminated glass
-
Rear_Windshield
Single piece tempered glass
Single piece tempered glass
-
Side Windows
Sliding glass
Sliding glass
-
Hatrack
Tubular
Tubular
-
Passenger Seat
Bench seats
Bench seats
-
Arm Rests
Available on each seat
Available on each seat
-
AC Vents
N/A
NA
-
Bottle Holder
Available on each seat
Available on each seat
-
Bell Switch
1 no. on stanchion pipe
1 no. on stanchion pipe
-
Saloon Light
LED lights
LED lights
-
Step Lamp
Yes
Yes
-
Luggage Space
N/A
No
-
Safetyof
-
Service Brakes
Air brakes
Air brakes
-
ABS
Yes
Yes
-
Anti Roll Bar
Yes
Front and Rear
-
Seat Belts
Flap type on front seats
Flap type on front seats
-
Window Guardrail
Yes
Yes
-
Guide Grab Rail
Yes
Yes
-
Driver Area Partition
N/A
Partition with MS pipe
-
Door Alarm
Yes
Yes
-
Roof Hatch
No
No
-
Fire Extinguisher
Yes
Yes
-
First Aid Box
Yes
Yes
-
Peep Window
Yes
Yes
-
Step Lamp
Yes
Yes
-
Fog Light
N/A
Provision
-
Tubeless Tyres
Yes
No
-
Retarder
No
No
Key Comparison of Tata Starbus School LP 909 CNG: 52 Seater vs Tata LP 909 CNG : Starbus Skool 40 / 50 Seater
Compare Tata Starbus School LP 909 CNG: 52 Seater bus vs Tata LP 909 CNG : Starbus Skool 40 / 50 Seater bus in detail at TrucksBuses.com ! Tata Starbus School LP 909 CNG: 52 Seater bus with engine gives a power of whereas Tata LP 909 CNG : Starbus Skool 40 / 50 Seater bus produces of power and comes with a engine. The fuel tank capacity of Tata Starbus School LP 909 CNG: 52 Seater bus is whereas Tata LP 909 CNG : Starbus Skool 40 / 50 Seater bus is . You can check detailed bus comparison of Tata Starbus School LP 909 CNG: 52 Seater bus and Tata LP 909 CNG : Starbus Skool 40 / 50 Seater bus on the basis of engine, specifications, seating capacity, price, mileage and features.
