Compare Ashok Leyland Lynx Smart 5200 : 45 / 54 / 65 Seater vs BharatBenz 1017 : School 39 / 49 Seater
Compare ashok leyland lynx smart 5200 45 54 65 seater vs bharatbenz 1017 school 39 49 seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Ashok Leyland Lynx Smart School Bus51.jpg]()

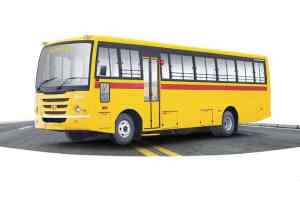

Ashok Leyland Lynx Smart 5200 : 45 / 54 / 65 Seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4297_Bharat-Benz-1017-AC-39-49-seater-school-bus.jpg]()
BharatBenz 1017 : School 39 / 49 Seater
-
Overviewof
-
Seating Capacity
45+D (2X2); 54+D (3X2); 65+D (3X3)
39+D (2x2)# 49+D (3x2)
-
Engine
H-Series CRS# With iEGR Technology
4D34i CRDI
-
Power
127 HP@2400 rpm
170 HP
-
Torque
450 Nm@1400-2000 rpm
520 Nm@1500 rpm
-
GVW (Kg)
10000 Kg
10600 Kg
-
Schools and colleges
School, Colleges
-
Warranty
4 Years / 4 Lakh Km on driveline
3 Years / 3 Lakh Km
-
Service Interval
40,000 Km
40,000 Km (Oil change)
-
Engine & Performanceof
-
Engine
H-Series CRS# With iEGR Technology
4D34i CRDI
-
Fuel Injection System
Common Rail
Unitised fuel injection pump
-
Engine Displacement
3839 cc
3907 cc
-
Engine Cylinders
4
4
-
Engine Location
Front
Front
-
Power
127 HP@2400 rpm
170 HP@2500 rpm
-
Torque
450 Nm@1400-2000 rpm
520 Nm@1500 rpm
-
Clutch
330 mm dia# With clutch booster
325 mm dia# Organic
-
Transmission
5 speed manual (5F+1R)
6 speed manual (6F+1R)# With overdrive gear
-
Gearbox
Synchromesh
M036, Synchromesh type# Cable shift
-
Emission Norms Compliance
BSIV
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
115 Litres
Diesel: 160 Litres# Ad Blue: 43 Litres
-
Electricals Battery
12V, 130 Ah
2x12V, 120 Ah
-
Design & Configurationof
-
GVW
10000 Kg
10600 Kg
-
Seating Layout
2X2#3X2#3X3
2x2# 3x2
-
Seating Capacity
45+D (2X2); 54+D (3X2); 65+D (3X3)
39+D (2x2)# 49+D (3x2)
-
Body Structure
N/A
Aluminique body structure
-
Passenger Door Type
One jack-knife type
In-swing, Automatic
-
Floor Type
Anti-skid vinyl flooring
Anti skid vinyl
-
Chassis Frame
N/A
Ladder type channel with cross members
-
Axle Configuration
4x2
4x2
-
Rear Axle
N/A
Fully Floating Type
-
Front Suspension
Parabolic leaf springs# With telescopic shock absorbers
Parabolic leaf springs# With telescopic shock absorbers
-
Rear Suspension
Parabolic leaf springs# With telescopic shock absorbers
Parabolic leaf springs# With telescopic shock absorbers
-
Anti Roll Bar
Front and Rear
Front and Rear
-
Tyres
8.25x16 - 16PR# 6+1 tyres
235/75 R17.5# Tubeless radial# 6+1 tyres
-
Wheelbase
5200 mm
5300 mm
-
Turning Circle Diameter
N/A
18.6 m
-
Ground Clearance
200 mm
192 mm
-
Overall Length
10320 mm
9787 mm
-
Overall Width
2350 mm
2350 mm
-
Front Overhang
1980 mm
1323 mm
-
Rear Overhang
3120 mm
3164 mm
-
Front Track
N/A
1790 mm
-
Rear Track
N/A
1690 mm
-
Features & Comfortof
-
Driver Seat
N/A
4 way adjustable
-
Steering
Power Steering
Power Steering
-
Steering Adjustment
Rigid
Tilt and telescopic
-
Instrument Cluster
Analog# With LED display
Digital instrument cluster
-
Automatic Transmission
No
No
-
Telematics
No
Yes
-
Air Conditioner (AC)
No
Yes
-
Quarter Ventilation Glass
Yes
Yes
-
Sun Visor
Roll down type
Roll down type
-
Front Windshield
Single piece laminated glass
Single piece laminated glass
-
Rear_Windshield
Single piece tempered glass
Single piece tempered glass
-
Side Windows
Sliding glass
Pasted
-
Hatrack
Tubular
Modular
-
Passenger Seat
Bench seats
Bench seats (3x2)# High back (Optional in 2x2)
-
Arm Rests
Available on front seats
Available on each seat
-
AC Vents
NA
Free flow
-
Bottle Holder
N/A
Available on each seat
-
Music System
N/A
Optional fitment
-
Bell Switch
N/A
1 no. on stanchion pipe
-
Saloon Light
Yes
LED lights
-
Step Lamp
Yes
Yes
-
Safetyof
-
Service Brakes
Air brakes
Air brakes
-
ABS
Yes
Yes
-
Anti Roll Bar
Front and Rear
Front and Rear
-
Grab Handle
N/A
Available on each seat
-
Window Guardrail
Yes
No
-
Guide Grab Rail
Yes
Yes
-
Driver Area Partition
Partition with MS Pipe
Guarded driver area
-
Door Alarm
Yes
Yes
-
Roof Hatch
No
Yes
-
Fire Extinguisher
Yes
Yes
-
First Aid Box
Yes
Yes
-
Peep Window
Yes
No
-
Step Lamp
Yes
Yes
-
Fog Light
Provision
No
-
Tubeless Tyres
No
Yes
-
Retarder
No
No
Key Comparison of Ashok Leyland Lynx Smart 5200 : 45 / 54 / 65 Seater vs BharatBenz 1017 : School 39 / 49 Seater
Compare Ashok Leyland Lynx Smart 5200 : 45 / 54 / 65 Seater bus vs BharatBenz 1017 : School 39 / 49 Seater bus in detail at TrucksBuses.com ! Ashok Leyland Lynx Smart 5200 : 45 / 54 / 65 Seater bus with engine gives a power of whereas BharatBenz 1017 : School 39 / 49 Seater bus produces of power and comes with a engine. The fuel tank capacity of Ashok Leyland Lynx Smart 5200 : 45 / 54 / 65 Seater bus is whereas BharatBenz 1017 : School 39 / 49 Seater bus is . You can check detailed bus comparison of Ashok Leyland Lynx Smart 5200 : 45 / 54 / 65 Seater bus and BharatBenz 1017 : School 39 / 49 Seater bus on the basis of engine, specifications, seating capacity, price, mileage and features.
