Compare BharatBenz 1017 vs BharatBenz 1014

Compare bharatbenz 1017 vs bharatbenz 1014


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4277_Bharat-benz-1017-bus-chassis.jpg

BharatBenz 1017

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4616_4fcf8e776c3e44f7948ec819db55dc9e4616_4443be6bd7134c23930d48e8b4626708Bharat-benz-1014-bus-chassis-removebg-preview.png

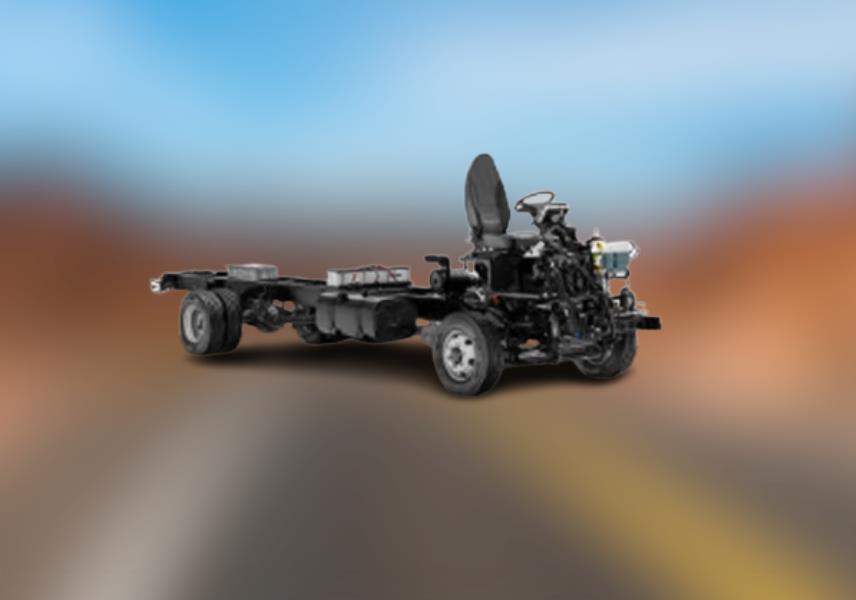

BharatBenz 1014


  • Overviewof

  • Overall Length
    8493 mm
    8493 mm
  • GVW (Kg)
    10600 Kg
    10600 Kg
  • Axle Configuration
    4x2
    4x2
  • Engine
    4D34i CRDI
    4D34i CRDI
  • Power
    170 HP@2500 rpm
    147 HP@2500 rpm
  • Torque
    520 Nm@1500 rpm
    460 Nm@1500 rpm
  • Transmission
    6 speed manual (6F+1R)# With overdrive gear
    6 speed (6F+1R)# With overdrive gear
  • Variants
    Chassis without face-cowl
    Chassis without face-cowl
  • Suitable Applications
    School, Staff, Tourist
    School, Staff
  • Warranty
    3 Years / 3 Lakh Km
    3 Years / 3 Lakh Km
  • Service Interval
    40,000 Km (Oil change)
    40,000 Km (Oil change)
  • Additional
    AC Compressor (TM43)
    N/A
  • Engine & Performanceof

  • Engine
    4D34i CRDI
    4D34i CRDI
  • Fuel Injection System
    Unitised fuel injection pump
    Unitised fuel injection pump
  • Engine Displacement
    3907 cc
    3907 cc
  • Engine Cylinders
    4
    4
  • Engine Location
    Front
    Front
  • Power
    170 HP@2500 rpm
    147 HP@2500 rpm
  • Torque
    520 Nm@1500 rpm
    460 Nm@1500 rpm
  • Clutch
    325 mm dia# Organic
    330 mm dia# Organic
  • Transmission
    6 speed manual (6F+1R)# With overdrive gear
    6 speed (6F+1R)# With overdrive gear
  • Gearbox
    M036, Synchromesh type# Cable shift
    M036, Synchromesh type# Cable shift
  • Max Speed
    80 Kmph
    80 Kmph
  • Emission Norms Compliance
    BS6
    BS6
  • Fuel Type
    Diesel
    Diesel
  • Fuel Tank Capacity
    Diesel: 160 Litres# Ad Blue: 43 Litres
    Diesel: 160 Litres# Ad Blue: 43 Litres
  • Electricals Battery
    2x12V, 120 Ah
    2x12V, 75 Ah
  • Design & Configurationof

  • GVW
    10600 Kg
    10600 Kg
  • Overall Length
    8493 mm
    8493 mm
  • Overall Width
    2199 mm
    2199 mm
  • Vehicle Configuration
    Chassis without face-cowl
    Chassis without face-cowl
  • Chassis Frame
    Ladder type channel with cross members
    Ladder type channel with cross members
  • Axle Configuration
    4x2
    4x2
  • Rear Axle
    Fully Floating Type
    Fully Floating Type
  • Front Suspension
    Parabolic leaf springs# With telescopic shock absorbers
    Parabolic leaf springs# With telescopic shock absorbers
  • Rear Suspension
    Parabolic leaf springs# With telescopic shock absorbers
    Parabolic leaf springs# With telescopic shock absorbers
  • Anti Roll Bar
    Front and Rear
    Front and Rear
  • Tyres
    235/75 R17.5# Tubeless radial# 6+1 tyres
    235/75 R17.5# Tubeless radial# 6+1 tyres
  • Wheelbase
    5300 mm
    5300 mm
  • Turning Circle Diameter
    18.6 m
    18.6 m
  • Ground Clearance
    192 mm
    192 mm
  • Front Overhang
    1193 mm
    1193 mm
  • Rear Overhang
    2000 mm
    2000 mm
  • Front Track
    1790 mm
    1790 mm
  • Rear Track
    1690 mm
    1690 mm
  • Features & Comfortof

  • Driver Seat
    4 way adjustable
    4 way adjustable
  • Steering
    Power Steering
    Power Steering
  • Steering Adjustment
    Tilt and telescopic
    Tilt and telescopic
  • Instrument Cluster
    Digital instrument cluster
    Digital instrument cluster
  • Automatic Transmission
    No
    No
  • Safetyof

  • Service Brakes
    Air brakes
    Air brakes
  • ABS
    Yes
    Yes
  • Anti Roll Bar
    Front and Rear
    Front and Rear
  • Tubeless Tyres
    Yes
    Yes
  • Retarder
    No
    No

Key Comparison of BharatBenz 1017 vs BharatBenz 1014

Compare BharatBenz 1017 bus vs BharatBenz 1014 bus in detail at TrucksBuses.com ! BharatBenz 1017 bus with engine gives a power of whereas BharatBenz 1014 bus produces of power and comes with a engine. The fuel tank capacity of BharatBenz 1017 bus is whereas BharatBenz 1014 bus is . You can check detailed bus comparison of BharatBenz 1017 bus and BharatBenz 1014 bus on the basis of engine, specifications, seating capacity, price, mileage and features.
