Compare Eicher Pro 3010 L CNG vs Eicher Pro 3009L CNG
Compare eicher pro 3010 l cng vs eicher pro 3009l cng
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/7852_7abfa99282ee4c5fba5ec1262b61e954Eicher-Pro-3010-L-CNG-Bus-Chassis.jpg]()
Eicher Pro 3010 L CNG

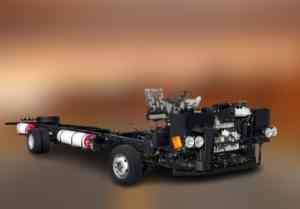

![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/567_dc09169248064fbf91a2e096d7967426Eicher-Skyline-Pro-3009L-CNG-Bus-Chassis-removebg-preview.png]()
Eicher Pro 3009L CNG
Overviewof
| Overall Length |
10252 mm |
10270 mm |
|
| GVW (Kg) |
11200 Kg |
10800 Kg |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Power |
134 HP@2400 rpm |
147 HP@2400 rpm |
|
| Torque |
450 Nm@1400-2000 rpm |
450 Nm@1400-1800 rpm |
|
| Transmission |
6 speed (6F+1R) |
N/A |
|
| Variants |
Chassis without face-cowl |
N/A |
|
| Suitable Applications |
School, Staff, Tourist |
School and staff |
|
Engine & Performanceof
| Engine Displacement |
3770 cc |
3770 cc |
|
| Engine Location |
Front |
Front |
|
| Power |
134 HP@2400 rpm |
147 HP@2400 rpm |
|
| Torque |
450 Nm@1400-2000 rpm |
450 Nm@1400-1800 rpm |
|
| Clutch |
330 mm dia |
330 mm dia
With clutch booster |
|
| Transmission |
6 speed (6F+1R) |
N/A |
|
| Emission Norms Compliance |
BS6 |
BSIV |
|
| Fuel Tank Capacity |
540 Litres |
540 Litres |
|
| Electricals Battery |
Non AC: 12V, 130Ah
AC: 24V, 130Ah x 2 |
12V, 130 Ah (Non-AC)
24V, 130 Ah (AC)
Alternator : 75 Amp (Non-AC)
Alternator : 75+120 Amp (AC) |
|
Design & Configurationof
| Overall Length |
10252 mm |
10270 mm |
|
| Overall Width |
2226 mm |
N/A |
|
| Vehicle Configuration |
Chassis without face-cowl |
N/A |
|
| Chassis Frame |
Domex frame |
Domex straight frame |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic leaf springs
With telescopic shock absorbers |
|
| Rear Suspension |
Parabolic leaf springs |
Parabolic leaf springs
With telescopic shock absorbers |
|
| Anti Roll Bar |
Front only |
Front only |
|
| Tyres |
235/75 R17.5
6+1 tyres |
235/75 R 17.5
Tubeless radial
6+1 tyres |
|
| Wheelbase |
5260 mm |
5260 mm |
|
| Ground Clearance |
165 mm |
165 mm |
|
| Front Overhang |
1918 mm |
1936 mm |
|
| Rear Overhang |
3074 mm |
3074 mm |
|
Features & Comfortof
| Driver Seat |
6 way adjustable |
6 way adjustable |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Instrument Cluster |
Digital instrument cluster |
Digital instrument cluster |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes |
Air brakes |
|
| Anti Roll Bar |
Front only |
Front only |
|
| Reverse Parking_Buzzer |
Yes |
N/A |
|
Key Comparison of Eicher Pro 3010 L CNG vs Eicher Pro 3009L CNG
Compare Eicher Pro 3010 L CNG bus vs Eicher Pro 3009L CNG bus in detail at TrucksBuses.com ! Eicher Pro 3010 L CNG bus with engine gives a power of whereas Eicher Pro 3009L CNG bus produces of power and comes with a engine. The fuel tank capacity of Eicher Pro 3010 L CNG bus is whereas Eicher Pro 3009L CNG bus is . You can check detailed bus comparison of Eicher Pro 3010 L CNG bus and Eicher Pro 3009L CNG bus on the basis of engine, specifications, seating capacity, price, mileage and features.
