Compare Buses > SML Isuzu BH School Bus 4240 : 32 / 42 Seater vs SML Isuzu S7 School 4240: 30 / 42 / 47 Seater
Compare SML Isuzu BH School Bus 4240 : 32 / 42 Seater vs SML Isuzu S7 School 4240: 30 / 42 / 47 Seater
Compare sml isuzu bh school bus 4240 32 42 seater vs SML Isuzu S7 School 4240 30 42 47 Seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/SML-BH-Series-School-Bus.jpg]()
SML Isuzu BH School Bus 4240 : 32 / 42 Seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4382_sml-isuzu-s7-school-bus-trucks-buses.jpg]()

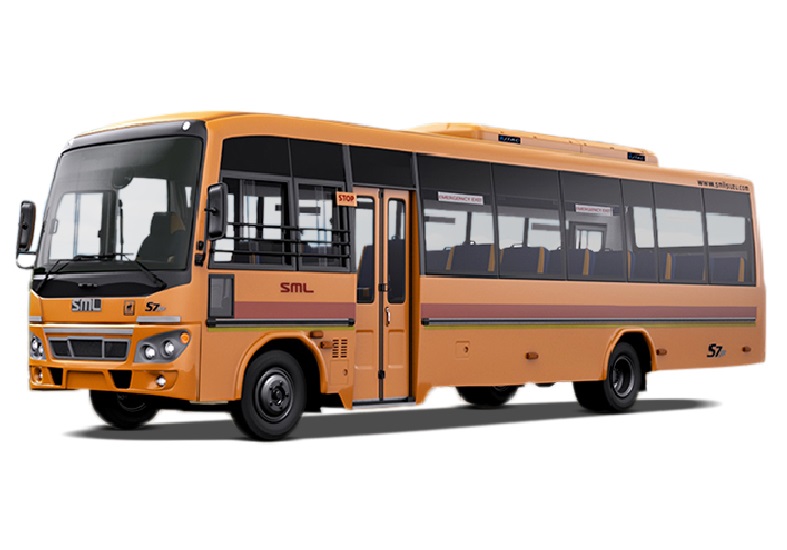

SML Isuzu S7 School 4240: 30 / 42 / 47 Seater
-
Overviewof sml isuzu bh school bus 4240 32 42 seater vs SML Isuzu S7 School 4240 30 42 47 Seater
-
Power
100 HP @ 2600 rpm
100 HP@2600 rpm
-
Torque
310 Nm @ 1600 rpm
310 Nm@1400-1600 rpm
-
Engine
SLT6 CRDI TCIC
SLT6 CRDI TCIC
-
GVW (Kg)
32+D (2x2); 42+D (3x2)
30+D (2x2) 42+D (3x2) 47+D (3x3) 19+D (2x1 reclining)
-
Warranty
3 Years/Unlimited Km on engine and gearbox1 year on vehicle
3 Years Unlimited Km on engine and gearbox1 year on vehicle
-
Engine & Performanceof sml isuzu bh school bus 4240 32 42 seater vs SML Isuzu S7 School 4240 30 42 47 Seater
-
Engine
SLT6 CRDI TCIC
SLT6 CRDI TCIC
-
Power
100 HP @ 2600 rpm
100 HP@2600 rpm
-
Torque
310 Nm @ 1600 rpm
310 Nm@1400-1600 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
3455 cc
3455 cc
-
Cylinders
4
4
-
Engine Location
Front
Front
-
Transmission
5 speed manual (5F+1R)
5 speed (5F+1R)
-
Gearbox
Synchromesh
Synchromesh
-
Clutch
Single plate, hydraulically actuated
Dry single plate
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
90 Litres (Diesel)15 Litres (Ad-Blue)
-
Battery
12V, 70 Ah
-
Design & Configurationof sml isuzu bh school bus 4240 32 42 seater vs SML Isuzu S7 School 4240 30 42 47 Seater
-
Seating Layout
2x23x2
2x2 3x2 3x3 2x1
-
Seating Capacity
32+D (2x2); 42+D (3x2)
30+D (2x2) 42+D (3x2) 47+D (3x3) 19+D (2x1 reclining)
-
Axle Configuration
4x2
-
Chassis Frame
Box type
Box type
-
Passenger Door Type
Jack-knife type
Jack-knife type
-
Floor Type
Anti-skid flooring
Anti-skid flooring
-
Front Axle
Forged I section, Reverse Elliot type
Forged I section, Reverse Elliot type
-
Front Suspension
Semi elliptical leaf springs With telescopic shock absorbers
Semi elliptical leaf springs
-
Rear Suspension
Semi elliptical leaf springsWith telescopic shock absorbers
Semi elliptical leaf springs
-
Anti Roll Bar
-
Tyres
8.25x166+1 tyres
8.25x16 - 16 PR 6+1 tyres
-
Wheelbase
4240 mm
4240 mm
-
Turning Circle Diameter
18 m
-
Ground Clearance
228 mm
-
Overall Length
7920 mm
-
Overall Width
2262 mm
2262 mm
-
Overall Height
2860 mm
-
Front Track
1674 mm
-
Rear Track
1486 mm
-
Features & Comfortof sml isuzu bh school bus 4240 32 42 seater vs SML Isuzu S7 School 4240 30 42 47 Seater
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
4 way adjustable
4 way adjustable
-
Instrument cluster
Analog With LED display
-
Automatic Transmission
-
Telematics
Optional
-
Air Conditioner AC
Optional
-
Quarter Ventilation Glass
-
Front Windshield
Single piece laminated glass
Single piece laminated glass
-
Rear Windshield
Single piece tempered glass
Single piece tempered glass
-
Side Windows
Sliding glass
Sliding glass
-
Hatrack
Tubular
Tubular
-
Passenger Seat Type
Bench Seat High back (Optional) Push back (Optional)
-
Arm Rests
Available on all seats
-
Bottle Holder
Available on each seat
-
Saloon Light
LED lights
-
Step Lamp
-
Safetyof sml isuzu bh school bus 4240 32 42 seater vs SML Isuzu S7 School 4240 30 42 47 Seater
-
Service Brakes
Air brakesWith auto slack adjuster
Air brakesWith auto slack adjuster
-
Parking Brakes
Mechanical, On rear wheels
-
ABS
-
Grab Handle
Available on each seat
Available on each seat
-
Window Guardrail
-
Guide Rail
-
Emergency Exit
Breakable rear glass with hammerDoor at rear RH side
Breakable rear glass with hammer Door at rear RH side
-
Fire Extinguisher
-
First Aid Box
-
Peep Window
-
Fog Light
-
Anti Roll Bar
-
Tubeless Tyres
-
Retarder
-
Step Lamp
Key Comparison of SML Isuzu BH School Bus 4240 : 32 / 42 Seater vs SML Isuzu S7 School 4240: 30 / 42 / 47 Seater
Compare SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus vs SML Isuzu S7 School 4240: 30 / 42 / 47 Seater bus in detail at TrucksBuses.com ! SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus with 3455 cc SLT6 CRDI TCIC engine gives a power of 100 HP @ 2600 rpm whereas SML Isuzu S7 School 4240: 30 / 42 / 47 Seater bus produces 100 HP@2600 rpm of power and comes with a 3455 cc engine. The fuel tank capacity of SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus is 90 Litres (Diesel)#15 Litres (Ad-Blue) whereas SML Isuzu S7 School 4240: 30 / 42 / 47 Seater bus is . You can check detailed bus comparison of SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus and SML Isuzu S7 School 4240: 30 / 42 / 47 Seater bus on the basis of engine, specifications, seating capacity, price, mileage and features.
