Compare SML Isuzu GS School Bus 5100 : 38 / 52 Seater vs SML Isuzu BH School Bus 4240 : 32 / 42 Seater
Compare sml isuzu gs school bus 5100 38 52 seater vs sml isuzu bh school bus 4240 32 42 seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/SML-GS-School-Bus(1)(2)(3)(4).JPG]()
SML Isuzu GS School Bus 5100 : 38 / 52 Seater
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/SML-BH-Series-School-Bus.jpg]()

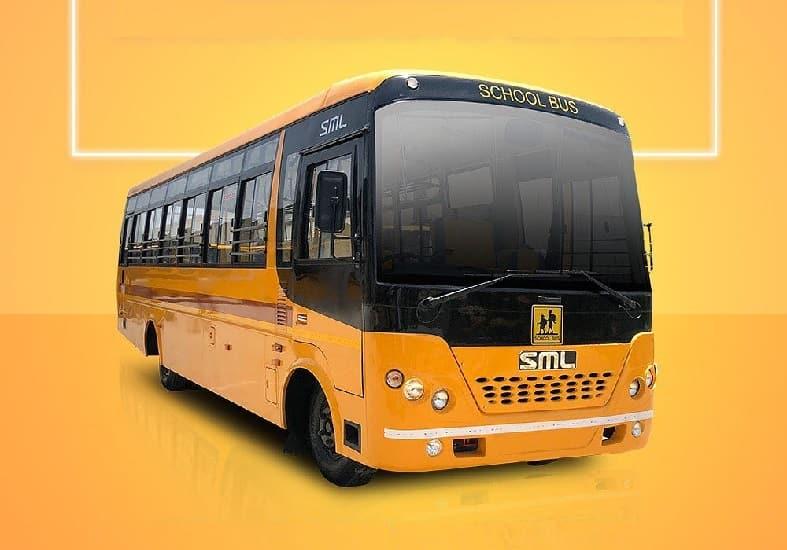

SML Isuzu BH School Bus 4240 : 32 / 42 Seater
-
Overviewof sml isuzu gs school bus 5100 38 52 seater vs sml isuzu bh school bus 4240 32 42 seater
-
Power
100 HP @ 2600 rpm
100 HP @ 2600 rpm
-
Torque
310 Nm @ 1600 rpm
310 Nm @ 1600 rpm
-
Engine
SLT6 CRDI TCIC
SLT6 CRDI TCIC
-
GVW (Kg)
38+D (2x2); 52+D (3x2)
32+D (2x2); 42+D (3x2)
-
Warranty
3 Years/Unlimited Km on engine and gearbox2 years on vehicle
3 Years/Unlimited Km on engine and gearbox1 year on vehicle
-
Engine & Performanceof sml isuzu gs school bus 5100 38 52 seater vs sml isuzu bh school bus 4240 32 42 seater
-
Engine
SLT6 CRDI TCIC
SLT6 CRDI TCIC
-
Power
100 HP @ 2600 rpm
100 HP @ 2600 rpm
-
Torque
310 Nm @ 1600 rpm
310 Nm @ 1600 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
3455 cc
3455 cc
-
Cylinders
4
4
-
Engine Location
Front
Front
-
Transmission
5 speed manual (5F+1R)
5 speed manual (5F+1R)
-
Gearbox
Synchromesh
Synchromesh
-
Clutch
Dry single plate
Single plate, hydraulically actuated
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
90 Litres (Diesel)15 Litres (Ad-Blue)
90 Litres (Diesel)15 Litres (Ad-Blue)
-
Battery
12V, 70 Ah
12V, 70 Ah
-
Design & Configurationof sml isuzu gs school bus 5100 38 52 seater vs sml isuzu bh school bus 4240 32 42 seater
-
Seating Layout
2x23x2
2x23x2
-
Seating Capacity
38+D (2x2); 52+D (3x2)
32+D (2x2); 42+D (3x2)
-
Chassis Frame
Box type
Box type
-
Passenger Door Type
Jack-knife type
Jack-knife type
-
Floor Type
Anti-skid flooring
Anti-skid flooring
-
Front Axle
Forged I section, Reverse Elliot type
Forged I section, Reverse Elliot type
-
Front Suspension
Semi elliptical leaf springs With telescopic shock absorbers
Semi elliptical leaf springs With telescopic shock absorbers
-
Rear Suspension
Semi elliptical leaf springsWith telescopic shock absorbers
Semi elliptical leaf springsWith telescopic shock absorbers
-
Anti Roll Bar
-
Tyres
8.25x166+1 tyres
8.25x166+1 tyres
-
Wheelbase
5100 mm
4240 mm
-
Turning Circle Diameter
19 m
18 m
-
Ground Clearance
206 mm
228 mm
-
Overall Length
9204 mm
7920 mm
-
Overall Width
2262 mm
2262 mm
-
Overall Height
2860 mm
2860 mm
-
Features & Comfortof sml isuzu gs school bus 5100 38 52 seater vs sml isuzu bh school bus 4240 32 42 seater
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
4 way adjustable
4 way adjustable
-
Automatic Transmission
-
Telematics
-
Quarter Ventilation Glass
-
Front Windshield
Single piece laminated glass
Single piece laminated glass
-
Rear Windshield
Single piece tempered glass
Single piece tempered glass
-
Side Windows
Sliding glass
Sliding glass
-
Hatrack
Tubular
Tubular
-
Arm Rests
Available on all seats
-
Bottle Holder
Available on each seat
-
Step Lamp
-
Safetyof sml isuzu gs school bus 5100 38 52 seater vs sml isuzu bh school bus 4240 32 42 seater
-
Service Brakes
Air brakesWith auto slack adjuster
Air brakesWith auto slack adjuster
-
Parking Brakes
Mechanical, On rear wheels
Mechanical, On rear wheels
-
ABS
-
Grab Handle
Available on each seat
Available on each seat
-
Window Guardrail
-
Guide Rail
-
Emergency Exit
Breakable rear glass with hammerDoor at rear RH side
Breakable rear glass with hammerDoor at rear RH side
-
Fire Extinguisher
-
First Aid Box
-
Peep Window
-
Fog Light
-
Anti Roll Bar
-
Tubeless Tyres
-
Retarder
-
Step Lamp
Key Comparison of SML Isuzu GS School Bus 5100 : 38 / 52 Seater vs SML Isuzu BH School Bus 4240 : 32 / 42 Seater
Compare SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus vs SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus in detail at TrucksBuses.com ! SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus with 3455 cc SLT6 CRDI TCIC engine gives a power of 100 HP @ 2600 rpm whereas SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus produces 100 HP @ 2600 rpm of power and comes with a 3455 cc engine. The fuel tank capacity of SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus is 90 Litres (Diesel)#15 Litres (Ad-Blue) whereas SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus is 90 Litres (Diesel)#15 Litres (Ad-Blue). You can check detailed bus comparison of SML Isuzu GS School Bus 5100 : 38 / 52 Seater bus and SML Isuzu BH School Bus 4240 : 32 / 42 Seater bus on the basis of engine, specifications, seating capacity, price, mileage and features.
