Compare SML Isuzu Std 3940 : 32 Seater vs SML Isuzu Std 2515 : 18 Seater

Compare sml isuzu std 3940 32 seater vs sml isuzu std 2515 18 seater


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Std Staff Bus59.jpg

SML Isuzu Std 3940 : 32 Seater

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Std Staff Bus31.jpg

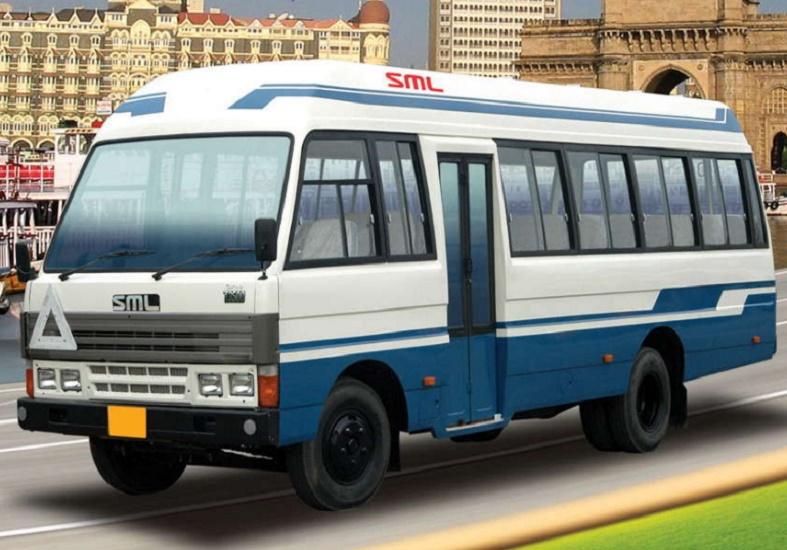

SML Isuzu Std 2515 : 18 Seater

Overviewof

Seating Capacity 32+D 18+D
Engine SLTHT6 CRDI TCIC SLTHT6 CRDI TCIC
Power 100 HP @ 2600 rpm 100 HP @ 2600 rpm
Torque 310 Nm @ 1600 rpm 310 Nm @ 1600 rpm
GVW (Kg) 6440 Kg 6200 Kg
Staff, Stage carriage Staff, Stage carriage
Warranty 2 Years/Unlimited Km on engine
1 year on vehicle
2 Years/Unlimited Km on engine
1 year on vehicle

Engine & Performanceof

Engine SLTHT6 CRDI TCIC SLTHT6 CRDI TCIC
Fuel Injection System Common rail Common rail
Engine Displacement 3455 cc 3455 cc
Engine Cylinders 4 4
Engine Location Front Front
Power 100 HP @ 2600 rpm 100 HP @ 2600 rpm
Torque 310 Nm @ 1600 rpm 310 Nm @ 1600 rpm
Clutch 260 mm dia 260 mm dia
Transmission 5 speed (5F+1R) 5 speed (5F+1R)
Gearbox Synchromesh Synchromesh
Emission Norms Compliance BS6 BS6
Fuel Type Diesel Diesel
Fuel Tank Capacity 90 Litres 90 Litres
Electricals Battery 12V, 70 Ah
55 Amps
12V, 70 Ah
55 Amps

Design & Configurationof

GVW 6440 Kg 6200 Kg
Seating Layout 2X2 2X2
Seating Capacity 32+D 18+D
Passenger Door Type One jack-knife type One jack-knife type
Chassis Frame Box type Box type
Axle Configuration 4x2 4x2
Front Axle Forged I section, Reverse Elliot type Forged I section, Reverse Elliot type
Rear Axle Fully floating Banjo type axle Fully floating Banjo type axle
Front Suspension Semi elliptical leaf springs Semi elliptical leaf springs
Rear Suspension Semi elliptical leaf springs Semi elliptical leaf springs
Tyres 8.25x16 - 16PR
6+1 tyres
7.50x16 - 16PR
6+1 tyres
Wheelbase 3940 mm 2515 mm
Turning Circle Diameter 15.2 m 10 m
Ground Clearance N/A 206 mm
Overall Length 7348 mm 4992 mm
Overall Width 2100 mm 2100 mm
Overall Height N/A 2600 mm
Front Overhang 1044 mm 1044 mm
Rear Overhang 2364 mm 1433 mm
Front Track 1640 mm 1640 mm
Rear Track 1486 mm 1486 mm

Features & Comfortof

Steering Power Steering Mechanical type
Power Steering (Optional)
Steering Adjustment Tiltable Tiltable
Instrument Cluster Analog
With LED display
Analog
With LED display
Automatic Transmission No No
Telematics No No
Air Conditioner (AC) Optional Optional
Quarter Ventilation Glass No No
Front Windshield Single piece laminated glass Single piece laminated glass
Rear_Windshield Single piece tempered glass Single piece tempered glass
Side Windows Sliding glass Sliding glass
Hatrack Tubular Tubular
Passenger Seat Bench Seat
High back seats (Optional)
Bench Seat
High back seats (Optional)
Arm Rests No No
AC Vents NA NA
Mobile Charging Point No No

Safetyof

Service Brakes Hydraulic brakes
Air brakes (Optional)
Hydraulic brakes
ABS Yes Yes
Window Guardrail No No
Guide Grab Rail Yes Yes
Roof Hatch No No
Fire Extinguisher Yes Yes
First Aid Box Yes Yes
Peep Window No No
Fog Light No No
Tubeless Tyres No No
Retarder No No

Key Comparison of SML Isuzu Std 3940 : 32 Seater vs SML Isuzu Std 2515 : 18 Seater

Compare SML Isuzu Std 3940 : 32 Seater bus vs SML Isuzu Std 2515 : 18 Seater bus in detail at TrucksBuses.com ! SML Isuzu Std 3940 : 32 Seater bus with engine gives a power of whereas SML Isuzu Std 2515 : 18 Seater bus produces of power and comes with a engine. The fuel tank capacity of SML Isuzu Std 3940 : 32 Seater bus is whereas SML Isuzu Std 2515 : 18 Seater bus is . You can check detailed bus comparison of SML Isuzu Std 3940 : 32 Seater bus and SML Isuzu Std 2515 : 18 Seater bus on the basis of engine, specifications, seating capacity, price, mileage and features.
