Compare Tata LPO 1512 vs Ashok Leyland CH 2008.4
Compare tata lpo 1512 vs Ashok Leyland CH 2008 4
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Tata LPO 1512 Bus Chassis 55 TC Cummins.jpg]()

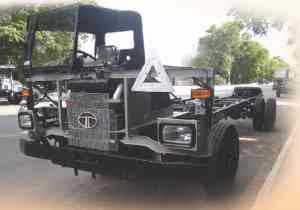

Tata LPO 1512
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4398_8d97e0dd86c847eaba536d2df5912e7c4404_Ashok-Leyland-viking-vk-2010-9-Bus-chassis-bs6-removebg-preview.png]()
Ashok Leyland CH 2008.4
-
Overviewof tata lpo 1512 vs Ashok Leyland CH 2008 4
-
Power
135 HP@2500 rpm
200 HP@2400 rpm
-
Torque
430 Nm@1500 rpm
700 Nm@1200-1900 rpm
-
Engine
Cummins ISBe 5.9 CRDi SCR Technology
H series CRS iGen6 technology
-
GVW (Kg)
16200 Kg
16200 Kg
-
Over All Length
10647 mm (5545 wb) 11127 mm (5845 wb)
8110 mm
-
Warranty
3 Years / 3 Lakh Km on driveline
-
Service Interval
40,000 Km (Short route) 60,000 Km (Long route)
80,000 Km (Oil change)
-
Additional
Gear Shift Advisor
-
Engine & Performanceof tata lpo 1512 vs Ashok Leyland CH 2008 4
-
Engine
Cummins ISBe 5.9 CRDi SCR Technology
H series CRS iGen6 technology
-
Power
135 HP@2500 rpm
200 HP@2400 rpm
-
Torque
430 Nm@1500 rpm
700 Nm@1200-1900 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
5883 cc
5660 cc
-
Cylinders
6
6
-
Engine Location
Front
Front
-
Transmission
6 speed (6F+1R)
-
Gearbox
G40 synchromesh
Synchromesh Cable shift
-
Clutch
330 mm dia Organic
380 mm dia With clutch booster
-
Gradeability
21%
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BSIV
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
250 Litres
185 Litres (Diesel) 24 Litres (Ad Blue)
-
Battery
2x12 Volts, 150 Ah Alternator: 45 Amps
24V-150 Ah, 85 Amps
-
Design & Configurationof tata lpo 1512 vs Ashok Leyland CH 2008 4
-
Variants
Chassis without face-cowl
-
GVW
16200 Kg
16200 Kg
-
Axle Configuration
4x2
4x2
-
Chassis Frame
Ladder type with rivetted/bolted cross members
Ladder type, Bolted construction
-
Rear Axle
Single reduction hypoid gears Fully floating axle shafts
Single speed hypoid Fully floating
-
Front Suspension
Weveller suspension With telescopic shock absorbers
Shackle ended leaf springs
-
Rear Suspension
Weveller suspension With telescopic shock absorbers
Shackle ended leaf springs Air (Optional)
-
Anti Roll Bar
Front only
-
Tyres
10R20 - 16PR Radial tyre
10R20 - 16 PR
-
Wheelbase
5545 mm 5845 mm
4200 mm
-
Turning Circle Diameter
20.8 m (5545 wb) 21.7 m (5845 wb)
15.3 m
-
Ground Clearance
276 mm
-
Overall Length
10647 mm (5545 wb) 11127 mm (5845 wb)
8110 mm
-
Front Overhang
1775 mm
1484 mm
-
Rear Overhang
3325 mm (5545 wb) 3510 mm (5845 wb)
2426 mm
-
Front Track
1926 mm
-
Rear Track
1821 mm
Key Comparison of Tata LPO 1512 vs Ashok Leyland CH 2008.4
Compare Tata LPO 1512 bus vs Ashok Leyland CH 2008.4 bus in detail at TrucksBuses.com ! Tata LPO 1512 bus with 5883 cc H series CRS# iGen6 technology engine gives a power of 135 HP@2500 rpm whereas Ashok Leyland CH 2008.4 bus produces 200 HP@2400 rpm of power and comes with a 5660 cc engine. The fuel tank capacity of Tata LPO 1512 bus is 250 Litres whereas Ashok Leyland CH 2008.4 bus is 185 Litres (Diesel)# 24 Litres (Ad Blue). You can check detailed bus comparison of Tata LPO 1512 bus and Ashok Leyland CH 2008.4 bus on the basis of engine, specifications, seating capacity, price, mileage and features.
