Compare Tata LPO 7.5 AC vs Tata LP 410/36 CNG
Compare tata lpo 7 5 ac vs tata lp 410 36 cng bus chassis
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Tata-LPO-7.5-Bus-Chassis-min.jpg]()

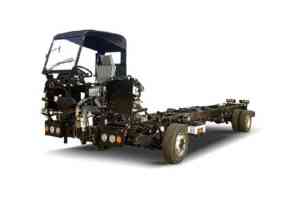

Tata LPO 7.5 AC
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21657_5d467992def24135b482903a5ece1183Tata-LP-410-36-CNG-CHASSIS.jpg]()
Tata LP 410/36 CNG
-
Overviewof
-
Overall Length
8160 mm
7190 mm
-
GVW (Kg)
7700 Kg
7000 Kg
-
Axle Configuration
4x2
4x2
-
Engine
NG 3L CR
3.8 SGI NA BS6 Engine
-
Power
140 HP@3000 rpm
85 HP@2500 rpm
-
Torque
360 Nm@1400-2000 rpm
250 Nm@1200-1600 rpm
-
Suitable Applications
School, staff and tourist
School, Staff, City bus
-
Warranty
3 Years / 3 Lakh Km on driveline
4 Years / 4 Lakh Km on driveline
-
Service Interval
40,000 Km
N/A
-
Engine & Performanceof
-
Engine
NG 3L CR
3.8 SGI NA BS6 Engine
-
Fuel Injection System
Common rail
Common Rail
-
Engine Displacement
3000 cc
3783 cc
-
Engine Cylinders
4
4
-
Engine Location
Front
Front
-
Power
140 HP@3000 rpm
85 HP@2500 rpm
-
Torque
360 Nm@1400-2000 rpm
250 Nm@1200-1600 rpm
-
Clutch
330 mm dia# Organic
280 mm dia# Single plate dry type
-
Gearbox
GBS 550 with cable shift# Dashboard mouted gear-lever
GB400 with cable shift
-
Gradeability
28.60%
N/A
-
Max Speed
101 Kmph
N/A
-
Emission Norms Compliance
BSIV
BS6 OBD2
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
160 Litres
360 Litres
-
Electricals Battery
24 V-150 Ah# 150 Amps
12V, 75 Ah# 65 Amps
-
Design & Configurationof
-
GVW
7700 Kg
7000 Kg
-
Overall Length
8160 mm
7190 mm
-
Chassis Frame
Straight steel frame
N/A
-
Axle Configuration
4x2
4x2
-
Rear Axle
Single speed Hypoid gears
N/A
-
Front Suspension
Parabolic leaf springs# With telescopic shock absorbers
Parabolic Suspension
-
Rear Suspension
Parabolic leaf springs# With telescopic shock absorbers
Parabolic Suspension
-
Anti Roll Bar
Front and Rear
Front and Rear
-
Tyres
235/75 R 17.5# Tubeless radial# 6 tyre vehicle
215/75R17.5
-
Wheelbase
4200 mm
3600 mm
-
Turning Circle Diameter
14.6 m
N/A
-
Ground Clearance
215 mm
N/A
-
Front Overhang
1650 mm
N/A
-
Rear Overhang
2310 mm
N/A
-
Front Track
1985 mm
N/A
-
Rear Track
1730 mm
N/A
-
Safetyof
-
Service Brakes
Air brakes
Air brakes
-
ABS
Yes
Yes
-
Anti Roll Bar
Front and Rear
Front and Rear
-
Tubeless Tyres
Yes
No
-
Retarder
No
No
Key Comparison of Tata LPO 7.5 AC vs Tata LP 410/36 CNG
Compare Tata LPO 7.5 AC bus vs Tata LP 410/36 CNG bus in detail at TrucksBuses.com ! Tata LPO 7.5 AC bus with engine gives a power of whereas Tata LP 410/36 CNG bus produces of power and comes with a engine. The fuel tank capacity of Tata LPO 7.5 AC bus is whereas Tata LP 410/36 CNG bus is . You can check detailed bus comparison of Tata LPO 7.5 AC bus and Tata LP 410/36 CNG bus on the basis of engine, specifications, seating capacity, price, mileage and features.
