Compare Volvo 9400 13.8M vs Volvo 9600 15m
Compare volvo 9400 13 8m vs volvo 9600 15m
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/296_ee9a6ed7ab1048638e6497a92bab821dVolvo_9400_13.8M_14.5M_Multi_Axle_Luxury_Bus-.png]()
Volvo 9400 13.8M
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/12951_defb57e503a3477d8add81fbf7f5451eCapture-removebg-preview (1).png]()

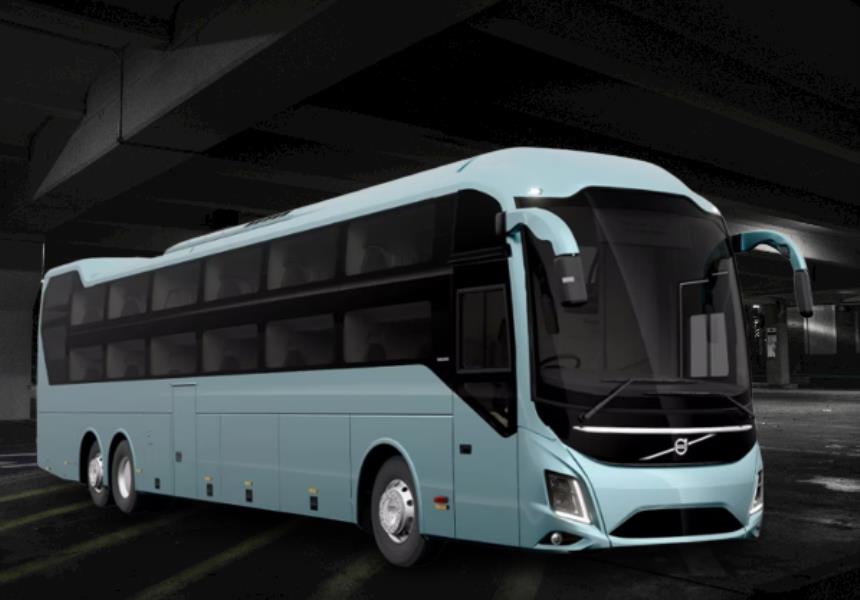

Volvo 9600 15m
-
Overviewof volvo 9400 13 8m vs volvo 9600 15m
-
Power
370 HP@1600-1900 rpm
350 HP@2200 rpm
-
Torque
1790 Nm@900-1400 rpm
1200 Nm@1200-1600 rpm
-
Engine
D11C 370 Turbocharged, Intercooled
Volvo D8K6300, Common rail direct injection
-
GVW (Kg)
51+D
55+D (Seating) 40 Sleeper seats
-
GVW (Kg)
22000 Kg
22200 kg
-
Engine & Performanceof volvo 9400 13 8m vs volvo 9600 15m
-
Engine
D11C 370 Turbocharged, Intercooled
Volvo D8K6300, Common rail direct injection
-
Power
370 HP@1600-1900 rpm
350 HP@2200 rpm
-
Torque
1790 Nm@900-1400 rpm
1200 Nm@1200-1600 rpm
-
Fuel Injection System
Unit injection
Unit injection
-
Displacement
10800 cc
10800 cc
-
Cylinders
6
6
-
Engine Location
Rear
Rear
-
Transmission
12 speed (12F+4R) With automatic Gear changing system
12 speed (12F+4R) Automatic gears
-
Gearbox
I-Shift, AT2412D
I-Shift, AT2412D
-
Gradeability
49.70%
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BSIV
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
600 Litres 2 tanks of 300+300 Litres
540 Litres Ad blue 50 Litters
-
Battery
2x12V, 165 Ah Alternator: 150 A
2x12V, 165 Ah Alternator: 150 A
-
Design & Configurationof volvo 9400 13 8m vs volvo 9600 15m
-
GVW
22000 Kg
22200 kg
-
Seating Layout
2x2
2x2
-
Seating Capacity
51+D
55+D (Seating) 40 Sleeper seats
-
Axle Configuration
6x2
6x2
-
Chassis Frame
All steel, ladder type
-
Body Structure
Galvanized tubular structure
Galvanized tubular structure
-
Passenger Door Type
Pneumatically operated
Pneumatically operated
-
Floor Type
Boiling water proof ply + FR grade
Boiling water proof ply + FR grade
-
Front Axle
Rigid type
Rigid type
-
Rear Axle
Rigid type Additional tag axle
Rigid type Additional tag axle
-
Front Suspension
Independent air suspension Electronically controlled
Independent air suspension Electronically controlled
-
Rear Suspension
Air suspension
Air suspension
-
Anti Roll Bar
Front, tag and rear axle
Front, tag and rear axle
-
Tyres
295/80 R 22.5 Tubeless radial 8+1 tyres
295/80 R 22.5 Tubeless radial 8+1 tyres
-
Wheelbase
7650 mm
8350 mm
-
Turning Circle Diameter
21.3 m
22.8 m
-
Ground Clearance
209 mm
209 mm
-
Overall Length
13800 mm
15000 mm
-
Overall Width
2600 mm
2600 mm
-
Overall Height
3600 mm
3800 mm
-
Front Overhang
2620 mm
2670 mm
-
Rear Overhang
2830 mm
3980 mm
-
Front Track
2054 mm
2054 mm
-
Rear Track
1837 mm
1837 mm
-
Features & Comfortof volvo 9400 13 8m vs volvo 9600 15m
-
Steering Type
Power Steering With steering lock
Power Steering
-
Steering Adjustment
Tilt and Telescopic
Tilt and Telescopic
-
Driver Seat
6 way adjustable
-
Instrument cluster
Digital instrument cluster
Digital instrument cluster
-
Automatic Transmission
-
Air Conditioner AC
-
Quarter Ventilation Glass
-
Sun Visor
Roll down type
Roll down type
-
Front Windshield
Single piece laminated glass
Single piece laminated glass
-
Rear Windshield
Single piece, toughened
Single piece, toughened
-
Side Windows
Single piece, toughened
Single piece, toughened
-
Hatrack
Modular
Modular
-
Passenger Seat Type
Reclining without calf support
Push back seats
-
Arm Rests
Available on each seat
Available on each seat
-
AC Vents
Individual adjustable Integrated in hatrack
Individual adjustable Integrated in hatrack
-
Mobile Charging Point
1 at each seat
1 at each seat
-
Bottle Holder
-
Magazine Holder
-
Music System
-
Luggage Space
Side luggage boot; 10 Cu.M luggage space
Side luggage boot; 10 Cu.M luggage space
-
Saloon Light
LED lights
LED lights
-
Step Lamp
-
Safetyof volvo 9400 13 8m vs volvo 9600 15m
-
Service Brakes
Full-air Disc brakes Electronic Braking System (EBS) Electronic Stability Program (ESP)
Full-air Disc brakes Electronic Braking System (EBS) Electronic Stability Program (ESP)
-
Parking Brakes
Air operated acting on rear wheels
Air operated acting on rear wheels
-
ABS
-
Seat Belts
Optional
Optional
-
Window Guardrail
NA
-
Driver Partition
Fixed
Fixed
-
Emergency Exit
-
Roof Hatch
Yes, 2 numbers
-
Fire Extinguisher
-
First Aid Box
-
Peep Window
NA
NA
-
Fog Light
-
Anti Roll Bar
Front, tag and rear axle
Front, tag and rear axle
-
Tubeless Tyres
-
Retarder
Hydrodynamic retarder
Hydrodynamic retarder
-
Reverse Gear Buzzer
-
Step Lamp
Key Comparison of Volvo 9400 13.8M vs Volvo 9600 15m
Compare Volvo 9400 13.8M bus vs Volvo 9600 15m bus in detail at TrucksBuses.com ! Volvo 9400 13.8M bus with 10800 cc Volvo D8K6300, Common rail direct injection engine gives a power of 370 HP@1600-1900 rpm whereas Volvo 9600 15m bus produces 350 HP@2200 rpm of power and comes with a 10800 cc engine. The fuel tank capacity of Volvo 9400 13.8M bus is 600 Litres# 2 tanks of 300+300 Litres whereas Volvo 9600 15m bus is 540 Litres# Ad blue 50 Litters. You can check detailed bus comparison of Volvo 9400 13.8M bus and Volvo 9600 15m bus on the basis of engine, specifications, seating capacity, price, mileage and features.
