Compare Ashok Leyland 2820 Drill Rig vs BharatBenz 2826R
Compare Ashok Leyland 2820 Drill Rig vs bharatbenz 2826r
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/9596_6c9a05bed15f4713a03131880a6fb3f0Ashok-Leyland-2820-Drill-Rig-Truck.jpg]()
Ashok Leyland 2820 Drill Rig
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/33816_88ce3946dda14071b396da95d68f343c2826-thumb.png]()

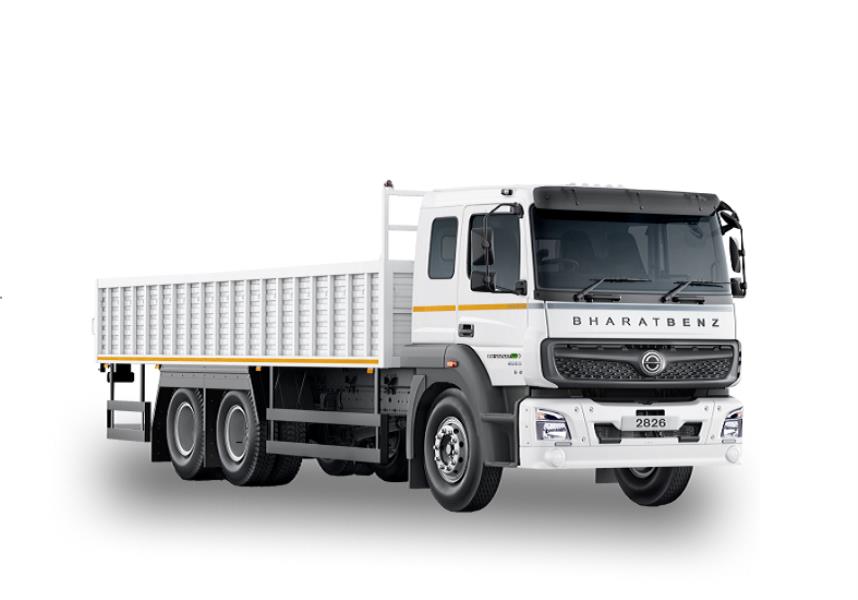

BharatBenz 2826R
-
Overviewof Ashok Leyland 2820 Drill Rig vs bharatbenz 2826r
-
Power
200 HP@2400 rpm
250 HP@2300 rpm
-
Torque
700 Nm@1200-2000 rpm
950 Nm@1000-1800 rpm
-
Engine
H series CRS iGen6 technology
6D26
-
GVW (Kg)
28000 Kg
28000 Kg
-
Variants
Cowl with Chassis Cabin and chassis
Cabin Chassis Cabin with load body
-
Body Length
24 ft
24 ft 27.9 ft 30.9 ft 32.2 ft
-
Axle Configuration
6x4
6x2
-
Warranty
4 Years / 4 Lakh Km
-
Service Interval
80,000 Km (Oil change)
-
Additional
Gear Shift Advisor
Multi drive modes Digital instrument cluster
-
Engine & Performanceof Ashok Leyland 2820 Drill Rig vs bharatbenz 2826r
-
Engine
H series CRS iGen6 technology
6D26
-
Power
200 HP@2400 rpm
250 HP@2300 rpm
-
Torque
700 Nm@1200-2000 rpm
950 Nm@1000-1800 rpm
-
Fuel Injection System
Common Rail
-
Displacement
5660 cc
6700 cc
-
Cylinders
6
6
-
Transmission
9 speed (8F+ 1CR+1R)
6 speed (6F+1R)
-
Gearbox
ZF 9S
G85, Synchromesh with OD
-
Clutch
380 mm dia With clutch booster
395 mm dia Organic Single dry plate
-
Gradeability
26.10%
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BS6
BS6 OBD2
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
Diesel: 375 Litres Ad Blue: 48 Litres Polymer tank
Diesel: 380 Litres Ad Blue: 60 Litres
-
Battery
24V, 120 Ah
12V x 2, 120 Ah
-
Design & Configurationof Ashok Leyland 2820 Drill Rig vs bharatbenz 2826r
-
Variants
Cowl with Chassis Cabin and chassis
Cabin Chassis Cabin with load body
-
Body Length
24 ft
24 ft 27.9 ft 30.9 ft 32.2 ft
-
GVW
28000 Kg
28000 Kg
-
Axle Configuration
6x4
6x2
-
Cabin Type
Sleeper cabin
Sleeper cabin Compact sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
HSS material, bolted construction
Ladder type with cross members
-
Front Axle
Forged I Beam, Reverse Elliot Type
IF 7.0, Forged | Section-Reverse Elliot Type
-
Rear Axle
Fully floating, Hypoid differential RAR 6.17
Fully floating single reduction, RS440
-
Front Suspension
Semi elliptical leaf springs Parabolic leaf spring (Optional)
Parabolic leaf springs
-
Rear Suspension
Bogie suspension NRS Semi elliptical leaf springs (Optional)
Balancer type
-
Tyres
295/95D20 10+1 tyres
295/90R20 295/80R22.5 (optional)
-
Wheelbase
5750 mm
5175 mm 5775 mm 6375 mm
-
Turning Circle Diameter
19.7 m
18.7 m 21.6 m 22.5 m
-
Ground Clearance
225 mm
-
Overall Length
10960 mm
9890 mm 11090 mm
-
Overall Width
2570 mm
2490 mm
-
Overall Height
2987 mm
2850 mm
-
Front Overhang
1485 mm
-
Rear Overhang
2555 mm 3155 mm 3455 mm
-
Front Track
2084 mm
-
Rear Track
1876 mm
-
Chassis Depth
275 mm
284 mm
-
Chassis Flange width
75 mm
70 mm
-
Chassis Thickness
8 mm
7 mm
-
Features & Comfortof Ashok Leyland 2820 Drill Rig vs bharatbenz 2826r
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tiltable Telescopic
-
Driver Seat
6 way adjustable
-
Instrument cluster
Digital With mileage indicator
Digital With mileage indicator
-
Cabin Suspension
Fully Suspended
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
Optional
HVAC (Optional)
-
Quarter Ventilation Glass
-
Arm Rests
-
Mobile Charging Point
-
Bottle Holder
-
Music System
Optional
-
Cruise Control
Key Comparison of Ashok Leyland 2820 Drill Rig vs BharatBenz 2826R
Compare Ashok Leyland 2820 Drill Rig vs BharatBenz 2826R in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 2820 Drill Rig with BharatBenz 2826R on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 2820 Drill Rig with a gross weight of 28000 Kg, gives a power of 200 HP@2400 rpm whereas BharatBenz 2826R produces 250 HP@2300 rpm of power and comes with a GVW of 28000 Kg. Powering the Ashok Leyland 2820 Drill Rig truck is 5660 cc 6 cylinder, 6D26 engine whereas BharatBenz 2826R gets powered by a 6 cylinder, 6700 cc engine.
