Compare Ashok Leyland 3520 - 8x4 vs Ashok Leyland 3525 TN H-Series
Compare Ashok Leyland 3520 8x4 vs ashok leyland 3525 tn h series
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4364_ashok-leyland-3520-12-wheeler-tipper-dumper.jpg]()
Ashok Leyland 3520 - 8x4
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/33433_5f076a221c3448f790e6493c4719c1963525 TN.jpg]()

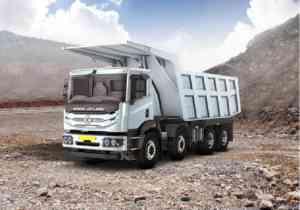

Ashok Leyland 3525 TN H-Series
-
Overviewof
-
GVW (Kg)
35000 Kg
35000 Kg
-
Axle Configuration
8x4
8x4
-
Engine
H series CRS# iGen6 technology
H series CRS# iGen6 technology
-
Power
200 HP@2400 rpm
246 HP@2400 rpm
-
Torque
700 Nm@1200-2000 rpm
900 Nm@1200-1900 rpm
-
Transmission
6 speed (6F+1R)# 9 speed (Optional)# With cable shift
9 speed (9F+1R)
-
Variants
Cabin and chassis# Cabin with Box body
Cabin with chassis# Cabin with load body
-
Load Body Options
16 Cu.M Box# 18 Cu.M Box# 22 Cu.M Box
N/A
-
Additional
Gear Shift Advisor
N/A
-
Engine & Performanceof
-
Engine
H series CRS# iGen6 technology
H series CRS# iGen6 technology
-
Fuel Injection System
Common Rail
Common Rail
-
Engine Displacement
5660 cc
5660 cc
-
Engine Cylinders
6
6
-
Power
200 HP@2400 rpm
246 HP@2400 rpm
-
Torque
700 Nm@1200-2000 rpm
900 Nm@1200-1900 rpm
-
Clutch
380 mm dia# With clutch booster
430 mm dia# Single dry plate# Organic clutch# Air assisted clutch booster
-
Transmission
6 speed (6F+1R)# 9 speed (Optional)# With cable shift
9 speed (9F+1R)
-
Gradeability
18 / 26.7%
48%
-
Emission Norms Compliance
BS6
N/A
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
Diesel: 220 / 300 Litres# Ad Blue: 48 Litres# Polymer tank
Diesel: 220 Litres
-
Electricals Battery
24V, 120 Ah / 150 Ah (AC)
N/A
-
Design & Configurationof
-
GVW
35000 Kg
35000 Kg
-
Vehicle Configuration
Cabin and chassis# Cabin with Box body
Cabin with chassis# Cabin with load body
-
Load Body Options
16 Cu.M Box# 18 Cu.M Box# 22 Cu.M Box
N/A
-
Cabin Type
Sleeper cabin
Premium cabin
-
Chassis Frame
HSS material, bolted construction
Bolted ladder type
-
Axle Configuration
8x4
8x4
-
Front Axle
Forged I Beam, Reverse Elliot Type
N/A
-
Rear Axle
Fully floating, Single speed# RAR 6.17
Fully floating, Single speed, Hypoid diffrential# RAR 5.83/7.2 HR
-
Front Suspension
Semi elliptical leaf springs# Parabolic leaf spring (Optional)
Semi elliptical multileaf# Parabolic springs
-
Rear Suspension
NRS Semi elliptical leaf springs
NRS semi elliptical# Bogie
-
Tyres
295/95D20# 12+1 tyres
295/90R20# 295/90D20# 11R20 16PR# 11x20 16PR# 11x20 Mining 18PR
-
Wheelbase
5250 mm
5250 mm
-
Chassis Depth
275 mm
N/A
-
Chassis Flange width
75 mm
N/A
-
Chassis Thickness
8+6 mm
N/A
Key Comparison of Ashok Leyland 3520 - 8x4 vs Ashok Leyland 3525 TN H-Series
Compare Ashok Leyland 3520 - 8x4 vs Ashok Leyland 3525 TN H-Series in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 3520 - 8x4 with Ashok Leyland 3525 TN H-Series on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 3520 - 8x4 with a gross weight of , gives a power of whereas Ashok Leyland 3525 TN H-Series produces of power and comes with a GVW of . Powering the Ashok Leyland 3520 - 8x4 truck is cylinder, engine whereas Ashok Leyland 3525 TN H-Series gets powered by a cylinder, engine.
