Compare Ashok Leyland 4020 vs Ashok Leyland 4020 AG
Compare Ashok Leyland 4020 vs ashok leyland 4020 ag
Ashok Leyland 4020

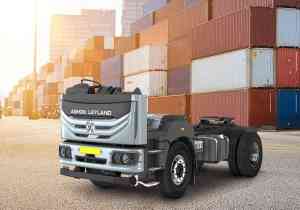

Ashok Leyland 4020 AG
Overviewof
GCW (Kg) |
39500 Kg |
39500 Kg |
|
Axle Configuration |
4x2 |
4x2 |
|
Engine |
H series CRS iGen-6 technology |
H series CRS iGen6 technology |
|
Power |
200 HP@2400 rpm |
198 HP@2400 rpm |
|
Torque |
700 Nm@1200-2000 rpm |
700 Nm@1200-1900 rpm |
|
Transmission |
6 speed (6F+1R) With cable shift |
6 speed (6F+1R) |
|
Warranty |
4 Years / 4 Lakh Km |
N/A |
|
Service Interval |
80,000 Km (Oil change) |
N/A |
|
Additional |
Gear Shift Advisor |
N/A |
|
Engine & Performanceof
Engine |
H series CRS iGen-6 technology |
H series CRS iGen6 technology |
|
Fuel Injection System |
Common Rail |
Common Rail |
|
Engine Displacement |
5660 cc |
5660 cc |
|
Power |
200 HP@2400 rpm |
198 HP@2400 rpm |
|
Torque |
700 Nm@1200-2000 rpm |
700 Nm@1200-1900 rpm |
|
Clutch |
380 mm dia With clutch booster |
380 mm dia Air assisted hydraulic booster |
|
Transmission |
6 speed (6F+1R) With cable shift |
6 speed (6F+1R) |
|
Gearbox |
ZF 6S 850 |
Synchromesh |
|
Max Speed |
80 Kmph |
80 Kmph |
|
Emission Norms Compliance |
BS6 |
BS6 |
|
Fuel Tank Capacity |
Diesel: 300 / 375 Litres Ad Blue: 48 Litres Polymer tank |
Diesel: 375 Litres Polymer tank |
|
Electricals Battery |
24V, 120 Ah / 150 Ah (AC) |
24V, 120 Ah / 150 Ah (AC) |
|
Design & Configurationof
Gross Combination Weight |
39500 Kg |
39500 Kg |
|
Cabin Type |
Sleeper cabin |
Economy cowl |
|
Chassis Frame |
HSS material, bolted construction |
Bolted ladder type |
|
Axle Configuration |
4x2 |
4x2 |
|
Front Axle |
Forged I Beam, Reverse Elliot Type Unitized wheel bearings (Optional) |
Forgerd I Section - Reverse Elliot Type |
|
Rear Axle |
Fully floating, Single speed RAR 6.17 Unitized wheel bearings (Optional) |
Fully floating, Single speed |
|
Front Suspension |
Semi elliptical leaf springs Parabolic leaf spring (Optional) |
Parabolic springs Optional : Semi elliptic multi leaf |
|
Rear Suspension |
Semi elliptical leaf springs Parabolic helper spring |
Semi elliptic multi leaf Parabolic helper springs |
|
Anti Roll Bar |
Optional in front |
N/A |
|
Tyres |
295/90R20 (Tube) 6+1 tyres |
295/90R20 |
|
Wheelbase |
3400 mm |
3200 mm |
|
Turning Circle Diameter |
12.6 m |
11.6 m |
|
Ground Clearance |
260 mm |
N/A |
|
Overall Length |
5950 mm |
5600 mm |
|
Overall Width |
2570 mm |
2570 mm |
|
Overall Height |
3145 mm (M Cabin) 3165 mm (U Cabin) 3110 mm (N Cabin) |
N/A |
|
Front Overhang |
1550 mm |
N/A |
|
Rear Overhang |
1000 mm |
N/A |
|
Chassis Flange width |
75 mm |
N/A |
|
Chassis Thickness |
7 / 8 mm |
N/A |
|
Features & Comfortof
Steering |
Power Steering |
Power steering |
|
Steering Adjustment |
Rigid (In Cowl) Tilt and telescopic (U / N cab) |
No |
|
Air Conditioner (AC) |
Optional |
No |
|
Instrument Cluster |
Digital With mileage indicator |
Digital With analog dials |
|
Mobile Charging Point |
Yes |
N/A |
|
Automatic Transmission |
No |
No |
|
Safetyof
Service Brakes |
Air brakes With ASA |
Full air dual line brakes with ABS |
|
Parking Brakes |
Acting on rear axle |
N/A |
|
Anti Roll Bar |
Optional in front |
N/A |
|
Reverse Parking_Buzzer |
Yes |
Yes |
|
Tubeless Tyres |
Optional |
N/A |
|
Key Comparison of Ashok Leyland 4020 vs Ashok Leyland 4020 AG
Compare Ashok Leyland 4020 vs Ashok Leyland 4020 AG in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 4020 with Ashok Leyland 4020 AG on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 4020 with a gross weight of , gives a power of whereas Ashok Leyland 4020 AG produces of power and comes with a GVW of . Powering the Ashok Leyland 4020 truck is cylinder, engine whereas Ashok Leyland 4020 AG gets powered by a cylinder, engine.
