Compare Tata Signa 2823.K vs Ashok Leyland 2825 H6 6x4
Compare Tata Signa 2823 K vs ashok leyland 2825 h6 6x4
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4314_b8f9021d62a24704bc1e7c18a4f957c0Signa-2823-TK-1-removebg-preview.jpg]()
Tata Signa 2823.K
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/17919_36bad4ac255e4c6b8d647da8c494e6d6AL-2825-H6.jpg]()

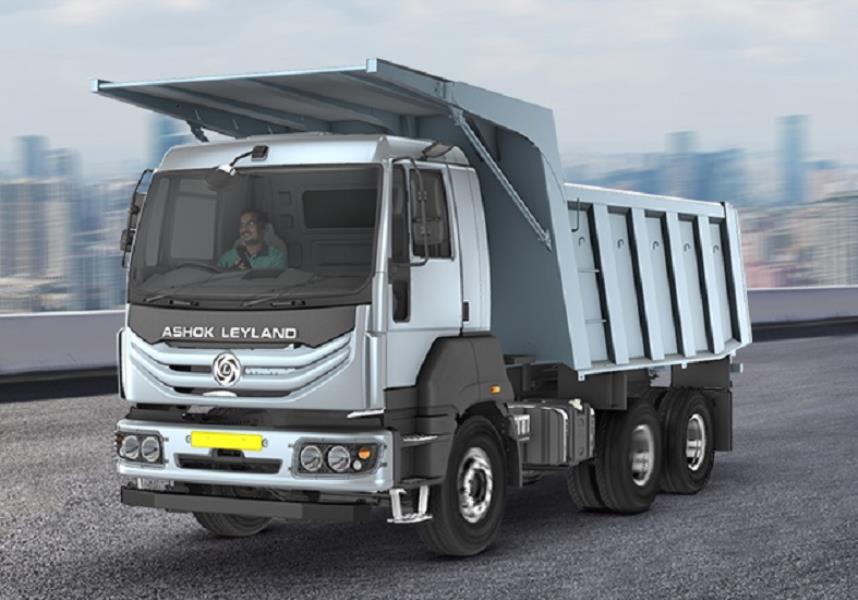

Ashok Leyland 2825 H6 6x4
-
Overviewof
-
GVW (Kg)
28000 Kg
28000 Kg
-
Axle Configuration
6x4
6x4
-
Engine
Cummins ISBe 5.6L
H series CRS# iGen6 technology
-
Power
220 HP@2300 rpm
247 HP@2400 rpm
-
Torque
850 Nm@1000-1600 rpm
900 Nm@1200-1800 rpm
-
Transmission
6 speed (6F+1R)
9 speed (9F+1R)# 6 speed (optional)
-
Variants
Cabin with Box body
Cabin with Box body
-
Load Body Options
16 Cu.M Box body
14 / 16 / 18 / 20 Cu.M (Box)
-
Additional
Gear Shift Advisor# Fuel Economy Switch# Hill Start Assist
Gear Shift Advisor
-
Engine & Performanceof
-
Engine
Cummins ISBe 5.6L
H series CRS# iGen6 technology
-
Fuel Injection System
Common Rail
Common Rail
-
Engine Displacement
5635 cc
5660 cc
-
Engine Cylinders
6
6
-
Power
220 HP@2300 rpm
247 HP@2400 rpm
-
Torque
850 Nm@1000-1600 rpm
900 Nm@1200-1800 rpm
-
Clutch
380 mm dia# Organic
380 mm dia# With clutch booster
-
Transmission
6 speed (6F+1R)
9 speed (9F+1R)# 6 speed (optional)
-
Gearbox
G950
9S
-
Gradeability
N/A
45.6 / 48.2 / 64%
-
Max Speed
N/A
60 Kmph
-
Emission Norms Compliance
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
300 Litres# Polymer tank# With anti-fuel theft
Diesel: 220 Litres# Ad Blue: 48 Litres# Polymer tank
-
Electricals Battery
N/A
24V, 120 Ah / 150 Ah (AC)
-
Design & Configurationof
-
GVW
28000 Kg
28000 Kg
-
Vehicle Configuration
Cabin with Box body
Cabin with Box body
-
Load Body Options
16 Cu.M Box body
14 / 16 / 18 / 20 Cu.M (Box)
-
Cabin Type
Day Cab
Day cab
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Ladder type straight frame
HSS material, bolted construction
-
Axle Configuration
6x4
6x4
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type
-
Rear Axle
Single reduction, Hypoid gears, Fully Floating Axle# RA 109
Fully floating, Single speed# RAR 5.57 / 5.83 / 7.2
-
Front Suspension
Semi elliptical leaf springs
Semi elliptical leaf springs# Parabolic leaf spring (Optional)
-
Rear Suspension
Semi elliptical leaf springs
Bogie suspension# NRS Semi elliptical leafs (Optional)
-
Tyres
295/95 R20# 10+1 tyres
295/90R20# 295/95D20 (Optional)# 11x20 - 16PR (Optional)# 11R20 - 16PR (Optional)# 11x20 Mine lug 18 PR (Optional)# 10+1 tyres
-
Wheelbase
3880 mm
3900 mm# 4600 mm
-
Turning Circle Diameter
N/A
14.3 m# 16.6 m
-
Chassis Depth
N/A
275 mm
-
Chassis Flange width
N/A
75 mm
-
Chassis Thickness
7 mm# With 7 mm reinforcement
8 mm
-
Safetyof
-
Service Brakes
Air brakes
Air brakes# With ASA
-
Parking Brakes
N/A
Acting on rear axle
-
Exhaust Brake
Engine brake fitted
Yes
-
ABS
Yes
Yes
-
Differential Lock
Yes
No
-
Seat Belts
Yes
Yes
-
Reverse Parking_Buzzer
Yes
Yes
-
Fog Light
No
No
-
Tubeless Tyres
No
Optional
Key Comparison of Tata Signa 2823.K vs Ashok Leyland 2825 H6 6x4
Compare Tata Signa 2823.K vs Ashok Leyland 2825 H6 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Signa 2823.K with Ashok Leyland 2825 H6 6x4 on the basis of engine, specifications, payload, price, mileage and features. Tata Signa 2823.K with a gross weight of , gives a power of whereas Ashok Leyland 2825 H6 6x4 produces of power and comes with a GVW of . Powering the Tata Signa 2823.K truck is cylinder, engine whereas Ashok Leyland 2825 H6 6x4 gets powered by a cylinder, engine.
