Compare AMW 4923 TR vs BharatBenz 5032T
Compare amw 4923 tr vs bharat benz 5032t
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/104_amw-4923-tractor-trailer.png]()
AMW 4923 TR
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21000_d8c4082c2f5a4c58b33c125c4031340aBharatBenz-5032-T.png]()

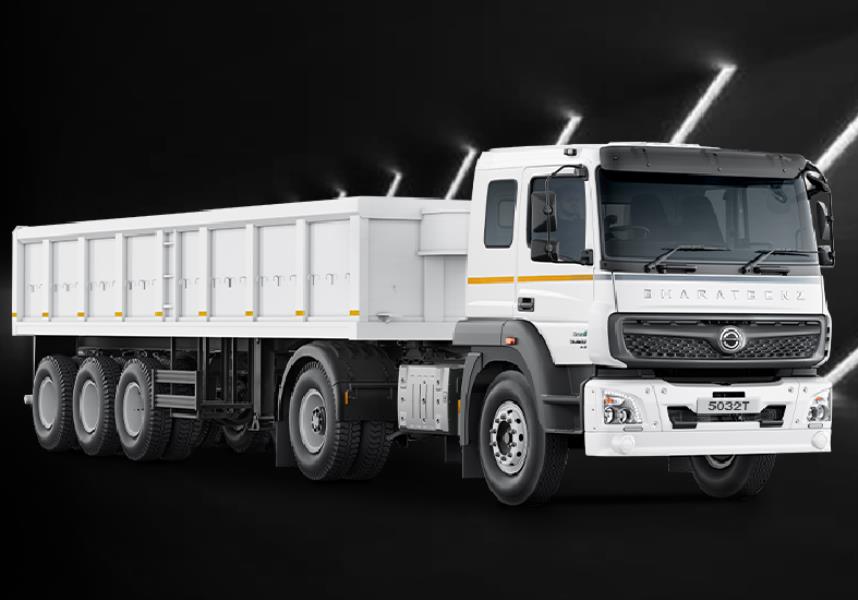

BharatBenz 5032T
Overviewof
| GCW (Kg) |
49000 Kg |
50000 Kg |
|
| Axle Configuration |
6x4 |
4x2 |
|
| Engine |
Cummins B5.9
Direct Injection, Turbo-charged |
OM 926 |
|
| Power |
235 HP@2500 rpm |
320 HP@2200 rpm |
|
| Torque |
836 Nm@1500 rpm |
1250 Nm@1200-1600 rpm |
|
| Transmission |
9 speed manual (8F+ 1CR+1R) |
9 speed (9F+1R) |
|
| Warranty |
N/A |
6 Years / 6000 Hrs on driveline
3 Years / 3000 Hrs on vehicle |
|
| Service Interval |
N/A |
120,000 Km (Oil change) |
|
| Additional |
N/A |
Gear Shift Indicator
Multi drive modes |
|
Engine & Performanceof
| Engine |
Cummins B5.9
Direct Injection, Turbo-charged |
OM 926 |
|
| Fuel Injection System |
Rotary FIP |
Unitised fuel injection pump |
|
| Engine Displacement |
5883 cc |
7200 cc |
|
| Power |
235 HP@2500 rpm |
320 HP@2200 rpm |
|
| Torque |
836 Nm@1500 rpm |
1250 Nm@1200-1600 rpm |
|
| Clutch |
Single Dry Plate, 380 mm dia
Hydro Pneumatically operated |
430 mm Single dry plate |
|
| Transmission |
9 speed manual (8F+ 1CR+1R) |
9 speed (9F+1R) |
|
| Gearbox |
9S1110 ZF
Synchromesh gears |
G131 Mechanical, Synchromesh Gears |
|
| Max Speed |
60 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BSIII |
BS6 OBD2 |
|
| Fuel Tank Capacity |
400 Litres |
455 Litres
430 Litres |
|
| Electricals Battery |
2X12V,130 Ah
Alternator: 75 Amps |
24V, 120 Ah |
|
Design & Configurationof
| Gross Combination Weight |
49000 Kg |
50000 Kg |
|
| Cabin Type |
Sleeper cabin |
Sleeper cab |
|
| Cabin Tilt mechanism |
Tiltable Cabin |
Hydraulically tiltable |
|
| Chassis Frame |
Ladder type bolted with cross members |
Ladder type with cross members |
|
| Axle Configuration |
6x4 |
4x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
IF 7.0 |
|
| Rear Axle |
Fully Floating with Hyphoid Bevel Gears |
MT36 610 Hub Reduction |
|
| Front Suspension |
Semi-elliptical leaf springs
With telescopic shock absorbers |
Parabolic Type Leaf Spring
With Hydraulic Shock Absorbers |
|
| Rear Suspension |
Inverted semi-elliptical leaf springs |
Semi-Elliptical leaf
With Auxiliary Springs |
|
| Anti Roll Bar |
N/A |
Front: Standard |
|
| Tyres |
10X20-16 PR |
295/90R20
Tubeless: 295/80R22.5 |
|
| Wheelbase |
3850 mm |
3600 mm |
|
| Turning Circle Diameter |
16.9 m |
13.1 m |
|
| Ground Clearance |
270 mm |
304 mm |
|
| Overall Length |
6610 mm |
6065 mm |
|
| Overall Width |
2494 mm |
2490 mm |
|
| Overall Height |
3050 mm |
2975 mm |
|
| Front Overhang |
1360 mm |
1485 mm |
|
| Rear Overhang |
1400 mm |
980 mm |
|
| Chassis Depth |
270 mm |
288 mm |
|
| Chassis Flange width |
82 mm |
70 mm |
|
| Chassis Thickness |
7 mm (inner liner of 7 mm) |
9 mm |
|
Features & Comfortof
| Cabin Suspension |
N/A |
Fully Suspended |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
High headrest seat |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
Yes |
Yes |
|
| Quarter Ventilation Glass |
Yes |
No |
|
| Instrument Cluster |
N/A |
Digital with indicators for:
Mileage
Reverse gear indication
Distance to empty |
|
| Music System |
FM player |
Yes |
|
| Mobile Charging Point |
N/A |
Yes |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air Brakes, dual line |
Air brakes |
|
| Parking Brakes |
Spring brake
Acting on rear wheel |
Yes
Electronic parking brake activation |
|
| Anti Roll Bar |
N/A |
Front: Standard |
|
| Differential Lock |
N/A |
Yes |
|
| Reverse Parking_Buzzer |
N/A |
Yes |
|
| Tubeless Tyres |
No |
Optional |
|
Key Comparison of AMW 4923 TR vs BharatBenz 5032T
Compare AMW 4923 TR vs BharatBenz 5032T in detail at TrucksBuses.com ! You can check detailed truck comparison of AMW 4923 TR with BharatBenz 5032T on the basis of engine, specifications, payload, price, mileage and features. AMW 4923 TR with a gross weight of , gives a power of whereas BharatBenz 5032T produces of power and comes with a GVW of . Powering the AMW 4923 TR truck is cylinder, engine whereas BharatBenz 5032T gets powered by a cylinder, engine.
