Compare Ashok Leyland 1916 HH vs Tata Signa 1921 Turbotronn 2.0
Compare ashok leyland 1916 hh vs tata signa 1921 turbotronn 2 0
Ashok Leyland 1916 HH

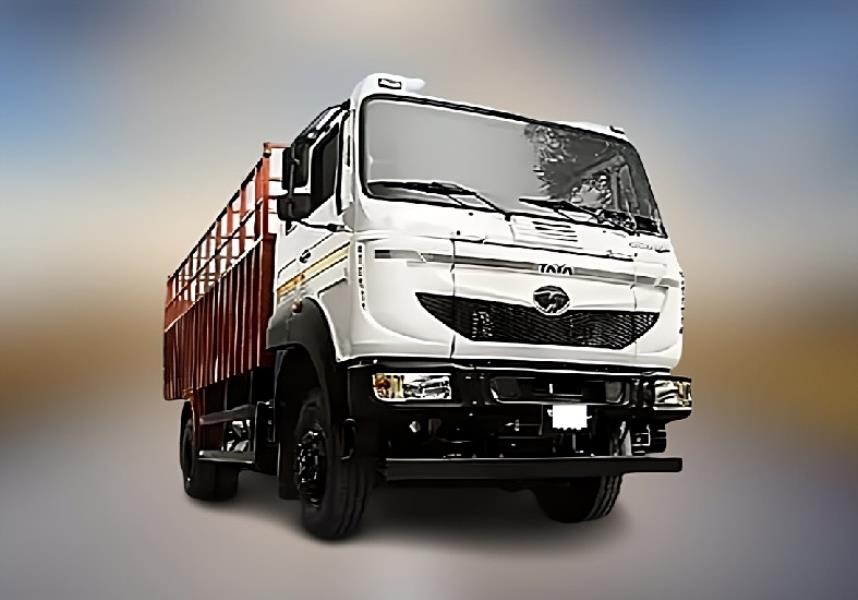

Tata Signa 1921 Turbotronn 2.0
Overviewof
GVW (Kg) |
18500 Kg |
18500 Kg |
|
Engine |
H4 TCIC |
5L Turbotronn 2.0 |
|
Payload |
12 Tons approx |
12 tons* |
|
Axle Configuration |
4x2 |
4x2 |
|
Variants |
Cowl with Chassis |
Cabin and chassis Cabin with load body |
|
Load Body Options |
N/A |
HIgh Side Deck |
|
Body Length |
18 ft 20 ft 24 ft 33 ft |
18 ft 20 ft 24 ft 32 ft |
|
Warranty |
4 Years / 4 Lakh km on driveline |
6 Years / 6 Lakh km on driveline 3 Years / 3 Lakh km on vehicle |
|
Service Interval |
N/A |
1,00,000 Km (Oil change) |
|
Additional |
Gear Shift Advisor |
Gear Shift Advisor Cruise Control 2 Multi drive modes |
|
Engine & Performanceof
Engine |
H4 TCIC |
5L Turbotronn 2.0 |
|
Fuel Injection System |
Common Rail |
Common Rail |
|
Engine Displacement |
3839 cc |
5005 cc |
|
Transmission |
6 speed (6F+1R) With cable shift |
6 speed (6F+1R) |
|
Gearbox |
6 speed gear DD box |
Synchromesh |
|
Max Speed |
80 Kmph |
80 Kmph |
|
Emission Norms Compliance |
BS6 |
BS6 OBD2 |
|
Fuel Tank Capacity |
Diesel: 185 / 350 Litres Ad Blue: 24 Litres |
365 Litres 365+365 Litres (32 ft) Polymer tank With anti-fuel theft |
|
Design & Configurationof
Payload |
12 Tons approx |
12 tons* |
|
Vehicle Configuration |
Cowl with Chassis |
Cabin and chassis Cabin with load body |
|
Load Body Options |
N/A |
HIgh Side Deck |
|
Loading Span |
18 ft 20 ft 24 ft 33 ft |
18 ft 20 ft 24 ft 32 ft |
|
Cabin Type |
Sleeper cabin |
Sleeper cabin |
|
Cabin Tilt mechanism |
N/A |
Hydraulically tiltable |
|
Chassis Frame |
Bolted ladder type HSFQ550 Material |
Ladder type straight frame |
|
Axle Configuration |
4x2 |
4x2 |
|
Front Axle |
Forged I Beam, Reverse Elliot Type |
Forged I Beam, Reverse Elliot Type |
|
Rear Axle |
Single speed rear axle RAR 5.29 |
Single reduction |
|
Front Suspension |
Semi elliptical leaf springs |
Parabolic leaf springs |
|
Rear Suspension |
Semi elliptical leaf springs With helper springs |
Semi elliptical leaf springs |
|
Tyres |
295/90R20 (Tube) 6+1 tyres |
295/90R20 (Tube) 6+1 tyres |
|
Wheelbase |
4350 mm 4800 mm 5500 mm 6600 mm |
4225 mm 4855 mm 5195 mm 6750 mm |
|
Overall Length |
N/A |
7380 mm (4225 wb) 9495 mm (5195 wb) |
|
Overall Width |
N/A |
2440 mm |
|
Front Overhang |
1464 mm |
1185 mm |
|
Rear Overhang |
N/A |
1970 mm (4225 wb) 3115 mm (5195 wb) |
|
Front Track |
1984 mm |
1933 mm |
|
Rear Track |
1816 mm |
1809 mm |
|
Chassis Depth |
228 mm |
285 mm |
|
Chassis Flange width |
75 mm |
65 mm |
|
Chassis Thickness |
6/7 mm |
6 mm |
|
Features & Comfortof
Cabin Suspension |
No |
Semi suspended |
|
Steering |
Power Steering |
Power Steering |
|
Steering Adjustment |
Rigid |
Tilt and telescopic |
|
Driver Seat |
4 way adjustable |
4 way adjustable |
|
Air Conditioner (AC) |
No |
No |
|
Instrument Cluster |
Digital With mileage indicator |
Digital |
|
Mobile Charging Point |
Yes |
Yes |
|
Automatic Transmission |
No |
No |
|
Safetyof
Service Brakes |
Air brakes With ASA |
Air brakes |
|
Reverse Parking_Buzzer |
Yes |
Yes |
|
Tubeless Tyres |
No |
Optional |
|
Key Comparison of Ashok Leyland 1916 HH vs Tata Signa 1921 Turbotronn 2.0
Compare Ashok Leyland 1916 HH vs Tata Signa 1921 Turbotronn 2.0 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 1916 HH with Tata Signa 1921 Turbotronn 2.0 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 1916 HH with a gross weight of , gives a power of whereas Tata Signa 1921 Turbotronn 2.0 produces of power and comes with a GVW of . Powering the Ashok Leyland 1916 HH truck is cylinder, engine whereas Tata Signa 1921 Turbotronn 2.0 gets powered by a cylinder, engine.
