Compare Ashok Leyland 4220 AVTR vs BharatBenz 4028T

Compare ashok leyland avtr 4220 vs BharatBenz 4028T


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/12909_08011fd272a849d2975edee4cd5092f1Ashok-Leyland-4220.png

Ashok Leyland 4220 AVTR

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/11523_2db16389f47743809110ddd445983c3bbharatbenz-4028-tt-tractor-trailers.jpg

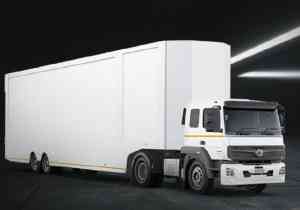

BharatBenz 4028T

  • Overviewof ashok leyland avtr 4220 vs BharatBenz 4028T

  • Power
    200 HP@2400 rpm
    281 HP @2200 rpm
  • Torque
    700 Nm@1200-2000 rpm
    1100 Nm @1200-1600 rpm
  • Engine
    H series CRS
    iGen-6 technology
    OM 926
  • GCW (Kg)
    41500 Kg
    41500 Kg (trailer with air suspension)
    39500 Kg (trailer with leaf spring)
  • Axle Configuration
    4x2
    4x2
  • Transmission
    6 speed (6F+1R)
    With cable shift
    9 speed (9F+1R)
  • Warranty
    4 Years / 4 Lakh Km
    6 Years / 6 Lakh km on driveline
    3 Years / 3 Lakh km on vehicle
  • Service Interval
    80,000 Km (Oil change)
    60,000 Km (Oil change)
  • Additional
    Gear Shift Advisor
    Gear Shift Indicator
  • Engine & Performanceof ashok leyland avtr 4220 vs BharatBenz 4028T

  • Engine
    H series CRS
    iGen-6 technology
    OM 926
  • Power
    200 HP@2400 rpm
    281 HP @2200 rpm
  • Torque
    700 Nm@1200-2000 rpm
    1100 Nm @1200-1600 rpm
  • Fuel Injection System
    Common Rail
    Unitised fuel injection pump
  • Displacement
    5660 cc
    7200 cc
  • Cylinders
    6
    6
  • Transmission
    6 speed (6F+1R)
    With cable shift
    9 speed (9F+1R)
  • Gearbox
    ZF 6S 850
    G131, Synchromesh
  • Clutch
    380 mm dia
    With clutch booster
    430 mm dia
    With clutch booster
  • Gradeability
    30.5%
  • Max Speed
    80 Kmph
    80 Kmph
  • Emission
    BS6
    BS6
  • Fuel Type
    Diesel
    Diesel
  • Fuel Tank
    Diesel: 300 / 375 Litres
    Ad Blue: 48 Litres
    Polymer tank
    Diesel: 455 / 430 Litres
    Ad Blue: 60 / 51 Litres
    With diesel anti-theft strain
  • Battery
    24V, 120 Ah / 150 Ah (AC)
    24V, 120 Ah
  • Design & Configurationof ashok leyland avtr 4220 vs BharatBenz 4028T

  • Axle Configuration
    4x2
    4x2
  • Cabin Type
    Sleeper cabin
    Sleeper cabin
  • Cabin Tilt mechanism
    Hydraulically tiltable
  • Chassis Frame
    HSS material, bolted construction
    Channel section with cross members
  • Front Axle
    Forged I Beam, Reverse Elliot Type
    Unitized wheel bearings (Optional)
    IF 7.0 Reverse Elliot Type
  • Rear Axle
    Fully floating, Single speed
    Unitized wheel bearings (Optional)
    IR440-11
    RAR 4.3
  • Front Suspension
    Semi elliptical leaf springs
    Parabolic leaf spring (Optional)
    Parabolic leaf springs
    With telescopic shock absorbers
  • Rear Suspension
    Semi elliptical leaf springs
    Parabolic helper spring
    Semi elliptical leaf springs
  • Anti Roll Bar
    Optional in front
    Front and Rear
  • Tyres
    295/90R20 (Tube)
    6+1 tyres
    295/90R20 Tube type
    295/80 R22.5 Tubeless
    6+1 tyres
  • Wheelbase
    3400 mm
    3600 mm
  • Turning Circle Diameter
    12.6 m
    13.1 m
  • Ground Clearance
    260 mm
    304 mm
  • Overall Length
    5950 mm
    6063 mm
  • Overall Width
    2570 mm
    2490 mm
  • Overall Height
    3145 mm (M Cabin)
    3165 mm (U Cabin)
    3110 mm (N Cabin)
    2975 mm
  • Front Overhang
    1550 mm
    1485 mm
  • Rear Overhang
    1000 mm
    978 mm
  • Front Track
    2084 mm
  • Rear Track
    1876 mm
  • Chassis Depth
    275 mm
    288 mm
  • Chassis Flange width
    75 mm
    70 mm
  • Chassis Thickness
    7 / 8 mm
    9 mm
  • Features & Comfortof ashok leyland avtr 4220 vs BharatBenz 4028T

  • Steering Type
    Power Steering
    Power Steering
  • Steering Adjustment
    Rigid (In Cowl)
    Tilt and telescopic (U / N cab)
    Tilt and telescopic
  • Driver Seat
    6 way adjustable
    Air suspended seat (Optional)
  • Instrument cluster
    Digital
    With mileage indicator
    Digital with indicators for:
    Mileage
    Reverse gear indication
    Distance to empty
  • Cabin Suspension
    Fully suspended
  • Automatic Transmission
  • Telematics
  • Quarter Ventilation Glass
  • Mobile Charging Point
  • Bottle Holder
  • Music System
  • Cruise Control
  • Safetyof ashok leyland avtr 4220 vs BharatBenz 4028T

  • Service Brakes
    Air brakes
    With ASA
    Air brakes
  • Parking Brakes
    Acting on rear axle
    Pneumatically operated
  • Exhaust Brake
  • ABS
  • Seat Belts
  • Fog Light
  • Anti Roll Bar
    Optional in front
    Front and Rear
  • Tubeless Tyres
    Optional
    Optional
  • Differential Lock
  • Reverse Gear Buzzer

Key Comparison of Ashok Leyland 4220 AVTR vs BharatBenz 4028T

Compare Ashok Leyland 4220 AVTR vs BharatBenz 4028T in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland 4220 AVTR with BharatBenz 4028T on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland 4220 AVTR with a gross weight of , gives a power of 200 HP@2400 rpm whereas BharatBenz 4028T produces 281 HP @2200 rpm of power and comes with a GVW of . Powering the Ashok Leyland 4220 AVTR truck is 5660 cc 6 cylinder, OM 926 engine whereas BharatBenz 4028T gets powered by a 6 cylinder, 7200 cc engine.
