Compare Ashok Leyland Captain 2523 HR vs Man CLA 25.250 EVO 6x4
Compare ashok leyland captain 2523 hr vs man cla 25 250 evo 6x4
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/536_f7f34c89a15d452390a91f038ed1f013Ashok-Leyland-2523-HR-Tipper-Truck-Price-removebg-preview (1).jpg]()

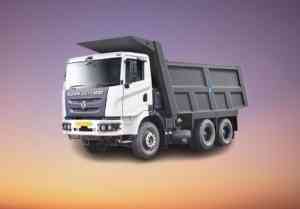

Ashok Leyland Captain 2523 HR
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/16603_89b981988e8f4cfea5cbb344a44702ebMan CLA 25.250 EVO 6x4.jpg]()
Man CLA 25.250 EVO 6x4
-
Overviewof ashok leyland captain 2523 hr vs man cla 25 250 evo 6x4
-
Power
230 HP@2200 rpm
255 HP@2300 rpm
-
Torque
800 Nm@1200-2000 rpm
1150 Nm@1200-1850 rpm
-
Engine
N Series CRS iEGR Technology
Man D-0836
-
GVW (Kg)
25000 Kg
25000 Kg
-
Variants
Cabin with Box body Cabin with Rock body
Cabin with rock body
-
Load Body Options
16 Cu.M
-
Axle Configuration
6x4
6x4
-
Transmission
9 speed manual (8F+ 1CR+1R)
9 Speed (9F+1R)
-
Warranty
4 Years / 6000 Hrs on driveline
-
Engine & Performanceof ashok leyland captain 2523 hr vs man cla 25 250 evo 6x4
-
Engine
N Series CRS iEGR Technology
Man D-0836
-
Power
230 HP@2200 rpm
255 HP@2300 rpm
-
Torque
800 Nm@1200-2000 rpm
1150 Nm@1200-1850 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
6900 cc
-
Cylinders
4
6
-
Transmission
9 speed manual (8F+ 1CR+1R)
9 Speed (9F+1R)
-
Gearbox
ZF 9S1110
Synchromesh
-
Clutch
380 mm dia With clutch booster
Single plate, Power assisted
-
Gradeability
49% (First gear) 32% (Crawler gear)
-
Max Speed
80 Kmph
60 Kmph
-
Emission
BSIV
BS4
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
208 Litres Cross linked polymer tank
300 Litres
-
Battery
2x12V-150Ah (for AC) 110 Ah (for Non AC)
2x12 V, 100 Ah
-
Design & Configurationof ashok leyland captain 2523 hr vs man cla 25 250 evo 6x4
-
Variants
Cabin with Box body Cabin with Rock body
Cabin with rock body
-
Load Body Options
16 Cu.M
-
GVW
25000 Kg
25000 Kg
-
Kerb Weight
11855 Kg
-
Axle Configuration
6x4
6x4
-
Cabin Type
Day Cab
Day cab
-
Cabin Tilt mechanism
Tiltable
Hydraulically tiltable
-
Chassis Frame
Joggled bolted frame with cross members
C channel rolled section
-
Front Axle
Forged I Beam, Reverse Elliot Type
Drop Forged I-Beam type, Maintence free Hub Bearings
-
Rear Axle
Hub reduction, Fully floating RAR 7.2:1
Planetary axles With Hub Reduction Stabliser for rear axle
-
Front Suspension
Semi-elliptical leaf springs With telescopic shock absorbers
Semi elliptical leaf springs With double acting shock absorbers
-
Rear Suspension
Bogie suspension with V rod
Bogie suspension
-
Tyres
11x20 Crossply 11R20 Radial (Optional)
11x20
-
Wheelbase
3900 mm
4525 mm
-
Turning Circle Diameter
15.2 m
-
Ground Clearance
260 mm
292 mm (Front) 272 mm (Rear)
-
Overall Length
7487 mm
-
Overall Height
3282 mm
-
Front Overhang
1326 mm
-
Rear Overhang
900 mm
-
Front Track
2044 mm
2075 mm
-
Rear Track
1870 mm
1800 mm
-
Chassis Depth
279 mm
-
Chassis Flange width
90 mm
-
Chassis Thickness
8 mm
-
Features & Comfortof ashok leyland captain 2523 hr vs man cla 25 250 evo 6x4
-
Steering Type
Power steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
Suspended seat (with AC option)
6 way adjustable Air suspended
-
Instrument cluster
Digital
Digital With on board diagnostics
-
Cabin Suspension
Fully Suspended
-
Automatic Transmission
-
Telematics
Optional
-
Air Conditioner AC
Optional
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
Optional
-
Cruise Control
-
Safetyof ashok leyland captain 2523 hr vs man cla 25 250 evo 6x4
-
Service Brakes
Air Brakes With ASA
Air brakes Electronic Brake System (EBS)
-
Parking Brakes
Pneumatic flick valve operated Acting on 1st rear axle and front axle
Yes Electronic parking brake activation
-
Exhaust Brake
-
ABS
-
Seat Belts
-
Fog Light
-
Anti Roll Bar
Front only
-
Tubeless Tyres
-
Reverse Gear Buzzer
Key Comparison of Ashok Leyland Captain 2523 HR vs Man CLA 25.250 EVO 6x4
Compare Ashok Leyland Captain 2523 HR vs Man CLA 25.250 EVO 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland Captain 2523 HR with Man CLA 25.250 EVO 6x4 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland Captain 2523 HR with a gross weight of 25000 Kg, gives a power of 230 HP@2200 rpm whereas Man CLA 25.250 EVO 6x4 produces 255 HP@2300 rpm of power and comes with a GVW of 25000 Kg. Powering the Ashok Leyland Captain 2523 HR truck is 4 cylinder, Man D-0836 engine whereas Man CLA 25.250 EVO 6x4 gets powered by a 6 cylinder, 6900 cc engine.
