Compare Ashok Leyland Partner Super 1014 vs Ashok Leyland Guru 1010
Compare ashok leyland partner super 1014 vs ashok leyland guru 1010
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/15158_329da26da1e645b9b534a8f2f499f323ashok-leyland-partner-super-7ed2-removebg-preview.png]()
Ashok Leyland Partner Super 1014
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/514_0c41efbc3a834db88673089f7bf0c029Ashok-Leyland-Guru-1010-Truck-removebg-preview.jpg]()

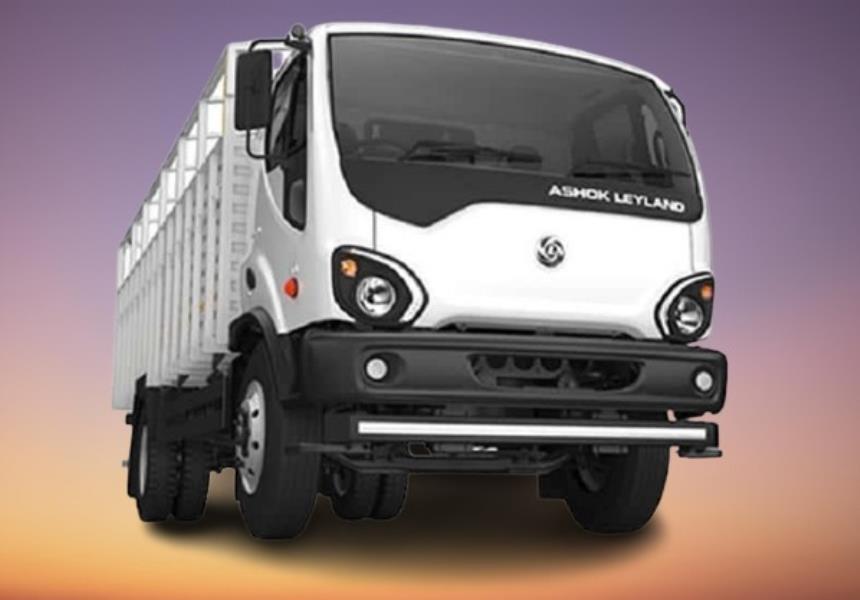

Ashok Leyland Guru 1010
-
Overviewof
-
GVW (Kg)
10250 Kg
11120 Kg
-
Engine
TCIC Engine
UPCRS EXP
-
Power
140 HP
120 HP@2700 rpm
-
Torque
360 Nm
320 Nm@1500-2200 rpm
-
Axle Configuration
4x2
4x2
-
Variants
Cabin and chassis# Cabin with load body options
Cabin and chassis# Cabin with body options
-
Body Length
14 ft# 17 ft# 20 ft# 22 ft
14.3 ft# 17.2 ft# 20 ft# 22 ft
-
Warranty
4 Years / 4 Lakh km on driveline
4 Years / 4 Lakh Km
-
Engine & Performanceof
-
Engine
TCIC Engine
UPCRS EXP
-
Fuel Injection System
Common rail
Common rail
-
Engine Cylinders
4
3
-
Power
140 HP
120 HP@2700 rpm
-
Torque
360 Nm
320 Nm@1500-2200 rpm
-
Clutch
Single Dry Plate# Diaphragm Push Type
310 mm dia# With clutch booster
-
Transmission
6 speed (6F+1R)# Overdirve gearbox# With cable shift
6 speed manual (6F+1R)# With cable shift
-
Gearbox
ZF Gearbox
Synchromesh
-
Emission Norms Compliance
BS6
BSIV
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
90 Litres# 184 Litres (Optional)
185 Litres# 110 Litres (14.3 ft)
-
Electricals Battery
12V, 75 Ah
12V, 85 Ah# Alternator: 120 Amps
-
Design & Configurationof
-
GVW
10250 Kg
11120 Kg
-
Vehicle Configuration
Cabin and chassis# Cabin with load body options
Cabin and chassis# Cabin with body options
-
Loading Span
14 ft# 17 ft# 20 ft# 22 ft
14.3 ft# 17.2 ft# 20 ft# 22 ft
-
Cabin Type
Day cab
Day cab# With sleeping provision
-
Cabin Tilt mechanism
Manually tiltable
Hydraulically tiltable
-
Chassis Frame
N/A
All steel ladder type# With bolted construction
-
Axle Configuration
4x2
4x2
-
Front Axle
N/A
I section, Reverse Elliot Type
-
Rear Axle
N/A
Fully floating, Single speed hypoid# RAR 5.13 : 1
-
Front Suspension
Parabolic leaf springs# With telescopic shock absorbers
Semi elliptical leaf springs# With shock absorbers
-
Rear Suspension
Semi elliptical leaf springs
Semi elliptical leaf springs# With helper springs
-
Tyres
N/A
8.25x16–16 PR# 235/75 R 17.5 (Tubeless)# 6+1 tyres
-
Wheelbase
N/A
3500 mm# 3800 mm# 4320 mm# 4720 mm
-
Turning Circle Diameter
N/A
12.6 m (3500 wb)# 13.66 m (3800 wb)# 15.51 m (4320 mm)# 16.94 m (4720 mm)
-
Ground Clearance
N/A
225 mm
-
Overall Length
N/A
6517 mm (3500 wb)# 7415 mm (3800 wb)# 8243 mm (4320 mm)# 8893 mm (4720 mm)
-
Overall Width
N/A
2200 mm (Cabin)
-
Load Body Width
N/A
2015 mm (3500 wb, 3800 wb)# 2135 mm (4320 wb, 4720 wb)
-
Front Overhang
N/A
1345 mm
-
Rear Overhang
N/A
1672 mm (3500 wb)# 2270 mm (3800 wb)# 2578 mm (4320 mm)# 2828 mm (4720 mm)
-
Front Track
N/A
1884 mm
-
Rear Track
N/A
1670 mm
-
Chassis Depth
N/A
200 mm
-
Chassis Flange width
N/A
60 mm
-
Chassis Thickness
6 mm
5 mm
Key Comparison of Ashok Leyland Partner Super 1014 vs Ashok Leyland Guru 1010
Compare Ashok Leyland Partner Super 1014 vs Ashok Leyland Guru 1010 in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland Partner Super 1014 with Ashok Leyland Guru 1010 on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland Partner Super 1014 with a gross weight of , gives a power of whereas Ashok Leyland Guru 1010 produces of power and comes with a GVW of . Powering the Ashok Leyland Partner Super 1014 truck is cylinder, engine whereas Ashok Leyland Guru 1010 gets powered by a cylinder, engine.
