Compare Ashok Leyland U3520 vs Ashok Leyland 3520 POL
Compare ashok leyland u3520 vs ashok leyland 3520 pol tanker
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21011_25793046817a4fc085d4d0099ab229c6ashok-leyland-U-3520.png]()
Ashok Leyland U3520
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21016_28e836e28db84e009d99d588a878330b565-removebg-preview-transformed.jpg]()

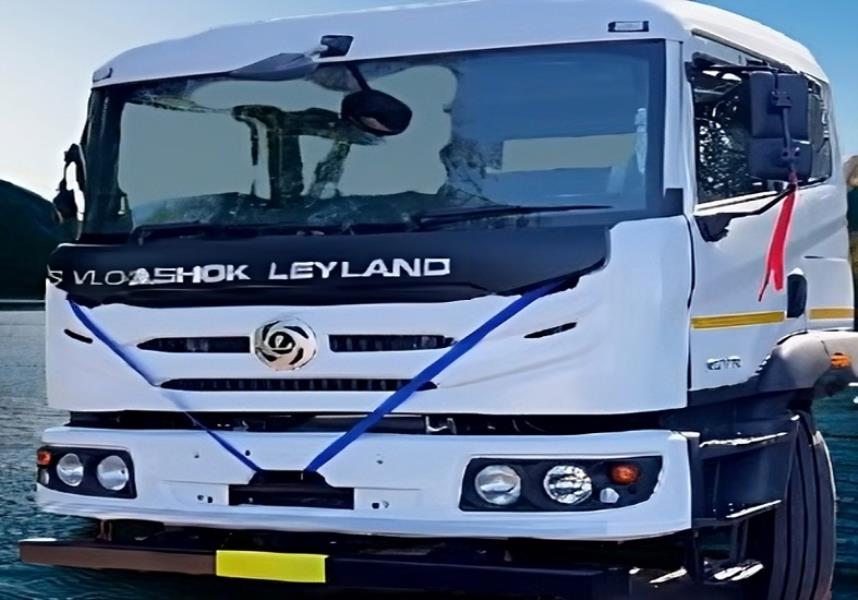

Ashok Leyland 3520 POL
-
Overviewof ashok leyland u3520 vs ashok leyland 3520 pol tanker
-
Power
200 HP
200 HP
-
Torque
700 Nm
700 Nm
-
Engine
H series CRS iGen-6 technology
H series CRS iGen-6 technology
-
GVW (Kg)
35000 Kg
35000 Kg
-
Variants
Cabin and chassis Cabin with load body
Cowl with Chassis Cabin and chassis
-
Load Body Options
Fixed Side Deck High Side Deck
-
Body Length
24 ft 26 ft 28 ft 30 ft 32 ft
26 ft 28 ft
-
Axle Configuration
8x2
8x2
-
Warranty
4 Years / 4 Lakh Km
4 Years / 4 Lakh Km
-
Additional
Gear Shift Advisor
Gear Shift Advisor
-
Engine & Performanceof ashok leyland u3520 vs ashok leyland 3520 pol tanker
-
Engine
H series CRS iGen-6 technology
H series CRS iGen-6 technology
-
Power
200 HP
200 HP
-
Torque
700 Nm
700 Nm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
5660 cc
5660 cc
-
Cylinders
6
6
-
Transmission
6 speed (6F+1R) 8 speed (Optional) With cable shift
6 speed (6F+1R) 8 speed (Optional) With cable shift
-
Gearbox
ZF 6S 850
ZF 6S 850
-
Clutch
380 mm dia Organic With clutch booster
380 mm dia Organic With clutch booster
-
Max Speed
80 Kmph
60 Kmph
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
Diesel: 220 / 300 / 375 Litres Ad Blue: 48 Litres Polymer tank
Diesel: 220 / 300 / 375 Litres Ad Blue: 48 Litres Polymer tank
-
Battery
24V, 120 Ah / 150 Ah (AC)
24V, 120 Ah
-
Design & Configurationof ashok leyland u3520 vs ashok leyland 3520 pol tanker
-
Variants
Cabin and chassis Cabin with load body
Cowl with Chassis Cabin and chassis
-
Load Body Options
Fixed Side Deck High Side Deck
-
Body Length
24 ft 26 ft 28 ft 30 ft 32 ft
26 ft 28 ft
-
GVW
35000 Kg
35000 Kg
-
Axle Configuration
8x2
8x2
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
-
Chassis Frame
HSS material, bolted construction
HSS material, bolted construction
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type
-
Rear Axle
Fully floating, Single speed
Fully floating, Single speed
-
Front Suspension
Semi elliptical leaf springs Parabolic leaf spring (Optional)
Semi elliptical leaf springs
-
Rear Suspension
Semi elliptical leaf springs Slipper suspension (Optional)
Semi elliptical leaf springs Slipper suspension (Optional)
-
Anti Roll Bar
Optional in front
Optional in front
-
Tyres
295/90R20 (Tube) 12+1 tyres
295/90R20 (Tube) 12+1 tyres
-
Wheelbase
6000 mm 6600 mm
6000 mm 6600 mm
-
Turning Circle Diameter
21.6 m (24 ft) 22.7 m (26 ft) 23.77 m (28 / 30 / 32 ft)
21.6 m (24 ft) 22.7 m (26 ft) 23.77 m (28 / 30 / 32 ft)
-
Ground Clearance
253 mm
253 mm
-
Overall Length
9710 mm (24 ft body) 10360 mm (26 ft) 10960 mm (28 ft) 11560 mm (30 ft) 11960 mm (32 ft)
-
Overall Width
2570 mm
2570 mm
-
Overall Height
3145 mm (M Cabin) 3165 mm (U Cabin) 3110 mm (N Cabin)
-
Front Overhang
1550 mm
1550 mm
-
Front Track
2084 mm
2084 mm
-
Rear Track
1876 mm
1876 mm
-
Chassis Depth
275 mm
275 mm
-
Chassis Flange width
75 mm
75 mm
-
Chassis Thickness
7 / 8 / 8+6 mm
7 / 8 / 8+6 mm
-
Features & Comfortof ashok leyland u3520 vs ashok leyland 3520 pol tanker
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
-
Instrument cluster
Digital With mileage indicator
Digital With mileage indicator
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
-
Mobile Charging Point
-
Bottle Holder
-
Cruise Control
Key Comparison of Ashok Leyland U3520 vs Ashok Leyland 3520 POL
Compare Ashok Leyland U3520 vs Ashok Leyland 3520 POL in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland U3520 with Ashok Leyland 3520 POL on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland U3520 with a gross weight of 35000 Kg, gives a power of 200 HP whereas Ashok Leyland 3520 POL produces 200 HP of power and comes with a GVW of 35000 Kg. Powering the Ashok Leyland U3520 truck is 5660 cc 6 cylinder, H series CRS# iGen-6 technology engine whereas Ashok Leyland 3520 POL gets powered by a 6 cylinder, 5660 cc engine.
