Compare Ashok Leyland U3520 vs Tata Signa 3521.T
Compare ashok leyland u3520 vs tata signa 3521 t
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21011_25793046817a4fc085d4d0099ab229c6ashok-leyland-U-3520.png]()
Ashok Leyland U3520
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/643_05c7926263914fff9a13422072f702cdtatasigna3521t (1).jpg]()

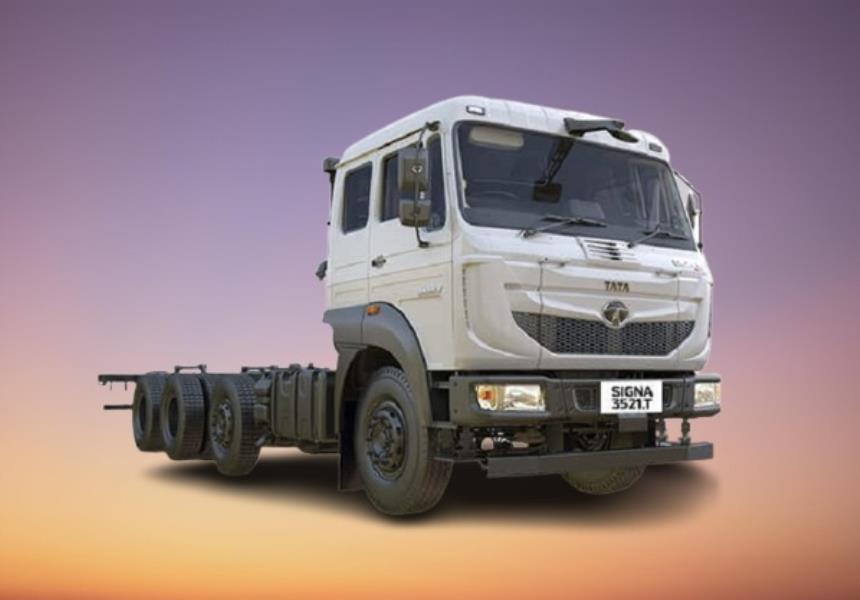

Tata Signa 3521.T
-
Overviewof
-
GVW (Kg)
35000 Kg
35000 Kg
-
Engine
H series CRS# iGen-6 technology
5L Turbotronn
-
Power
200 HP
197 HP@2300 rpm
-
Torque
700 Nm
850 Nm@1000-1600 rpm
-
Axle Configuration
8x2
8x2
-
Variants
Cabin and chassis# Cabin with load body
Cabin and chassis# Cabin with load body
-
Load Body Options
Fixed Side Deck# High Side Deck
Fixed Side Deck# High Side Deck# Container
-
Body Length
24 ft# 26 ft# 28 ft# 30 ft# 32 ft
22 ft# 24 ft# 28 ft# 32 ft
-
Warranty
4 Years / 4 Lakh Km
6 Years / 6 Lakh km on driveline# 3 Years / 3 Lakh km on vehicle
-
Service Interval
N/A
1,00,000 Km (Oil change)
-
Additional
Gear Shift Advisor
Gear Shift Advisor# 2 mode Fuel Economy Switch
-
Engine & Performanceof
-
Engine
H series CRS# iGen-6 technology
5L Turbotronn
-
Fuel Injection System
Common Rail
Common Rail
-
Engine Displacement
5660 cc
5005 cc
-
Engine Cylinders
6
4
-
Power
200 HP
197 HP@2300 rpm
-
Torque
700 Nm
850 Nm@1000-1600 rpm
-
Clutch
380 mm dia# Organic# With clutch booster
380 mm dia# Organic
-
Transmission
6 speed (6F+1R)# 8 speed (Optional)# With cable shift
6 speed (6F+1R)
-
Gearbox
ZF 6S 850
G950
-
Max Speed
80 Kmph
80 Kmph
-
Emission Norms Compliance
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
Diesel: 220 / 300 / 375 Litres# Ad Blue: 48 Litres# Polymer tank
365 Litres# Polymer tank# With anti-fuel theft
-
Design & Configurationof
-
GVW
35000 Kg
35000 Kg
-
Vehicle Configuration
Cabin and chassis# Cabin with load body
Cabin and chassis# Cabin with load body
-
Load Body Options
Fixed Side Deck# High Side Deck
Fixed Side Deck# High Side Deck# Container
-
Loading Span
24 ft# 26 ft# 28 ft# 30 ft# 32 ft
22 ft# 24 ft# 28 ft# 32 ft
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
HSS material, bolted construction
Ladder type straight frame
-
Axle Configuration
8x2
8x2
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type# With lift axle
-
Rear Axle
Fully floating, Single speed
Single reduction RA 110LD# RAR: 5.12
-
Front Suspension
Semi elliptical leaf springs# Parabolic leaf spring (Optional)
Front axle: Parabolic leaf springs# Pusher axle: Pneumatic Lift
-
Rear Suspension
Semi elliptical leaf springs# Slipper suspension (Optional)
Semi elliptical leaf springs# Bell crank
-
Tyres
295/90R20 (Tube)# 12+1 tyres
295/90R20 (Tube)# 12+1 tyres
-
Wheelbase
6000 mm# 6600 mm
5205 mm# 5505 mm# 5905 mm# 6750 mm
-
Turning Circle Diameter
21.6 m (24 ft)# 22.7 m (26 ft)# 23.77 m (28 / 30 / 32 ft)
19.9 m (5205 wb)# 21.5 m (5505 wb)# 22.38 m (5905 wb)# 23.2 m (6750 wb)
-
Overall Length
9710 mm (24 ft body)# 10360 mm (26 ft)# 10960 mm (28 ft)# 11560 mm (30 ft)# 11960 mm (32 ft)
9290 mm (5205 wb)# 9890 mm (5505 wb)
-
Overall Width
2570 mm
2440 mm
-
Overall Height
3145 mm (M Cabin)# 3165 mm (U Cabin)# 3110 mm (N Cabin)
2745 mm
-
Front Overhang
1550 mm
1515 mm
-
Rear Overhang
N/A
2570 mm (5205 wb)# 2870 mm (5505 wb)# 2505 mm (5905 wb)# 3145 mm (6750 wb)
-
Front Track
2084 mm
1964 mm
-
Rear Track
1876 mm
1817 mm
-
Chassis Depth
275 mm
285 mm
-
Chassis Flange width
75 mm
65 mm
-
Chassis Thickness
7 / 8 / 8+6 mm
8.5 mm# 7 mm (68 wb)
-
Features & Comfortof
-
Cabin Suspension
N/A
Fully suspended
-
Steering
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
N/A
4 way adjustable
-
Air Conditioner (AC)
No
Optional
-
Quarter Ventilation Glass
N/A
No
-
Instrument Cluster
Digital# With mileage indicator
Digital# With mileage indicator# Distance to empty
-
Telematics
Yes
Yes
-
Music System
N/A
Touchscreen infotainment system (Optional)
-
Mobile Charging Point
Yes
Yes
-
Bottle Holder
Yes
Yes
-
Automatic Transmission
No
No
-
Cruise Control
No
No
Key Comparison of Ashok Leyland U3520 vs Tata Signa 3521.T
Compare Ashok Leyland U3520 vs Tata Signa 3521.T in detail at TrucksBuses.com ! You can check detailed truck comparison of Ashok Leyland U3520 with Tata Signa 3521.T on the basis of engine, specifications, payload, price, mileage and features. Ashok Leyland U3520 with a gross weight of , gives a power of whereas Tata Signa 3521.T produces of power and comes with a GVW of . Powering the Ashok Leyland U3520 truck is cylinder, engine whereas Tata Signa 3521.T gets powered by a cylinder, engine.
