Compare BharatBenz 4032T vs AMW 4018 TR Cab
Compare bharat benz 4032t vs amw 4018 tr cab
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21024_a12639dc5dab48358364454eeca7f1d7BharatBenz-4032-T.png]()
BharatBenz 4032T
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4018 TR.png]()

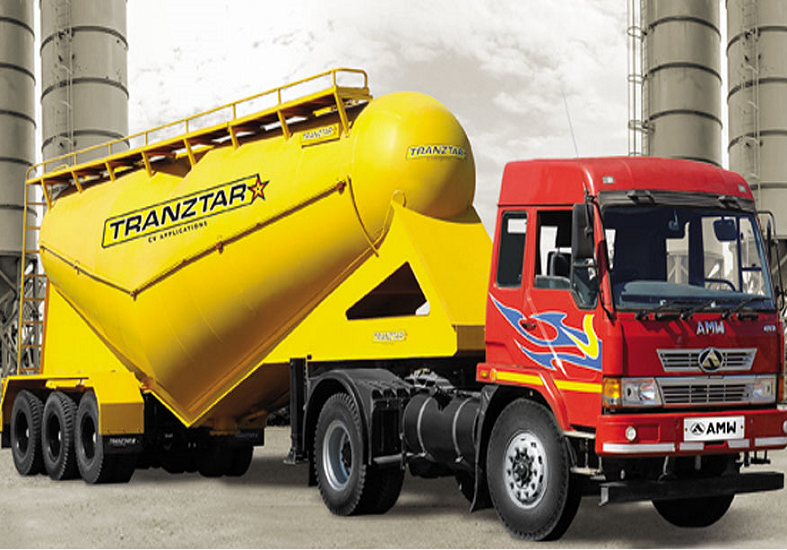

AMW 4018 TR Cab
Overviewof
| GCW (Kg) |
39500 Kg
41500 Kg (Tandem Axle With Air Suspension) |
40200 Kg |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Engine |
OM 926 |
Cummins B5.9
Direct Injection, Turbo-charged |
|
| Power |
320 HP@2200 rpm |
178 HP@2500 rpm |
|
| Torque |
1250 Nm@1200-1600 rpm |
675 Nm@1500 rpm |
|
| Transmission |
9 speed (9F+1R) |
9 speed manual (8F+ 1CR+1R) |
|
| Warranty |
6 Years / 6000 Hrs on driveline
3 Years / 3000 Hrs on vehicle |
N/A |
|
| Service Interval |
120,000 Km (Oil change) |
N/A |
|
| Additional |
Gear Shift Indicator
Multi drive modes |
N/A |
|
Engine & Performanceof
| Engine |
OM 926 |
Cummins B5.9
Direct Injection, Turbo-charged |
|
| Fuel Injection System |
Unitised fuel injection pump |
Rotary FIP |
|
| Engine Displacement |
7200 cc |
5883 cc |
|
| Power |
320 HP@2200 rpm |
178 HP@2500 rpm |
|
| Torque |
1250 Nm@1200-1600 rpm |
675 Nm@1500 rpm |
|
| Clutch |
430 mm Single dry plate |
Single Dry Plate, 380 mm dia
Hydro Pneumatically operated |
|
| Transmission |
9 speed (9F+1R) |
9 speed manual (8F+ 1CR+1R) |
|
| Gearbox |
G131 Mechanical, Synchromesh Gears |
Eaton 6209A - 9S
Synchromesh gears |
|
| Max Speed |
80 Kmph |
54 Kmph |
|
| Emission Norms Compliance |
BS6 OBD2 |
BSIII |
|
| Fuel Tank Capacity |
455 Litres
430 Litres |
240 Litres |
|
| Electricals Battery |
24V, 120 Ah |
2X12V,130 Ah
Alternator: 75 Amps |
|
Design & Configurationof
| Gross Combination Weight |
39500 Kg
41500 Kg (Tandem Axle With Air Suspension) |
40200 Kg |
|
| Cabin Type |
Sleeper cab |
Sleeper cabin |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
Tiltable Cabin |
|
| Chassis Frame |
Ladder type with cross members |
Ladder type bolted with cross members |
|
| Axle Configuration |
4x2 |
4x2 |
|
| Front Axle |
IF 7.0 |
Forged I Beam, Reverse Elliot Type |
|
| Rear Axle |
IR440-11 |
Fully Floating, Single Speed Hypoid Gear
RAR: 6.17 |
|
| Front Suspension |
Parabolic Type Leaf Spring
With Hydraulic Shock Absorbers |
Semi-elliptical leaf springs
With telescopic shock absorbers |
|
| Rear Suspension |
Semi-Elliptical leaf
With Auxiliary Springs |
Inverted semi-elliptical leaf springs |
|
| Anti Roll Bar |
Front: Standard |
N/A |
|
| Tyres |
295/90R20 |
10X20-16 PR |
|
| Wheelbase |
3600 mm |
3100 mm |
|
| Turning Circle Diameter |
13.1 m |
11.25 |
|
| Ground Clearance |
304 mm |
270 mm |
|
| Overall Length |
6065 mm |
5320 mm |
|
| Overall Width |
2490 mm |
2494 mm |
|
| Overall Height |
2975 mm |
2700 mm |
|
| Front Overhang |
1485 mm |
1350 mm |
|
| Rear Overhang |
980 mm |
870 mm |
|
| Chassis Depth |
288 mm |
254 mm |
|
| Chassis Flange width |
70 mm |
74 mm |
|
| Chassis Thickness |
9 mm |
6 mm (inner liner of 5 mm) |
|
Features & Comfortof
| Cabin Suspension |
Fully Suspended |
N/A |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable
Air suspended |
High headrest seat |
|
| Air Conditioner (AC) |
Yes |
Yes |
|
| Quarter Ventilation Glass |
No |
Yes |
|
| Instrument Cluster |
Digital with indicators for:
Mileage
Reverse gear indication
Distance to empty |
N/A |
|
| Music System |
Yes |
FM player |
|
| Mobile Charging Point |
Yes |
N/A |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes |
Air Brakes, dual line |
|
| Parking Brakes |
Yes
Electronic parking brake activation |
Spring brake
Acting on rear wheel |
|
| Anti Roll Bar |
Front: Standard |
N/A |
|
| Differential Lock |
Yes |
N/A |
|
| Reverse Parking_Buzzer |
Yes |
N/A |
|
| Tubeless Tyres |
Optional |
No |
|
Key Comparison of BharatBenz 4032T vs AMW 4018 TR Cab
Compare BharatBenz 4032T vs AMW 4018 TR Cab in detail at TrucksBuses.com ! You can check detailed truck comparison of BharatBenz 4032T with AMW 4018 TR Cab on the basis of engine, specifications, payload, price, mileage and features. BharatBenz 4032T with a gross weight of , gives a power of whereas AMW 4018 TR Cab produces of power and comes with a GVW of . Powering the BharatBenz 4032T truck is cylinder, engine whereas AMW 4018 TR Cab gets powered by a cylinder, engine.
