Compare BharatBenz 3523R vs BharatBenz 3526R Tanker
Compare bharatbenz 3523r vs bharatbenz 3526r tanker
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/492_Bharatbenz-3523r-12-wheeler-trucks.jpg]()
BharatBenz 3523R
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/33819_397e69421ca4497cb42de0f4b5555a9c3526 tanker.PNG]()

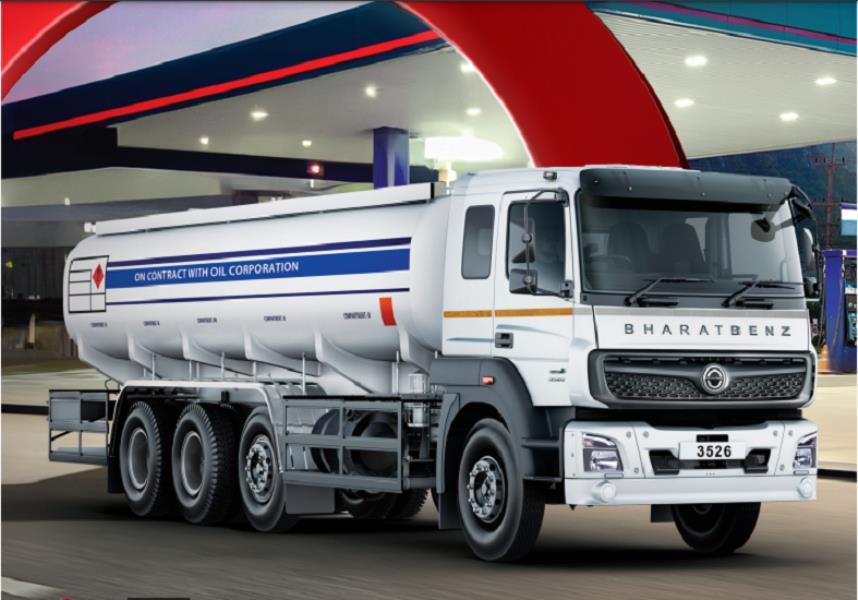

BharatBenz 3526R Tanker
-
Overviewof bharatbenz 3523r vs bharatbenz 3526r tanker
-
Power
241 HP
250 HP@2300 rpm
-
Torque
850 Nm
950 Nm@1000-1800 rpm
-
Engine
OM 926
6D26
-
GVW (Kg)
35000 Kg
35000 Kg
-
Payload
26.3 Tons (28 ft CBC)
-
Variants
Cabin and chassis Cabin with load body
Cabin chassis with PTO
-
Body Length
26 ft 28 ft 32 ft
27.9 ft
-
Axle Configuration
8x2
8x2
-
Warranty
6 Years / 6 Lakh km on driveline 3 Years / 3 Lakh km on vehicle
-
Service Interval
60,000 Km (Oil change)
-
Additional
Gear Shift Indicator
Multi drive modes Digital instrument cluster
-
Engine & Performanceof bharatbenz 3523r vs bharatbenz 3526r tanker
-
Engine
OM 926
6D26
-
Power
241 HP
250 HP@2300 rpm
-
Torque
850 Nm
950 Nm@1000-1800 rpm
-
Fuel Injection System
Unitised fuel injection pump
-
Displacement
7200 cc
6700 cc
-
Cylinders
6
6
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Gearbox
G85, Synchromesh
G85, Synchromesh with OD
-
Clutch
395 mm dia With clutch booster
395 mm dia Organic Single dry plate
-
Gradeability
18.50%
20.50%
-
Max Speed
80 Kmph
60 Kmph
-
Emission
BS6
BS6 OBD2
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
Diesel: 380 / 200 Litres Ad Blue: 60 / 51 Litres With diesel anti-theft strain
Diesel: 200 Litres Ad Blue: 60 Litres
-
Battery
24V, 120/130 Ah
12V x 2, 120 Ah
-
Design & Configurationof bharatbenz 3523r vs bharatbenz 3526r tanker
-
Variants
Cabin and chassis Cabin with load body
Cabin chassis with PTO
-
Body Length
26 ft 28 ft 32 ft
27.9 ft
-
GVW
35000 Kg
35000 Kg
-
Axle Configuration
8x2
8x2
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Channel section with cross members
Ladder type with cross members
-
Front Axle
IF 7.0 Reverse Elliot Type
IF 7.0, Forged | Section-Reverse Elliot Type
-
Rear Axle
Axle 1:IR440-11 Axle 2: IT- 10 RAR 5.875 Pusher Lift axle
Fully floating single reduction, RS440
-
Front Suspension
Front axle: Parabolic leaf spring with shock absorbers Pusher axle: Pneumatic Lift
Parabolic leaf springs
-
Rear Suspension
Balancer type semi elliptical leaf springs
Balancer type
-
Anti Roll Bar
Optional
-
Tyres
11R20 or 295/90R20 295/80 R22.5 Tubeless 12+1 tyres
295/90R20 295/80R22.5 (optional)
-
Wheelbase
5775 mm 6375 mm
6375 mm
-
Turning Circle Diameter
21.6 m (5775 wb) 23.7 m (6375 wb)
23.7 m
-
Ground Clearance
238 mm
210 mm
-
Overall Length
10492 mm (5775 wb) 11092 mm (6375 wb) 11192 mm (6375 wb compact sleeper)
11090 mm
-
Overall Width
2490 mm
2490 mm
-
Overall Height
2960 mm
2960 mm
-
Front Overhang
1485 mm
1485 mm
-
Rear Overhang
2557 / 3457 mm
2555 mm
-
Chassis Depth
286 mm
286 mm
-
Chassis Flange width
70 mm
70 mm
-
Chassis Thickness
8 mm
8 mm
-
Features & Comfortof bharatbenz 3523r vs bharatbenz 3526r tanker
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tiltable Telescopic
-
Driver Seat
6 way adjustable
6 way adjustable
-
Instrument cluster
Digital with indicators for: Mileage Reverse gear indication Distance to empty
Digital With mileage indicator
-
Cabin Suspension
Fully suspended
Fully Suspended
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
HVAC (Optional)
HVAC (Optional)
-
Quarter Ventilation Glass
-
Arm Rests
-
Mobile Charging Point
-
Bottle Holder
-
Music System
Optional
-
Cruise Control
Key Comparison of BharatBenz 3523R vs BharatBenz 3526R Tanker
Compare BharatBenz 3523R vs BharatBenz 3526R Tanker in detail at TrucksBuses.com ! You can check detailed truck comparison of BharatBenz 3523R with BharatBenz 3526R Tanker on the basis of engine, specifications, payload, price, mileage and features. BharatBenz 3523R with a gross weight of 35000 Kg, gives a power of 241 HP whereas BharatBenz 3526R Tanker produces 250 HP@2300 rpm of power and comes with a GVW of 35000 Kg. Powering the BharatBenz 3523R truck is 7200 cc 6 cylinder, 6D26 engine whereas BharatBenz 3526R Tanker gets powered by a 6 cylinder, 6700 cc engine.
