Compare BharatBenz 3523R vs Tata LPT 3518
Compare bharatbenz 3523r vs tata lpt 3518
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/492_Bharatbenz-3523r-12-wheeler-trucks.jpg]()
BharatBenz 3523R
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/503_tata-lpt-3518-12-wheeler-truck-chassis.jpg]()

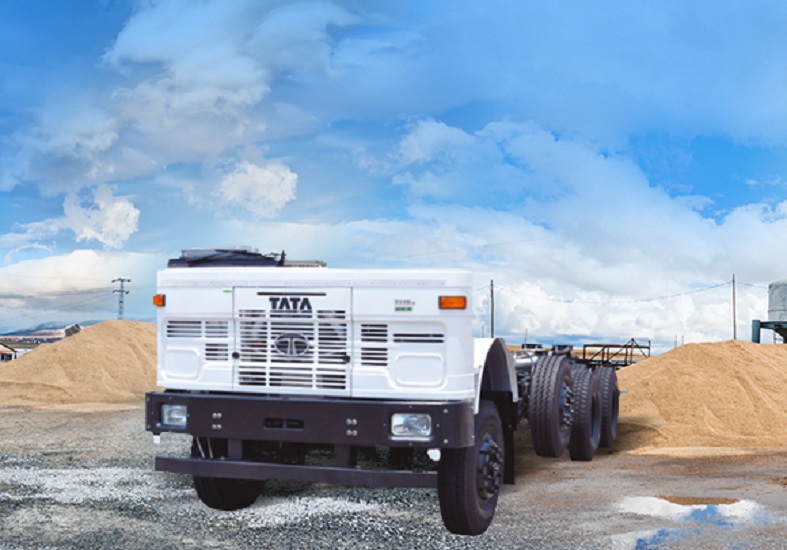

Tata LPT 3518
-
Overviewof bharatbenz 3523r vs tata lpt 3518
-
Power
241 HP
186 HP@2300 rpm
-
Torque
850 Nm
850 Nm@1000-1600 rpm
-
Engine
OM 926
Cummins ISBe 5.6L
-
GVW (Kg)
35000 Kg
35000 Kg
-
Payload
26.3 Tons (28 ft CBC)
-
Variants
Cabin and chassis Cabin with load body
Cowl with Chassis Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck Container
-
Body Length
26 ft 28 ft 32 ft
22 ft 24 ft 28 ft
-
Axle Configuration
8x2
8x2
-
Warranty
6 Years / 6 Lakh km on driveline 3 Years / 3 Lakh km on vehicle
6 Years / 6 Lakh km on driveline 3 Years / 3 Lakh km on vehicle
-
Service Interval
60,000 Km (Oil change)
80,000 Km (Oil change)
-
Additional
Gear Shift Indicator
Gear Shift Advisor 3 mode Fuel Economy Switch
-
Engine & Performanceof bharatbenz 3523r vs tata lpt 3518
-
Engine
OM 926
Cummins ISBe 5.6L
-
Power
241 HP
186 HP@2300 rpm
-
Torque
850 Nm
850 Nm@1000-1600 rpm
-
Fuel Injection System
Unitised fuel injection pump
Common Rail
-
Displacement
7200 cc
5635 cc
-
Cylinders
6
6
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Gearbox
G85, Synchromesh
G950
-
Clutch
395 mm dia With clutch booster
380 mm dia
-
Gradeability
18.50%
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
Diesel: 380 / 200 Litres Ad Blue: 60 / 51 Litres With diesel anti-theft strain
365 Litres Polymer tank With anti-fuel theft
-
Battery
24V, 120/130 Ah
-
Design & Configurationof bharatbenz 3523r vs tata lpt 3518
-
Variants
Cabin and chassis Cabin with load body
Cowl with Chassis Cabin and chassis Cabin with load body
-
Load Body Options
Fixed Side Deck High Side Deck Container
-
Body Length
26 ft 28 ft 32 ft
22 ft 24 ft 28 ft
-
GVW
35000 Kg
35000 Kg
-
Axle Configuration
8x2
8x2
-
Cabin Type
Sleeper cabin
Sleeper cabin option
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Channel section with cross members
Ladder type straight frame
-
Front Axle
IF 7.0 Reverse Elliot Type
Forged I Beam, Reverse Elliot Type With lift axle
-
Rear Axle
Axle 1:IR440-11 Axle 2: IT- 10 RAR 5.875 Pusher Lift axle
Single reduction RA 110LD RAR: 5.12
-
Front Suspension
Front axle: Parabolic leaf spring with shock absorbers Pusher axle: Pneumatic Lift
Front axle: Parabolic leaf springs Pusher axle: Pneumatic Lift
-
Rear Suspension
Balancer type semi elliptical leaf springs
Semi elliptical leaf springs Bell crank
-
Anti Roll Bar
Optional
-
Tyres
11R20 or 295/90R20 295/80 R22.5 Tubeless 12+1 tyres
295/90R20 (Tube) 12+1 tyres
-
Wheelbase
5775 mm 6375 mm
5205 mm 5505 mm 5905 mm
-
Turning Circle Diameter
21.6 m (5775 wb) 23.7 m (6375 wb)
19.9 m (5205 wb) 21.5 m (5505 wb) 22.38 m (5905 wb)
-
Ground Clearance
238 mm
-
Overall Length
10492 mm (5775 wb) 11092 mm (6375 wb) 11192 mm (6375 wb compact sleeper)
9035 mm (5205 wb) 9635 mm (5505 wb)10385 mm (5905 wb)
-
Overall Width
2490 mm
2440 mm
-
Overall Height
2960 mm
-
Front Overhang
1485 mm
1260 mm
-
Rear Overhang
2557 / 3457 mm
2570 mm (5205 wb) 2870 mm (5505 wb) 2505 mm (5905 wb)
-
Front Track
1964 mm
-
Rear Track
1817 mm
-
Chassis Depth
286 mm
285 mm
-
Chassis Flange width
70 mm
65 mm
-
Chassis Thickness
8 mm
8.5 mm
-
Features & Comfortof bharatbenz 3523r vs tata lpt 3518
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
-
Driver Seat
6 way adjustable
4 way adjustable
-
Instrument cluster
Digital with indicators for: Mileage Reverse gear indication Distance to empty
Digital With mileage indicator Distance to empty
-
Cabin Suspension
Fully suspended
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
HVAC (Optional)
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
-
Cruise Control
Key Comparison of BharatBenz 3523R vs Tata LPT 3518
Compare BharatBenz 3523R vs Tata LPT 3518 in detail at TrucksBuses.com ! You can check detailed truck comparison of BharatBenz 3523R with Tata LPT 3518 on the basis of engine, specifications, payload, price, mileage and features. BharatBenz 3523R with a gross weight of 35000 Kg, gives a power of 241 HP whereas Tata LPT 3518 produces 186 HP@2300 rpm of power and comes with a GVW of 35000 Kg. Powering the BharatBenz 3523R truck is 7200 cc 6 cylinder, Cummins ISBe 5.6L engine whereas Tata LPT 3518 gets powered by a 6 cylinder, 5635 cc engine.
