Compare BharatBenz 914R MD IN-Power vs BharatBenz 1117R
Compare bharatbenz 914r md in power vs bharat benz 1117r
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/BharatBenz MD In Power 914R(1).jpg]()

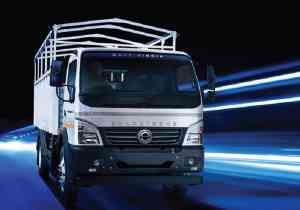

BharatBenz 914R MD IN-Power
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/20997_808279c6263d4db5ae6e9596f5a721efBharatBenz-1117-R.png]()
BharatBenz 1117R
-
Overviewof
-
GVW (Kg)
10600 Kg
11120 Kg
-
Engine
4D34i CRDI# SCR Technology
4D34i
-
Power
140 HP@2500 rpm
170 HP@2500 rpm
-
Torque
420 Nm@1500-2000 rpm
520 Nm@1200-1600 rpm
-
Axle Configuration
4x2
4x2
-
Variants
Cabin and chassis# Cabin with load body options
Cabin and chassis# Cabin with load body
-
Load Body Options
N/A
Fixed Side Deck# Drop Side Deck# High Side Deck
-
Body Length
17 ft# 19 ft# 21 ft
14 ft# 17 ft# 20 ft# 21 ft
-
Warranty
3 years unlimited km on driveline# 2 years unlimited km on vehicle
3 Years unlimited km on driveline
-
Service Interval
40000 Km (Oil change)
50,000 Km (Oil change)
-
Additional
Multi Drive Mode
Multi drive modes
-
Engine & Performanceof
-
Engine
4D34i CRDI# SCR Technology
4D34i
-
Fuel Injection System
Common rail
Common Rail
-
Engine Displacement
3907 cc
3900 cc
-
Engine Cylinders
4
4
-
Power
140 HP@2500 rpm
170 HP@2500 rpm
-
Torque
420 Nm@1500-2000 rpm
520 Nm@1200-1600 rpm
-
Clutch
330 mm dia# With clutch booster
332 mm dia, Single Dry Plate, Hydraulic Control
-
Transmission
6 speed manual (6F+1R)# With cable shift
6 speed (6F+1R)# With cable shift
-
Gearbox
MO 36, Synchromesh
Improved G85, 6F+1R, Mechanical, Sychromesh gears
-
Gradeability
23.5%
33%
-
Max Speed
80 Kmph
80 Kmph
-
Emission Norms Compliance
BSIV
BS6 OBD2
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
Diesel: 200 Litres# Ad-Blu Tank: 27 Litres# With diesel anti-theft strain
Diesel: 160 / 200 Litres# Ad Blue: 36 Litres# With diesel anti-theft strain
-
Electricals Battery
2x12V, 75 Ah
24V, 75 Ah
-
Design & Configurationof
-
GVW
10600 Kg
11120 Kg
-
Vehicle Configuration
Cabin and chassis# Cabin with load body options
Cabin and chassis# Cabin with load body
-
Load Body Options
N/A
Fixed Side Deck# Drop Side Deck# High Side Deck
-
Loading Span
17 ft# 19 ft# 21 ft
14 ft# 17 ft# 20 ft# 21 ft
-
Cabin Type
Day cab
Day cab
-
Cabin Tilt mechanism
Manually tiltable
Manually tiltable
-
Chassis Frame
Ladder type channel with cross members
Ladder type with cross members
-
Axle Configuration
4x2
4x2
-
Front Axle
IF 3.6, Reverse Elliot Type
IF 3.6, Reverse Elliot Type
-
Rear Axle
AAM 7.14# Fully floating, Hypoid gears
DANA S 130
-
Front Suspension
Semi-elliptical leaf springs# With telescopic shock absorbers
Multileaf Spring
-
Rear Suspension
Semi elliptical leaf springs
Multileaf Spring
-
Anti Roll Bar
Front and Rear (Optional)
Front: Standard# Rear Optional
-
Tyres
235/75R17.5 - 14 PR# Radial tyres# 6+1 tyres
235/75 R17.5# 8.25R16 (Optional)
-
Wheelbase
3760 mm# 4250 mm# 4800 mm
3360 mm# 3760 mm# 4250 mm# 4800 mm
-
Turning Circle Diameter
13.8 m (3760 wb)# 15.7 m (4250 wb)# 17.6 m (4800 wb)
13.4 m (3360 wb)# 13.8 m (3760 wb)# 15.7 m (4250 wb)# 17.6 m (4800 wb)
-
Ground Clearance
205 mm
205 mm
-
Overall Length
6985 mm (3760 wb)# 7585 mm (4250 wb)# 8195 mm (4800 wb)
6380 mm (3360 wb)# 6985 mm (3760 wb)# 7950 mm (4250 wb)# 8250 mm (4800 wb)
-
Overall Width
2190 mm
2205 mm
-
Overall Height
2390 mm
2420 mm
-
Front Overhang
1275 mm
1275 mm
-
Rear Overhang
2000 mm (4800 wb)
1745 mm (3360 wb)# 1950 mm (3760 wb)# 2425 mm (4250 wb)# 2120 mm (4800 wb)
-
Chassis Depth
228 mm
228 mm
-
Chassis Flange width
80 mm
80 mm
-
Chassis Thickness
6 mm
6 mm
-
Safetyof
-
Service Brakes
Air brakes
Air brakes
-
Parking Brakes
Pneumatically operated
Spring Actuated with Hand Brake Valve
-
Exhaust Brake
Yes
Yes
-
ABS
N/A
No
-
Anti Roll Bar
Front and Rear (Optional)
Front: Standard# Rear Optional
-
Differential Lock
N/A
No
-
Seat Belts
Yes
Yes
-
Reverse Parking_Buzzer
N/A
Yes
-
Fog Light
Yes
Provision
-
Tubeless Tyres
No
Optional
Key Comparison of BharatBenz 914R MD IN-Power vs BharatBenz 1117R
Compare BharatBenz 914R MD IN-Power vs BharatBenz 1117R in detail at TrucksBuses.com ! You can check detailed truck comparison of BharatBenz 914R MD IN-Power with BharatBenz 1117R on the basis of engine, specifications, payload, price, mileage and features. BharatBenz 914R MD IN-Power with a gross weight of , gives a power of whereas BharatBenz 1117R produces of power and comes with a GVW of . Powering the BharatBenz 914R MD IN-Power truck is cylinder, engine whereas BharatBenz 1117R gets powered by a cylinder, engine.
