Compare Eicher Pro 6035T vs Volvo FM 420 8x4 23 Cu.M
Compare eicher 6035t vs Volvo FM 420 8 4 23 Cu M
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/12729_035408c37136414281f6bf547ad3239312729_b07707e91a574bf8903e4322e223898dEicher-Pro-6035-T-1-removebg-preview.jpg]()
Eicher Pro 6035T
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/9472_d2dd0016fc0f4a74bc9324eaf7b3cdffvolvo-fm-420-8x4-tractor-trailer-image.jpg]()

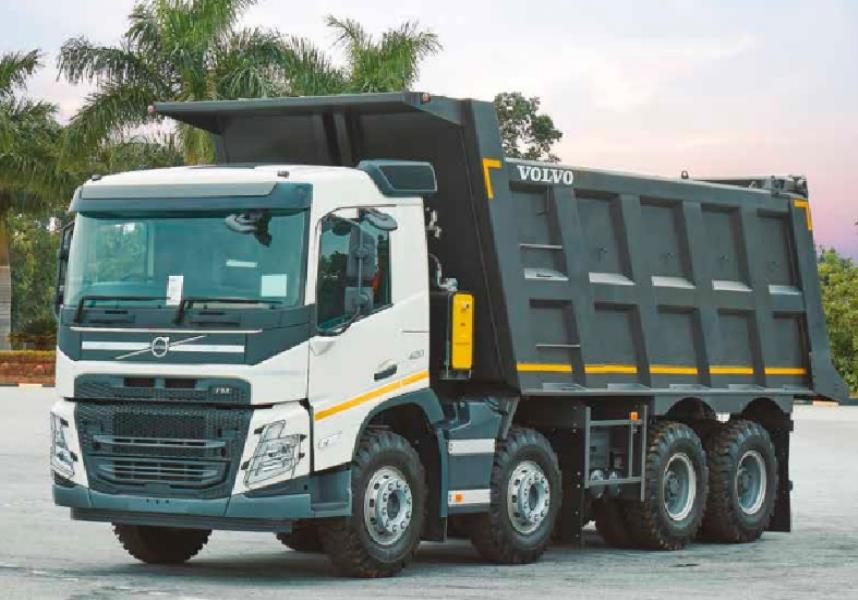

Volvo FM 420 8x4 23 Cu.M
-
Overviewof eicher 6035t vs Volvo FM 420 8 4 23 Cu M
-
Power
260 HP@2200 rpm
420 HP@1400-1800 rpm
-
Torque
1000 Nm@1000-1700 rpm
2100 Nm@860-1400 rpm
-
Engine
VEDX8
12.8L Inline, Direct injection
-
GVW (Kg)
35000 Kg
35000 Kg
-
Variants
Cabin chassis with PTO Cabin with load body
Cabin with body
-
Load Body Options
20 Cu.M (Box) 23 Cu.M (Box)
23 Cu.M
-
Axle Configuration
8x4
8x4
-
Transmission
9 speed (8F+1CR+1R)
12 speed (12F+4R) I-Shift
-
Service Interval
60,000 Km (Oil change)
-
Additional
Fuel coaching MBooster+ Technology for multi drive modes
-
Engine & Performanceof eicher 6035t vs Volvo FM 420 8 4 23 Cu M
-
Engine
VEDX8
12.8L Inline, Direct injection
-
Power
260 HP@2200 rpm
420 HP@1400-1800 rpm
-
Torque
1000 Nm@1000-1700 rpm
2100 Nm@860-1400 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
7698 cc
12800 cc
-
Cylinders
6
6
-
Transmission
9 speed (8F+1CR+1R)
12 speed (12F+4R) I-Shift
-
Gearbox
ET 140S9
I-Shift Automatic
-
Clutch
430 mm dia Single dry plate
430 mm Power assisted
-
Gradeability
39%
-
Max Speed
80 Kmph
-
Emission
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
Diesel: 315 Litres Ad Blue: 33 Litres
Diesel: 290 Litres Ad Blue: 57 Litres
-
Battery
24V, 120 Ah
24 V, 170 Ah
-
Design & Configurationof eicher 6035t vs Volvo FM 420 8 4 23 Cu M
-
Variants
Cabin chassis with PTO Cabin with load body
Cabin with body
-
Load Body Options
20 Cu.M (Box) 23 Cu.M (Box)
23 Cu.M
-
GVW
35000 Kg
35000 Kg
-
Axle Configuration
8x4
8x4
-
Cabin Type
HVAC Day Cabin
Day cab With sleeping provision
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Domex frame
C channel section
-
Front Axle
Forged I Beam, Reverse Elliot Type Twin steer axle
Twin steer front Axle
-
Rear Axle
Banjo type, Single reduction RAR 5.29
Drive tandem hub reduction axle with four planetary gears Inter-wheel differential lock Inter-axle differential lock
-
Front Suspension
Parabolic leaf springs
Parabolic S-shaped leaf geometry suspension
-
Rear Suspension
Bogie suspension
Bogie suspension with multi-leaf springs
-
Tyres
11x20 - Nylon
12x24
-
Wheelbase
5285 mm
5035 mm
-
Turning Circle Diameter
18.6 m
23.2 m
-
Ground Clearance
252 mm
348 mm
-
Overall Length
8551 mm
-
Overall Width
2590 mm
-
Overall Height
3663 mm
-
Front Track
2085 mm
-
Rear Track
1875 mm
-
Chassis Depth
300 mm
300 mm
-
Chassis Flange width
90 mm
90 mm
-
Chassis Thickness
7 mmWith 5 mm stiffener
8 mm
-
Features & Comfortof eicher 6035t vs Volvo FM 420 8 4 23 Cu M
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tilt and telescopic
-
Driver Seat
6 way adjustable
6 way adjustable Air suspended
-
Instrument cluster
Digital With fuel coaching
Digital With on board diagnostics
-
Cabin Suspension
Fully suspended
Fully suspended
-
Automatic Transmission
-
Telematics
-
Air Conditioner AC
HVAC (Optional)
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
-
Cruise Control
-
Safetyof eicher 6035t vs Volvo FM 420 8 4 23 Cu M
-
Service Brakes
Air brakes With APDA
Air brakes Electronic Brake System (EBS)
-
Parking Brakes
Pneumatically operated
Yes Electronic parking brake activation
-
Exhaust Brake
-
ABS
-
Seat Belts
-
Fog Light
Provision
-
Anti Roll Bar
Front only
-
Tubeless Tyres
Optional
-
Differential Lock
Inter axle Inter wheel
-
Reverse Gear Buzzer
Key Comparison of Eicher Pro 6035T vs Volvo FM 420 8x4 23 Cu.M
Compare Eicher Pro 6035T vs Volvo FM 420 8x4 23 Cu.M in detail at TrucksBuses.com ! You can check detailed truck comparison of Eicher Pro 6035T with Volvo FM 420 8x4 23 Cu.M on the basis of engine, specifications, payload, price, mileage and features. Eicher Pro 6035T with a gross weight of 35000 Kg, gives a power of 260 HP@2200 rpm whereas Volvo FM 420 8x4 23 Cu.M produces 420 HP@1400-1800 rpm of power and comes with a GVW of 35000 Kg. Powering the Eicher Pro 6035T truck is 7698 cc 6 cylinder, 12.8L Inline, Direct injection engine whereas Volvo FM 420 8x4 23 Cu.M gets powered by a 6 cylinder, 12800 cc engine.
