Compare Eicher Pro 8031XM vs Kamaz 6540 8x4
Compare eicher pro 8031xm vs kamaz 6540 8x4

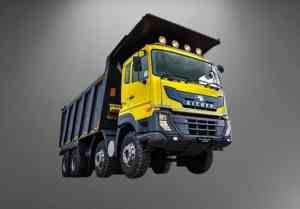

Eicher Pro 8031XM
Kamaz 6540 8x4
Overviewof
| GVW (Kg) |
31000 Kg |
31000 Kg |
|
| Axle Configuration |
8x4 |
8x4 |
|
| Engine |
VEDX8
SCR technology |
Kamaz 740.62-280 |
|
| Power |
330 HP@2200 rpm |
280 HP@1900 rpm |
|
| Torque |
1200 Nm@1200-1600 rpm |
1177 Nm@1300-1500 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
N/A |
|
| Variants |
Cabin and chassis
Cabin with Rock / Scoop body |
Cabin with body |
|
| Warranty |
2 Years / 6000 hrs |
N/A |
|
| Additional |
Fuel coaching |
N/A |
|
Engine & Performanceof
| Engine |
VEDX8
SCR technology |
Kamaz 740.62-280 |
|
| Fuel Injection System |
Common rail |
N/A |
|
| Engine Displacement |
7700 cc |
11760 cc |
|
| Power |
330 HP@2200 rpm |
280 HP@1900 rpm |
|
| Torque |
1200 Nm@1200-1600 rpm |
1177 Nm@1300-1500 rpm |
|
| Clutch |
430 mm dia
With clutch booster |
430 mm
Single plate pull type |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
N/A |
|
| Gradeability |
51% (Crawler gear) |
47% |
|
| Max Speed |
77 Kmph |
90 Kmph |
|
| Emission Norms Compliance |
BSIV |
BS3 |
|
| Fuel Tank Capacity |
Diesel: 315 Litres
Ad-Blue Tank : 33 Litres |
250 Litres |
|
| Electricals Battery |
24V, 150 Ah
Alternator - 90 Amps |
2x12 V, 165 Ah |
|
Design & Configurationof
| Vehicle Configuration |
Cabin and chassis
Cabin with Rock / Scoop body |
Cabin with body |
|
| Cabin Type |
Day Cab |
Day cab |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
Hydraulically tiltable |
|
| Chassis Frame |
Rolled form type |
N/A |
|
| Axle Configuration |
8x4 |
8x4 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type
With Stabilizer bar |
Forged I beam reverse Elliot type |
|
| Rear Axle |
Hub reduction axle
RAR - 6.37:1 |
Fully floating tandem axle |
|
| Front Suspension |
Parabolic leaf springs
With telescopic shock absorbers |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Inverted bogie suspension |
Bogie suspension |
|
| Anti Roll Bar |
Stabilizer bar in front and rear |
N/A |
|
| Tyres |
12x22 - Mining |
11x20 |
|
| Wheelbase |
5285 mm |
3640 mm |
|
| Turning Circle Diameter |
19.75 m |
N/A |
|
| Ground Clearance |
306 mm |
300 mm |
|
| Overall Length |
9075 mm |
7290 mm |
|
| Overall Width |
2596 mm |
2600 mm |
|
| Overall Height |
3732 mm |
3328 mm |
|
| Chassis Flange width |
90 mm |
N/A |
|
| Chassis Thickness |
8 mm |
N/A |
|
| Load Body Dimensions |
16 Cu.M
18 Cu.M |
N/A |
|
Features & Comfortof
| Cabin Suspension |
Fully Suspended |
N/A |
|
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable
Mechanically Suspended |
Adjustable seat |
|
| Air Conditioner (AC) |
Standard |
Yes |
|
| Quarter Ventilation Glass |
No |
N/A |
|
| Instrument Cluster |
Digital
With fuel coaching |
Digital
With on board diagnostics |
|
| Music System |
Optional |
N/A |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Automatic Transmission |
No |
N/A |
|
Safetyof
| Service Brakes |
Air Brakes |
N/A |
|
| Parking Brakes |
Pneumatic hand operated |
N/A |
|
| Anti Roll Bar |
Stabilizer bar in front and rear |
N/A |
|
Key Comparison of Eicher Pro 8031XM vs Kamaz 6540 8x4
Compare Eicher Pro 8031XM vs Kamaz 6540 8x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Eicher Pro 8031XM with Kamaz 6540 8x4 on the basis of engine, specifications, payload, price, mileage and features. Eicher Pro 8031XM with a gross weight of , gives a power of whereas Kamaz 6540 8x4 produces of power and comes with a GVW of . Powering the Eicher Pro 8031XM truck is cylinder, engine whereas Kamaz 6540 8x4 gets powered by a cylinder, engine.
