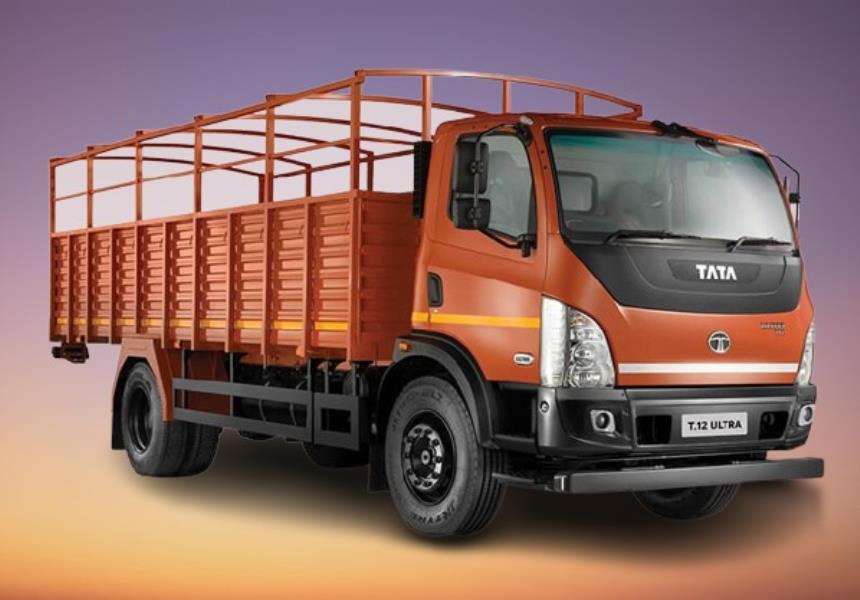

Compare Tata 1109g LPT CNG vs Tata Ultra T.12g CNG

GVW (Kg)	10990 Kg	11990 Kg

Engine	3.8L SGI Naturally Aspirated	3.8L SGI TCIC

Power	85 HP@2500 rpm	125 HP@2250 rpm

Torque	285 Nm@1200-1600 rpm	420 Nm@1400-1600 rpm

Payload	6.5 tons +	7-7.5 tons*

Axle Configuration	4x2	4x2

Variants	Cabin chassis with PTO Cabin with load body	Cabin and chassis Cabin with load body

Load Body Options	Fixed Side Deck High Side Deck	Fixed Side Deck High Side Deck

Body Length	17 ft 20 ft	20 ft 22 ft 24 ft

Warranty	3 Years / 3 Lakh Km on driveline	3 Years / 3 Lakh Km on driveline

Service Interval	20,000 Km (Oil change)	20,000 Km (Oil change)

Additional	Gear Shift Advisor	Gear Shift Advisor

Engine	3.8L SGI Naturally Aspirated	3.8L SGI TCIC

Engine Displacement	3783 cc	3783 cc

Engine Cylinders	4	4

Power	85 HP@2500 rpm	125 HP@2250 rpm

Torque	285 Nm@1200-1600 rpm	420 Nm@1400-1600 rpm

Clutch	280 mm dia	330 mm dia

Transmission	5 speed (5F+1R)	5 speed (5F+1R)

Gearbox	GB 27	GB550

Gradeability	21%	25%

Max Speed	80 Kmph	80 Kmph

Emission Norms Compliance	BS6	BS6

Fuel Type	CNG	CNG

Fuel Tank Capacity	300 / 430 Litres	576 Litres

Electricals Battery	12V, 100 Ah Alternator: 120 Amps	12V, 100 Ah Alternator: 120 Amps

GVW	10990 Kg	11990 Kg

Payload	6.5 tons +	7-7.5 tons*

Vehicle Configuration	Cabin chassis with PTO Cabin with load body	Cabin and chassis Cabin with load body

Load Body Options	Fixed Side Deck High Side Deck	Fixed Side Deck High Side Deck

Loading Span	17 ft 20 ft	20 ft 22 ft 24 ft

Cabin Type	Day cab	Day cab

Cabin Tilt mechanism	Manually tiltable	Hydraulically tiltable

Chassis Frame	Ladder type with cross members	Ladder type with cross members

Axle Configuration	4x2	4x2

Front Axle	Forged I Beam, Reverse Elliot Type	Forged I Beam, Reverse Elliot Type

Front Suspension	Semi elliptical leaf springs With telescopic shock absorbers	Parabolic leaf springs With telescopic shock absorbers

Rear Suspension	Semi elliptical leaf springs	Semi elliptical leaf springs With auxiliary springs

Tyres	8.25R20 6+1 tyres	245/70 R 17.5 Tubeless Radial 6+1 tyres

Wheelbase	3600 mm 4200 mm	4530 mm

Turning Circle Diameter	14.8 m (3600 wb) 16.6 m (4200 wb)	15.2 m (20 ft body) 16.9 m (22 ft) 18.2 m (24 ft)

Ground Clearance	217 mm	185 mm

Overall Width	2315 mm	2255 mm

Overall Height	3100 mm	2933 mm

Load Body Width	2175 mm	2117 mm

Cabin Suspension	No	No

Steering	Power Steering	Power Steering

Steering Adjustment	Tilt and telescopic	Tilt and telescopic

Driver Seat	4 way adjustable	4 way adjustable Mechanically suspended

Air Conditioner (AC)	No	No

Quarter Ventilation Glass	No	No

Instrument Cluster	Digital With mileage indicator Distance to empty	Digital With mileage indicator Distance to empty

Telematics	Yes	Yes

Music System	Yes	Yes

Mobile Charging Point	Yes	Yes

Bottle Holder	Yes	Yes

Automatic Transmission	No	No

Cruise Control	No	No

Service Brakes	Air brakes With auto slack adjuster	Air brakes With auto slack adjuster

Parking Brakes	N/A	Graduated valve controlled spring brake

ABS	N/A	No

Differential Lock	No	No

Seat Belts	Yes	Yes

Reverse Parking_Buzzer	Yes	Yes

Fog Light	Provision	No

Tubeless Tyres	No	Yes
