Compare Tata LPK 2518 HD - 6S vs Kamaz 6520 6x4
Compare tata lpk 2518 hd 6s vs kamaz 6520
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/161_810b359e7a534f1d92150f5a29335b88Tata_LPK_1618_BSIV_Tipper_Dumper-removebg-preview.png]()

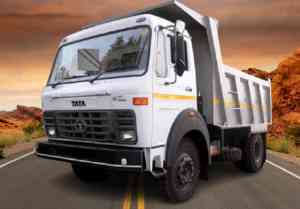

Tata LPK 2518 HD - 6S
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/16618_3904aa50055b46778c0058ee0bc2a65fkamaz-6520-6x4-c0b3180d-1024x768-removebg-preview.png]()
Kamaz 6520 6x4
-
Overviewof
-
GVW (Kg)
25000 Kg
25000 Kg
-
Axle Configuration
6x4
6x4
-
Engine
Cummins ISBe 5.9 CRDi# SCR Technology
Kamaz 740.61.320
-
Power
180 HP@2500 rpm
316 HP@1900 rpm
-
Torque
700 Nm@1500 rpm
1373 Nm@1300-1500 rpm
-
Transmission
6 speed manual (6F+1R)
N/A
-
Variants
Cabin with Box body
Cabin with body
-
Warranty
6 Years / 6000 Hrs on driveline# 3 Years / 3000 Hrs on vehicle
N/A
-
Service Interval
1000 Hrs
N/A
-
Additional
Multi Drive Mode: Heavy, Light
N/A
-
Engine & Performanceof
-
Engine
Cummins ISBe 5.9 CRDi# SCR Technology
Kamaz 740.61.320
-
Fuel Injection System
Common Rail
N/A
-
Engine Displacement
5883 cc
11760 cc
-
Engine Cylinders
6
8
-
Power
180 HP@2500 rpm
316 HP@1900 rpm
-
Torque
700 Nm@1500 rpm
1373 Nm@1300-1500 rpm
-
Clutch
Single dry plate, 380 mm dia# Organic
430 mm# Single plate pull type
-
Transmission
6 speed manual (6F+1R)
N/A
-
Gearbox
Tata G 750
N/A
-
Gradeability
27.5%
42%
-
Max Speed
70 Kmph
90 Kmph
-
Emission Norms Compliance
BSIV
BS3
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
Diesel: 300 Litres# Ad-blue: 35 Litres
210 Litres
-
Electricals Battery
24V, 120 Ah
2x12 V, 165 Ah
-
Design & Configurationof
-
GVW
25000 Kg
25000 Kg
-
Vehicle Configuration
Cabin with Box body
Cabin with body
-
Cabin Type
Day Cab
Day cab
-
Cabin Tilt mechanism
NA
Hydraulically tiltable
-
Chassis Frame
Ladder type with cross members
N/A
-
Axle Configuration
6x4
6x4
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I beam reverse Elliot type
-
Rear Axle
Single reduction RA 109# RAR: 6.83
Fully floating tandem axle
-
Front Suspension
Parabolic leaf springs
Semi elliptical leaf springs# With double acting shock absorbers
-
Rear Suspension
Bogie suspension
Bogie suspension
-
Anti Roll Bar
Front only
N/A
-
Tyres
10x20 - 16 PR# Crossply, Non-mining
11x20
-
Wheelbase
3880 mm
4300 mm
-
Turning Circle Diameter
19.8 m
N/A
-
Ground Clearance
235 mm
296 mm
-
Overall Length
7103 mm
8085 mm
-
Overall Height
3205 mm
3442 mm
-
Front Overhang
1336 mm
N/A
-
Chassis Depth
285 mm
N/A
-
Chassis Flange width
65 mm
N/A
-
Chassis Thickness
7 mm
N/A
-
Load Body Dimensions
14 Cu.M Box body# 20 Cu.M Box body
N/A
Key Comparison of Tata LPK 2518 HD - 6S vs Kamaz 6520 6x4
Compare Tata LPK 2518 HD - 6S vs Kamaz 6520 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata LPK 2518 HD - 6S with Kamaz 6520 6x4 on the basis of engine, specifications, payload, price, mileage and features. Tata LPK 2518 HD - 6S with a gross weight of , gives a power of whereas Kamaz 6520 6x4 produces of power and comes with a GVW of . Powering the Tata LPK 2518 HD - 6S truck is cylinder, engine whereas Kamaz 6520 6x4 gets powered by a cylinder, engine.
