Compare Tata LPT 4223 vs BharatBenz 4232R
Compare tata lpt 4223 vs bharatbenz 4232r
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/481_5742f9b64a884e84943596748fae53f2signa4223t-03.jpg]()
Tata LPT 4223
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/33822_bada6f6677b7407ca90a22f486e6d9c24232-thumb.png]()

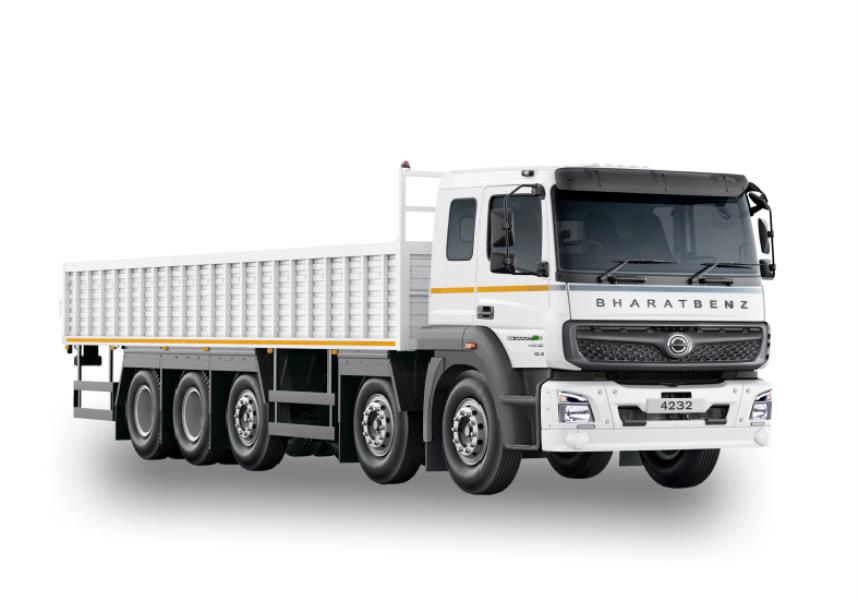

BharatBenz 4232R
-
Overviewof tata lpt 4223 vs bharatbenz 4232r
-
Power
228 HP@2500 rpm
306 HP@2300 rpm
-
Torque
810 Nm@ 1000-1800 rpm
1200 Nm@1200-1500 rpm
-
Engine
Cummins ISBe 5.9 CRDi SCR Technology
6D26
-
GVW (Kg)
42000 Kg
42000 Kg
-
Variants
Face Cowl and chassis Cabin and chassis Cabin with load body options
Cabin Chassis Cabin with load body
-
Body Length
Pusher Axle Option: 27.5 ft, 31.7 ft Tag Axle Option: 27 ft
24.1 ft 27.6 ft 30.2 ft 31.3 ft
-
Axle Configuration
10x2
10x2
-
Warranty
6 Years / 6 Lakh Km on driveline 3 Years / 3 Lakh Km on vehicle
-
Service Interval
80,000 Km (Oil change)
-
Additional
Multi Drive Mode: Heavy, Light Gear Shift Advisor
Multi drive modes Digital instrument cluster
-
Engine & Performanceof tata lpt 4223 vs bharatbenz 4232r
-
Engine
Cummins ISBe 5.9 CRDi SCR Technology
6D26
-
Power
228 HP@2500 rpm
306 HP@2300 rpm
-
Torque
810 Nm@ 1000-1800 rpm
1200 Nm@1200-1500 rpm
-
Fuel Injection System
Common Rail
-
Displacement
5883 cc
6700 cc
-
Cylinders
6
6
-
Transmission
6 speed manual (6F+1R)
9 speed (9F+1R)
-
Gearbox
G950 OD
G131, Synchromesh
-
Clutch
380 mm dia With clutch booster
395 mm dia Organic Single dry plate
-
Gradeability
18.3%
30.10%
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BSIV
BS6 OBD2
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
300 Litres (Pusher axle) 365 Litres (Tag axle)
Diesel: 380 Litres Ad Blue: 60 Litres
-
Battery
2x12V, 120 Ah Alternator: 120 Amps
12V x 2, 120 Ah
-
Design & Configurationof tata lpt 4223 vs bharatbenz 4232r
-
Variants
Face Cowl and chassis Cabin and chassis Cabin with load body options
Cabin Chassis Cabin with load body
-
Body Length
Pusher Axle Option: 27.5 ft, 31.7 ft Tag Axle Option: 27 ft
24.1 ft 27.6 ft 30.2 ft 31.3 ft
-
GVW
42000 Kg
42000 Kg
-
Axle Configuration
10x2
10x2
-
Cabin Type
Signa Sleeper cabin
Sleeper cabin Mid sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Ladder type with cross members
Ladder type with cross members
-
Front Axle
Forged I Beam, Reverse Elliot Type Twin steer axle
IF 7.0, Forged | Section-Reverse Elliot Type Twin steer
-
Rear Axle
RA 110 + RA 910 Pusher Lift axle Tag Lift axle (Optional)
Fully floating single reduction, RS440
-
Front Suspension
Parabolic leaf springs With telescopic shock absorbers
Parabolic leaf springs
-
Rear Suspension
Semi-elliptical leaf springs With Bell crank mechanism
Balancer type
-
Anti Roll Bar
Front and Rear (Optional)
-
Tyres
Option 1: 295/80R22.5 (Tubeless) Option 2: 295/90R20 (Tube) 14+1 tyres
295/90R20 295/80R22.5 (optional)
-
Wheelbase
6750 mm (Pusher axle) 6255 mm (Tag axle)
6575 mm 6775 mm
-
Turning Circle Diameter
23.25 m
24 m
-
Ground Clearance
210 mm
220 mm
-
Overall Length
10880 mm (Pusher axle) 10807 mm (Tag axle option)
9920 mm 10990 mm 11790 mm
-
Overall Width
2434 mm
2490 mm
-
Overall Height
2490 mm
-
Front Overhang
1260 mm
1485 mm
-
Rear Overhang
2155 mm (Pusher axle) 800 mm (Tag axle)
1185 mm 2255 mm 2855 mm
-
Front Track
2086 mm
-
Rear Track
1817 mm
-
Chassis Depth
285 mm
284 mm
-
Chassis Flange width
65 mm
70 mm
-
Chassis Thickness
7 mm
7 mm
-
Features & Comfortof tata lpt 4223 vs bharatbenz 4232r
-
Steering Type
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tiltable Telescopic
-
Driver Seat
6 way adjustable
6 way adjustable
-
Instrument cluster
Digital
Digital With mileage indicator
-
Cabin Suspension
Fully suspended
Fully Suspended
-
Automatic Transmission
-
Telematics
Optional
-
Air Conditioner AC
Optional
HVAC (Optional)
-
Quarter Ventilation Glass
-
Arm Rests
-
Mobile Charging Point
Available in Cabin option
-
Bottle Holder
Available in Cabin option
-
Music System
Optional
-
Cruise Control
-
Safetyof tata lpt 4223 vs bharatbenz 4232r
-
Service Brakes
Air brakes With automatic slack adjuster
Pneumatic - Dual line drum brakes with ABS
-
Parking Brakes
Graduated valve controlled spring brake Acting on rear axle
Pneumatically operated
-
Exhaust Brake
-
ABS
-
Seat Belts
-
Fog Light
Provision
-
Anti Roll Bar
Front and Rear (Optional)
-
Tubeless Tyres
Optional
Optional
-
Differential Lock
-
Reverse Gear Buzzer
Key Comparison of Tata LPT 4223 vs BharatBenz 4232R
Compare Tata LPT 4223 vs BharatBenz 4232R in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata LPT 4223 with BharatBenz 4232R on the basis of engine, specifications, payload, price, mileage and features. Tata LPT 4223 with a gross weight of 42000 Kg, gives a power of 228 HP@2500 rpm whereas BharatBenz 4232R produces 306 HP@2300 rpm of power and comes with a GVW of 42000 Kg. Powering the Tata LPT 4223 truck is 5883 cc 6 cylinder, 6D26 engine whereas BharatBenz 4232R gets powered by a 6 cylinder, 6700 cc engine.
