Compare Tata LPT 709 Ex CNG vs Tata 709g LPT CNG Twin Tyre
Compare tata lpt 709 ex cng vs Tata 709g LPT CNG Twin Tyre
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/521_08c327cc16824015aed18d96cbf5631f709g-lpt-gallery-02-removebg-preview.jpg]()

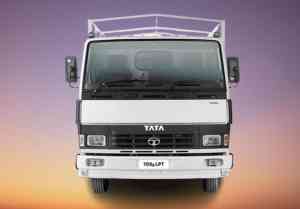

Tata LPT 709 Ex CNG
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4503_8dfcaee0758b4acfb4344a8dfd73c32etata709glpt (1).png]()
Tata 709g LPT CNG Twin Tyre
-
Overviewof
-
GVW (Kg)
7490 Kg
7490 Kg
-
Engine
Tata 3.8 SGI NA
3.8L SGI# Naturally Aspirated
-
Power
85 HP@2500 rpm
85 HP@2800 rpm
-
Torque
270 Nm@1500-1800 rpm
285 Nm@1200-1600 rpm
-
Axle Configuration
4x2
4x2
-
Variants
Cabin and chassis# Cabin with load body options
Cabin chassis with PTO# Cabin with load body
-
Load Body Options
N/A
Fixed Side Deck# High Side Deck
-
Body Length
16.7 ft
17 ft
-
Warranty
3 Years / 3 Lakh Km on driveline
3 Years / 3 Lakh Km on driveline
-
Service Interval
20,000 Km
20,000 Km (Oil change)
-
Additional
N/A
Gear Shift Advisor
-
Engine & Performanceof
-
Engine
Tata 3.8 SGI NA
3.8L SGI# Naturally Aspirated
-
Engine Displacement
3783 cc
3783 cc
-
Engine Cylinders
4
4
-
Power
85 HP@2500 rpm
85 HP@2800 rpm
-
Torque
270 Nm@1500-1800 rpm
285 Nm@1200-1600 rpm
-
Clutch
310 mm dia
280 mm dia
-
Transmission
5 speed manual (5F+1R)
5 speed (5F+1R)
-
Gearbox
GBS 27, Synchromesh
GBS 27
-
Emission Norms Compliance
BSIV
BS6
-
Fuel Type
CNG
CNG
-
Fuel Tank Capacity
300 Litres
300 Litres
-
Electricals Battery
12V, 100 Ah# Alternator: 65 Amps
12V, 75 Ah# Alternator: 65 Amps
-
Design & Configurationof
-
GVW
7490 Kg
7490 Kg
-
Vehicle Configuration
Cabin and chassis# Cabin with load body options
Cabin chassis with PTO# Cabin with load body
-
Load Body Options
N/A
Fixed Side Deck# High Side Deck
-
Loading Span
16.7 ft
17 ft
-
Cabin Type
Day cab
Day cab
-
Cabin Tilt mechanism
Manually tiltable
Manually tiltable
-
Chassis Frame
Ladder type with cross members
Ladder type with cross members
-
Axle Configuration
4x2
4x2
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type
-
Rear Axle
Fully Floating, Single reduction hypoid gears
Banjo type
-
Front Suspension
Semi-elliptical leaf springs# With telescopic shock absorbers
Semi elliptical leaf springs# With telescopic shock absorbers
-
Rear Suspension
Semi-elliptical leaf springs# With auxiliary springs
Semi elliptical leaf springs# With telescopic shock absorbers
-
Tyres
7.50x16-16 PR (Front) # 8.25x16–16 PR (Rear)# 6+1 tyres
7.50x16 -16 PR# 6+1 tyres
-
Wheelbase
3800 mm
3800 mm
-
Turning Circle Diameter
13.5 m
13.8 m
-
Ground Clearance
210 mm
230 mm
-
Overall Length
6875 mm
7170 mm
-
Overall Width
2155 mm
2255 mm
-
Overall Height
2341 mm (FSD)#2952 mm (HSD)
2940 mm
-
Load Body Width
2042 mm (FSD)# 2074 mm (HSD)
2117 mm / 6.94 ft
Key Comparison of Tata LPT 709 Ex CNG vs Tata 709g LPT CNG Twin Tyre
Compare Tata LPT 709 Ex CNG vs Tata 709g LPT CNG Twin Tyre in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata LPT 709 Ex CNG with Tata 709g LPT CNG Twin Tyre on the basis of engine, specifications, payload, price, mileage and features. Tata LPT 709 Ex CNG with a gross weight of , gives a power of whereas Tata 709g LPT CNG Twin Tyre produces of power and comes with a GVW of . Powering the Tata LPT 709 Ex CNG truck is cylinder, engine whereas Tata 709g LPT CNG Twin Tyre gets powered by a cylinder, engine.
