Compare Tata Prima 3530.TK vs Ashok Leyland 3525 TU H-Series

Compare tata prima 3530 tk vs ashok leyland 3525 tu h series


https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21306_08d3c56cab2c499da896d4eefc8acbf7Tata-Prima-3530-TK.png

Tata Prima 3530.TK

https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/33426_596542eca9a84aa8bf52e9daf079c09c3525 TU.jpg

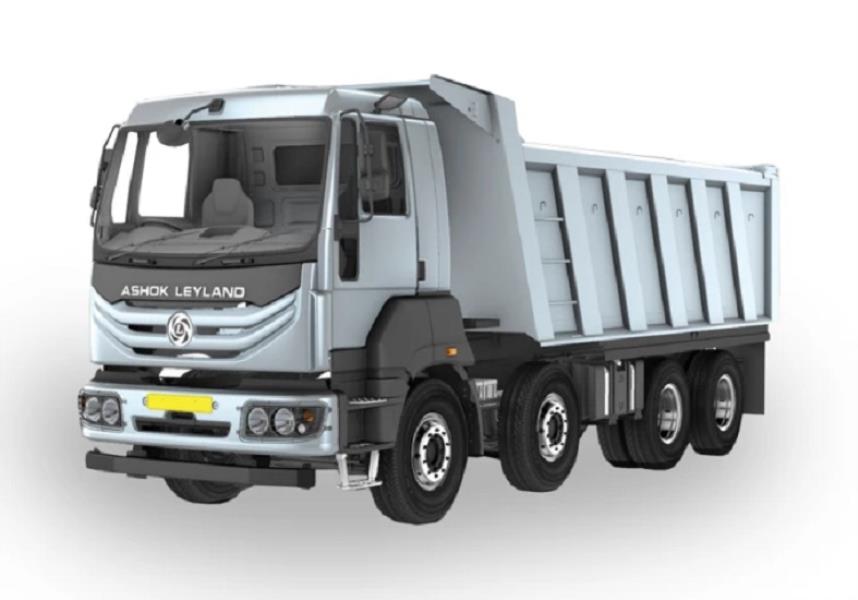

Ashok Leyland 3525 TU H-Series

Overviewof

GVW (Kg) 35000 Kg 35000 Kg
Axle Configuration 8x4 8x4
Engine Cummins ISBe 6.7L H series CRS
iGen6 technology
Power 300 HP@2300 rpm 246 HP@2400 rpm
Torque 1100 Nm@1100-1700 rpm 900 Nm@1200-1900 rpm
Transmission 9 speed (9F+1R) 9 speed (9F+1R)
Variants Cabin with Box body
Cabin with scoop body
Cabin with chassis
Cabin with load body
Load Body Options 23 Cu.m Box N/A
Additional Gear Shift Advisor
Fuel Economy Switch
Hill Start Assist
N/A

Engine & Performanceof

Engine Cummins ISBe 6.7L H series CRS
iGen6 technology
Fuel Injection System Common Rail Common Rail
Engine Displacement 6702 cc N/A
Engine Cylinders 6 6
Power 300 HP@2300 rpm 246 HP@2400 rpm
Torque 1100 Nm@1100-1700 rpm 900 Nm@1200-1900 rpm
Clutch 430 mm dia
Organic
430 mm dia
Single dry plate
Organic clutch
Air assisted clutch booster
Transmission 9 speed (9F+1R) 9 speed (9F+1R)
Gearbox G1150 N/A
Max Speed 60 Kmph 60 Kmph
Emission Norms Compliance BS6 OBD2 N/A
Fuel Type Diesel Diesel
Fuel Tank Capacity 300 Litres
with anti fuel theft
Diesel: 220 Litres

Design & Configurationof

GVW 35000 Kg 35000 Kg
Vehicle Configuration Cabin with Box body
Cabin with scoop body
Cabin with chassis
Cabin with load body
Load Body Options 23 Cu.m Box N/A
Cabin Type Day cab Value cabin
Cabin Tilt mechanism Hydraulically tiltable N/A
Chassis Frame Heavy duty straight frame with rivetted / bolted cross members Bolted ladder type
Axle Configuration 8x4 8x4
Front Axle Forged I Beam, Reverse Elliot Type N/A
Rear Axle Single reduction heavy duty rear axle with differential lock Fully floating, Single speed, Hypoid diffrential
RAR 5.83/7.2 HR
Front Suspension Parabolic leaf springs Semi elliptical multileaf
Parabolic springs
Rear Suspension Bogie suspension
Ultimax suspension (Optional)
NRS semi elliptical
Bogie
Tyres 11x20 Mining Tyres
12x24 Mining Tyres
295/90R20
295/90D20
11R20 16PR
11x20 16PR
11x20 Mining 18PR
Wheelbase 5200 mm 5250 mm

Features & Comfortof

Cabin Suspension Fully suspended N/A
Steering Power Steering Power steering
Steering Adjustment Tilt and telescopic Tilt and telescopic
Driver Seat 6 way adjustable 6 way adjustable
Air Conditioner (AC) Optional Optional
Quarter Ventilation Glass No N/A
Instrument Cluster Digital
With mileage indicator
Distance to empty
Digital
With analog dials
Telematics Yes Yes
Music System Optional N/A
Mobile Charging Point Yes N/A
Bottle Holder Yes N/A
Automatic Transmission No No

Safetyof

Service Brakes Air brakes Full air dual line brakes with ABS
With ASA
Drum brakes with engine brakes
Exhaust Brake Engine brake fitted N/A
ABS Yes Yes
Differential Lock Yes No
Seat Belts Yes Yes
Reverse Parking_Buzzer Yes Yes
Fog Light No N/A
Tubeless Tyres No N/A

Key Comparison of Tata Prima 3530.TK vs Ashok Leyland 3525 TU H-Series

Compare Tata Prima 3530.TK vs Ashok Leyland 3525 TU H-Series in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima 3530.TK with Ashok Leyland 3525 TU H-Series on the basis of engine, specifications, payload, price, mileage and features. Tata Prima 3530.TK with a gross weight of , gives a power of whereas Ashok Leyland 3525 TU H-Series produces of power and comes with a GVW of . Powering the Tata Prima 3530.TK truck is cylinder, engine whereas Ashok Leyland 3525 TU H-Series gets powered by a cylinder, engine.
