Compare Tata Prima LX 2523.T vs Ashok Leyland 2620 AVTR
Compare tata prima lx 2523 t vs Ashok Leyland 2620 AVTR
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/Prima LX 2523.png]()

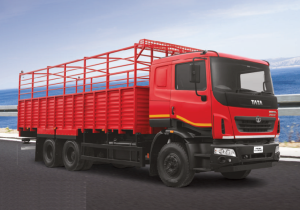

Tata Prima LX 2523.T
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/11502_5876305ea3004ae0a617df8112e57256ashok-leyland-2620-6x2.jpg]()
Ashok Leyland 2620 AVTR
-
Overviewof
-
GVW (Kg)
25000 Kg
25500 Kg
-
Engine
Cummins ISBe 5.9 230# Direct Injection, Turbo-charged
H series CRS# iGen-6 technology
-
Power
230 HP@2500 rpm
200 HP@2400 rpm
-
Torque
850 Nm@1400-1700 rpm
700 Nm@1200-1900 rpm
-
Payload
N/A
16.75 Ton
-
Axle Configuration
6x2
6x2
-
Variants
Cabin with load body options
Cowl with Chassis# Cabin and chassis
-
Body Length
24 ft# 32 ft
24 ft# 26 ft# 28 ft# 30 ft# 32 ft
-
Warranty
4 Years / 4 Lakh Km on driveline# 2 Years / 2 Lakh Km on vehicle
4 Years / 4 Lakh km on driveline
-
Service Interval
60,000 Km (Oil change)
40,000 Km (Oil change)
-
Additional
N/A
Gear Shift Advisor
-
Engine & Performanceof
-
Engine
Cummins ISBe 5.9 230# Direct Injection, Turbo-charged
H series CRS# iGen-6 technology
-
Fuel Injection System
Common Rail
Common Rail
-
Engine Displacement
5883 cc
5660 cc
-
Engine Cylinders
6
6
-
Power
230 HP@2500 rpm
200 HP@2400 rpm
-
Torque
850 Nm@1400-1700 rpm
700 Nm@1200-1900 rpm
-
Clutch
380 mm dia# With clutch booster
380 mm dia# With clutch booster
-
Transmission
6 speed manual (6F+1R)
6 speed (6F+1R)# With cable shift
-
Gearbox
Eaton ES 9306-A DD
ZF 6S 850
-
Max Speed
100 Kmph
80 Kmph# 60 KMPH (for POL variant)
-
Emission Norms Compliance
BSIII
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
400 Litres
Diesel: 375 Litres# Ad Blue: 48 Litres# Polymer tank
-
Electricals Battery
N/A
24V, 120 Ah / 150 Ah (AC)
-
Design & Configurationof
-
GVW
25000 Kg
25500 Kg
-
Payload
N/A
16.75 Ton
-
Vehicle Configuration
Cabin with load body options
Cowl with Chassis# Cabin and chassis
-
Loading Span
24 ft# 32 ft
24 ft# 26 ft# 28 ft# 30 ft# 32 ft
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Chassis Frame
Ladder type with cross members
HSS material, bolted construction
-
Axle Configuration
6x2
6x2
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type# Unitized wheel bearings (Optional)
-
Rear Axle
RA 110# RAR: 5.12
Fully floating, Single speed# RAR 5.29 / 5.57 / 6.17# Unitized wheel bearings (Optional)
-
Front Suspension
Parabolic leaf springs with tandem suspension
Semi elliptical leaf springs# Parabolic leaf spring (Optional)
-
Rear Suspension
Semi-elliptical leaf springs# With Bell crank mechanism
Semi elliptical leaf springs# With helper springs
-
Anti Roll Bar
N/A
Optional in front
-
Tyres
10R20-16 PR Radial# Nylon tyres (Optional)# 10+1 tyres
295/90R20 (Tube)# 8+1 tyres
-
Wheelbase
5275 mm# 6400 mm
4930 mm# 5130 mm# 5430 mm# 5880 mm# 6180 mm
-
Turning Circle Diameter
19.7 m (5275 wb)# 21.3 m (6400 wb)
20.2 m (24 ft body)# 22 m (26 ft)# 22.9 m (28 ft)# 23.8 m (30 ft)# 24 m (32 ft)
-
Ground Clearance
270 mm
253 mm
-
Overall Length
10009 mm (5275 wb)# 11910 mm (6400 wb)
9710 mm (24 ft body)# 10360 mm (26 ft)# 10960 mm (28 ft)# 11560 mm (30 ft)# 11960 mm (32 ft)
-
Overall Width
2440 mm
2570 mm
-
Overall Height
N/A
2987 mm (M Cabin)# 3247 mm (U Cabin)# 3177 mm (N Cabin)
-
Front Overhang
1482 mm
1550 mm
-
Front Track
N/A
2084 mm
-
Rear Track
N/A
1876 mm
-
Features & Comfortof
-
Steering
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Rigid (In Cowl)# Tilt and telescopic (U / N cab)
-
Air Conditioner (AC)
Optional
Optional
-
Instrument Cluster
Digital
Digital# With mileage indicator
-
Telematics
Telematics unit as standard fitment# Service activation (Optional)
Yes
-
Music System
No
No
-
Mobile Charging Point
N/A
Yes
-
Bottle Holder
Yes
Yes
-
Automatic Transmission
No
No
-
Cruise Control
No
No
-
Safetyof
-
Service Brakes
Air brakes
Air brakes# With ASA
-
Parking Brakes
N/A
Acting on rear axle
-
Exhaust Brake
N/A
Yes
-
ABS
Yes
Yes
-
Anti Roll Bar
N/A
Optional in front
-
Differential Lock
N/A
No
-
Seat Belts
Yes
Yes
-
Reverse Parking_Buzzer
N/A
Yes
-
Tubeless Tyres
No
Optional
Key Comparison of Tata Prima LX 2523.T vs Ashok Leyland 2620 AVTR
Compare Tata Prima LX 2523.T vs Ashok Leyland 2620 AVTR in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima LX 2523.T with Ashok Leyland 2620 AVTR on the basis of engine, specifications, payload, price, mileage and features. Tata Prima LX 2523.T with a gross weight of , gives a power of whereas Ashok Leyland 2620 AVTR produces of power and comes with a GVW of . Powering the Tata Prima LX 2523.T truck is cylinder, engine whereas Ashok Leyland 2620 AVTR gets powered by a cylinder, engine.
