Compare Tata Prima LX 2530.K vs Man CLA 25.250 EVO 6x4
Compare tata prima lx 2530 k vs man cla 25 250 evo 6x4
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/539_989195860a3245e5b731ff303d228290tata-prima-2530k-tipper-truck-price-removebg-preview.png]()

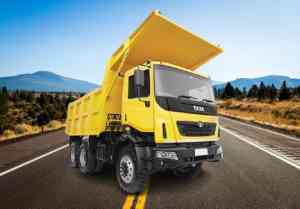

Tata Prima LX 2530.K
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/16603_89b981988e8f4cfea5cbb344a44702ebMan CLA 25.250 EVO 6x4.jpg]()
Man CLA 25.250 EVO 6x4
Overviewof
| GVW (Kg) |
25000 Kg |
25000 Kg |
|
| Axle Configuration |
6x4 |
6x4 |
|
| Engine |
Cummins ISBe 6.7
SCR Technology |
Man D-0836 |
|
| Power |
300 HP@2500 rpm |
255 HP@2300 rpm |
|
| Torque |
1100 Nm@1200-1800 rpm |
1150 Nm@1200-1850 rpm |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 Speed (9F+1R) |
|
| Variants |
Cabin with Box body |
Cabin with rock body |
|
| Warranty |
6 Years / 6000 Hrs on driveline
3 Years / 3000 Hrs on vehicle |
N/A |
|
| Service Interval |
1500 Hrs (Oil change) |
N/A |
|
Engine & Performanceof
| Engine |
Cummins ISBe 6.7
SCR Technology |
Man D-0836 |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
6693 cc |
6900 cc |
|
| Power |
300 HP@2500 rpm |
255 HP@2300 rpm |
|
| Torque |
1100 Nm@1200-1800 rpm |
1150 Nm@1200-1850 rpm |
|
| Clutch |
Single dry plate, 430 mm dia
Organic |
Single plate, Power assisted |
|
| Transmission |
9 speed manual (8F+1CR+1R) |
9 Speed (9F+1R) |
|
| Gearbox |
ZF 9S 1115 TD |
Synchromesh |
|
| Gradeability |
61% |
49% (First gear)
32% (Crawler gear) |
|
| Max Speed |
89 Kmph |
60 Kmph |
|
| Emission Norms Compliance |
BSIV |
BS4 |
|
| Fuel Tank Capacity |
Diesel: 260 Litres
Ad-blue: 35 Litres |
300 Litres |
|
Design & Configurationof
| Vehicle Configuration |
Cabin with Box body |
Cabin with rock body |
|
| Cabin Type |
Day cab |
Day cab |
|
| Cabin Tilt mechanism |
Tiltable cabin |
Hydraulically tiltable |
|
| Chassis Frame |
Ladder type with cross members |
C channel rolled section |
|
| Axle Configuration |
6x4 |
6x4 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Drop Forged I-Beam type, Maintence free Hub Bearings |
|
| Rear Axle |
Planetary Hub reduction axle
RAR: 7.246 |
Planetary axles With Hub Reduction
Stabliser for rear axle |
|
| Front Suspension |
Parabolic leaf springs |
Semi elliptical leaf springs
With double acting shock absorbers |
|
| Rear Suspension |
Bogie suspension |
Bogie suspension |
|
| Anti Roll Bar |
Front and Rear |
N/A |
|
| Tyres |
11x20 - 18 PR
Crossply |
11x20 |
|
| Wheelbase |
4570 mm |
4525 mm |
|
| Ground Clearance |
262 mm |
292 mm (Front)
272 mm (Rear) |
|
| Chassis Flange width |
90 mm |
N/A |
|
| Chassis Thickness |
8 mm |
N/A |
|
| Load Body Dimensions |
18 Cu.M Box body |
N/A |
|
Features & Comfortof
| Cabin Suspension |
Fully suspended |
N/A |
|
| Steering |
Power steering |
Power Steering |
|
| Steering Adjustment |
Tilt and telescopic
Electronic control |
Tilt and telescopic |
|
| Driver Seat |
6 way adjustable |
6 way adjustable
Air suspended |
|
| Air Conditioner (AC) |
Yes |
Yes |
|
| Quarter Ventilation Glass |
No |
No |
|
| Instrument Cluster |
Digital |
Digital
With on board diagnostics |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Automatic Transmission |
No |
N/A |
|
Safetyof
| Service Brakes |
Air Brakes |
Air brakes
Electronic Brake System (EBS) |
|
| Anti Roll Bar |
Front and Rear |
N/A |
|
Key Comparison of Tata Prima LX 2530.K vs Man CLA 25.250 EVO 6x4
Compare Tata Prima LX 2530.K vs Man CLA 25.250 EVO 6x4 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Prima LX 2530.K with Man CLA 25.250 EVO 6x4 on the basis of engine, specifications, payload, price, mileage and features. Tata Prima LX 2530.K with a gross weight of , gives a power of whereas Man CLA 25.250 EVO 6x4 produces of power and comes with a GVW of . Powering the Tata Prima LX 2530.K truck is cylinder, engine whereas Man CLA 25.250 EVO 6x4 gets powered by a cylinder, engine.
