Compare Tata Signa 3518.T vs BharatBenz 3526R
Compare tata signa 3518 t vs bharatbenz 3526r
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4286_tata-signa-3518-t-12-wheeler-truck.jpg]()
Tata Signa 3518.T
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/33818_ee7bf98db99e41f7ba50fc06e77b93ad3526-thumb - Copy.png]()

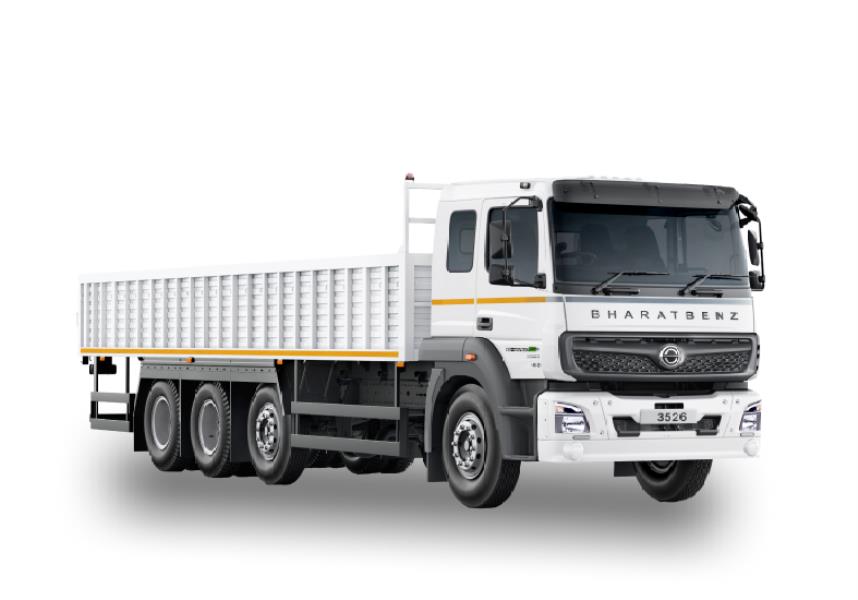

BharatBenz 3526R
-
Overviewof
-
GVW (Kg)
35000 Kg
35000 Kg
-
Engine
Cummins ISBe 5.6L
6D26
-
Power
186 HP@2300 rpm
250 HP@2300 rpm
-
Torque
850 Nm@1000-1600 rpm
950 Nm@1000-1800 rpm
-
Axle Configuration
8x2
8x2
-
Variants
Cabin and chassis# Cabin with load body
Cabin Chassis# Cabin with load body
-
Body Length
22 ft# 24 ft# 28 ft
25.9 ft# 27.9 ft# 32.2 ft
-
Additional
Gear Shift Advisor# 3 mode Fuel Economy Switch
Multi drive modes# Digital instrument cluster
-
Engine & Performanceof
-
Engine
Cummins ISBe 5.6L
6D26
-
Engine Displacement
5635 cc
6700 cc
-
Engine Cylinders
6
6
-
Power
186 HP@2300 rpm
250 HP@2300 rpm
-
Torque
850 Nm@1000-1600 rpm
950 Nm@1000-1800 rpm
-
Clutch
380 mm dia
395 mm dia# Organic# Single dry plate
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Gearbox
G950
G85, Synchromesh with OD
-
Gradeability
N/A
20.50%
-
Max Speed
80 Kmph
80 Kmph
-
Emission Norms Compliance
BS6
BS6 OBD2
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
365 Litres# Polymer tank# With anti-fuel theft
Diesel: 380 Litres# Ad Blue: 60 Litres
-
Electricals Battery
N/A
12V x 2, 120 Ah
-
Design & Configurationof
-
Chassis Thickness
8.5 mm
8 mm
-
GVW
35000 Kg
35000 Kg
-
Vehicle Configuration
Cabin and chassis# Cabin with load body
Cabin Chassis# Cabin with load body
-
Loading Span
22 ft# 24 ft# 28 ft
25.9 ft# 27.9 ft# 32.2 ft
-
Cabin Type
Sleeper cabin
Sleeper cabin# Compact sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Ladder type straight frame
Ladder type with cross members
-
Axle Configuration
8x2
8x2
-
Front Axle
Forged I Beam, Reverse Elliot Type# With lift axle
IF 7.0, Forged | Section-Reverse Elliot Type
-
Rear Axle
Single reduction RA 110LD# RAR: 5.12
Fully floating single reduction, RS440
-
Front Suspension
Front axle: Parabolic leaf springs# Pusher axle: Pneumatic Lift
Parabolic leaf springs
-
Rear Suspension
Semi elliptical leaf springs# Bell crank
Balancer type
-
Tyres
295/90R20 (Tube)# 12+1 tyres
295/90R20# 295/80R22.5 (optional)
-
Wheelbase
5205 mm# 5505 mm# 5905 mm
5775 mm# 6375 mm
-
Turning Circle Diameter
19.9 m (5205 wb)# 21.5 m (5505 wb)# 22.38 m (5905 wb)
21.6 m# 23.7 m
-
Ground Clearance
N/A
210 mm
-
Overall Length
N/A
10490 mm# 11090 mm
-
Overall Width
2440 mm
2490 mm
-
Overall Height
N/A
2960 mm
-
Front Overhang
N/A
1485 mm
-
Rear Overhang
2570 mm (5205 wb)# 2870 mm (5505 wb)# 2505 mm (5905 wb)
2555 mm# 3455 mm
-
Chassis Depth
285 mm
286 mm
-
Chassis Flange width
65 mm
70 mm
-
Features & Comfortof
-
Cabin Suspension
Fully suspended
Fully Suspended
-
Steering
Power Steering
Power Steering
-
Steering Adjustment
Tilt and telescopic
Tiltable# Telescopic
-
Driver Seat
4 way adjustable
6 way adjustable
-
Arm Rests
N/A
Yes
-
Air Conditioner (AC)
Optional
HVAC (Optional)
-
Quarter Ventilation Glass
No
No
-
Instrument Cluster
Digital# With mileage indicator# Distance to empty
Digital# With mileage indicator
-
Telematics
Yes
Yes
-
Music System
Touchscreen infotainment system (Optional)
Optional
-
Mobile Charging Point
Yes
Yes
-
Bottle Holder
Yes
Yes
-
Automatic Transmission
No
No
-
Cruise Control
No
Yes
Key Comparison of Tata Signa 3518.T vs BharatBenz 3526R
Compare Tata Signa 3518.T vs BharatBenz 3526R in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Signa 3518.T with BharatBenz 3526R on the basis of engine, specifications, payload, price, mileage and features. Tata Signa 3518.T with a gross weight of , gives a power of whereas BharatBenz 3526R produces of power and comes with a GVW of . Powering the Tata Signa 3518.T truck is cylinder, engine whereas BharatBenz 3526R gets powered by a cylinder, engine.
