Compare Tata Signa 4025.S vs Ashok Leyland 4020 AM
Compare tata signa 4025s vs ashok leyland 4020 am
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/20996_9bbab283195b4c96b1d717e25823d968tata-signa-4025-s.png]()
Tata Signa 4025.S
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/33445_487867ed400f4f98877480528b4595004020 AN1.jpg]()

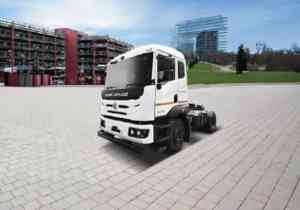

Ashok Leyland 4020 AM
-
Overviewof tata signa 4025s vs ashok leyland 4020 am
-
Power
300 HP@2300 RPM
198 HP@2400 rpm
-
Torque
950 Nm@1000-1800 rpm
700 Nm@1200-1900 rpm
-
Engine
Cummins ISBE 6.7L
H series CRS iGen6 technology
-
GCW (Kg)
39500 Kg
39500 Kg
-
Axle Configuration
4x2
4x2
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Warranty
6 Years / 6 Lakh km on driveline 3 Years / 3 Lakh km on vehicle
-
Service Interval
80,000 Km (Oil change)
-
Additional
Gear Shift Advisor 3 mode Fuel Economy Switch
-
Engine & Performanceof tata signa 4025s vs ashok leyland 4020 am
-
Engine
Cummins ISBE 6.7L
H series CRS iGen6 technology
-
Power
300 HP@2300 RPM
198 HP@2400 rpm
-
Torque
950 Nm@1000-1800 rpm
700 Nm@1200-1900 rpm
-
Fuel Injection System
Common Rail
Common Rail
-
Displacement
6702 cc
5660 cc
-
Cylinders
6
6
-
Transmission
6 speed (6F+1R)
6 speed (6F+1R)
-
Gearbox
G950 (9.36) DD
Synchromesh
-
Clutch
430 mm pull type diaSingle plate dry friction type
380 mm dia Air assisted hydraulic booster
-
Max Speed
80 Kmph
80 Kmph
-
Emission
BS6 OBD2
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank
365 Litres HDPE (Plastic tank)
Diesel: 375 Litres Polymer tank
-
Battery
2x12V,100 Ah
24V, 120 Ah / 150 Ah (AC)
-
Design & Configurationof tata signa 4025s vs ashok leyland 4020 am
-
Axle Configuration
4x2
4x2
-
Cabin Type
Sleeper cabin
Economy cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
-
Chassis Frame
Ladder type straight frame
Bolted ladder type
-
Front Axle
Forged I beam reverse elliot type
Forgerd I Section - Reverse Elliot Type
-
Rear Axle
Fully floating, Single speed
-
Front Suspension
Parabolic leaf springs With telescopic shock absorbers
Parabolic springs Optional : Semi elliptic multi leaf
-
Rear Suspension
Semi elliptical leaf springs
Semi elliptic multi leaf Parabolic helper springs
-
Tyres
295/90R20 (Tube) 6+1 tyres
295/90R20
-
Wheelbase
3300 mm
3200 mm
-
Turning Circle Diameter
11.6 m
-
Ground Clearance
Front: 290 mm Rear: 230 mm
-
Overall Length
5600 mm
-
Overall Width
2570 mm
-
Overall Height
2987 mm
-
Features & Comfortof tata signa 4025s vs ashok leyland 4020 am
-
Steering Type
Power Steering
Power steering
-
Steering Adjustment
Tilt and telescopic
-
Driver Seat
4 way adjustable Mechanically suspended
4 way adjustable
-
Instrument cluster
Digital With mileage indicator Distance to empty
Digital With analog dials
-
Cabin Suspension
Fully suspended
-
Automatic Transmission
-
Telematics
-
Quarter Ventilation Glass
-
Mobile Charging Point
-
Bottle Holder
-
Music System
Touchscreen infotainment system (Optional)
-
Cruise Control
-
Safetyof tata signa 4025s vs ashok leyland 4020 am
-
Service Brakes
Air brakes
Full air dual line brakes with ABS
-
Parking Brakes
Graduated valve controlled spring brake Acting on rear axle
-
ABS
-
Seat Belts
-
Fog Light
-
Tubeless Tyres
Optional
-
Differential Lock
-
Reverse Gear Buzzer
Key Comparison of Tata Signa 4025.S vs Ashok Leyland 4020 AM
Compare Tata Signa 4025.S vs Ashok Leyland 4020 AM in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Signa 4025.S with Ashok Leyland 4020 AM on the basis of engine, specifications, payload, price, mileage and features. Tata Signa 4025.S with a gross weight of , gives a power of 300 HP@2300 RPM whereas Ashok Leyland 4020 AM produces 198 HP@2400 rpm of power and comes with a GVW of . Powering the Tata Signa 4025.S truck is 6702 cc 6 cylinder, H series CRS# iGen6 technology engine whereas Ashok Leyland 4020 AM gets powered by a 6 cylinder, 5660 cc engine.
