Compare Tata Signa 4825.TK Bogie vs Ashok Leyland 4825 10x2 DTLA Tipper
Compare tata signa 4825 tk bogie vs ashok leyland 4825 10x2 dtla tipper
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/4299_6ffc8bc681b24d66949709f7bd90b6d34299_tata-signa-4825-tipper-dumper-removebg-preview.jpg]()
Tata Signa 4825.TK Bogie
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/17917_fe49a24251184ca5ba115e2606bb7d30ashok-leyland-4825-10x2-tipper1.jpg]()

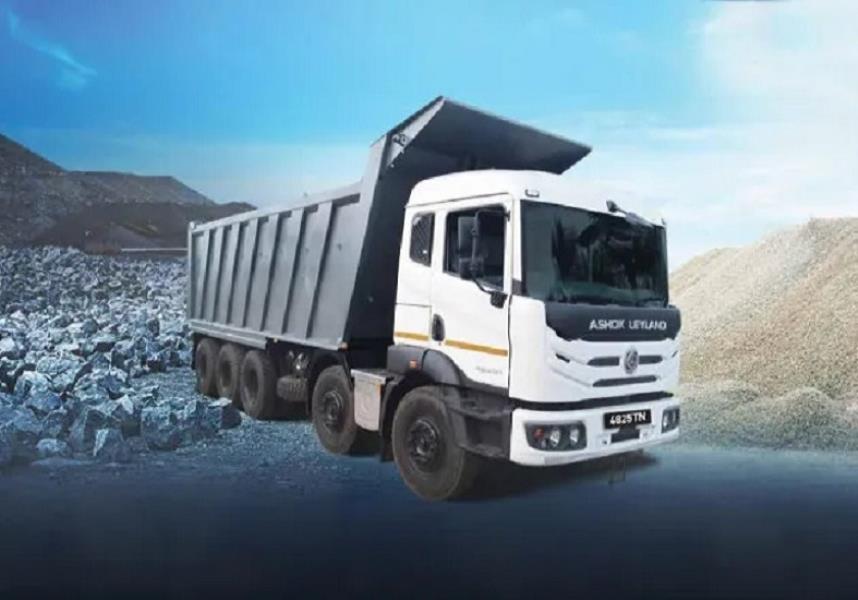

Ashok Leyland 4825 10x2 DTLA Tipper
-
Overviewof
-
GVW (Kg)
47500 Kg
47500 Kg
-
Axle Configuration
10x4
10x2
-
Engine
Cummins ISBe 6.7L
A series CRS# iGen-6 technology
-
Power
250 HP@2300 rpm
248 HP
-
Torque
950 Nm@1000-1700 rpm
900 Nm@1100-1800 rpm
-
Transmission
9 speed (9F+1R)
9 speed (9F+1R)
-
Variants
Cabin and chassis# Cabin with Box body
Cabin with Box body
-
Load Body Options
29 Cu.M Box body
29 / 23 / 18 Cu.M Box body
-
Additional
Gear Shift Advisor# Fuel Economy Switch# Hill Start Assist
Gear Shift Advisor
-
Engine & Performanceof
-
Engine
Cummins ISBe 6.7L
A series CRS# iGen-6 technology
-
Fuel Injection System
Common Rail
Common Rail
-
Engine Displacement
6692 cc
5300 cc
-
Engine Cylinders
6
4
-
Power
250 HP@2300 rpm
248 HP
-
Torque
950 Nm@1000-1700 rpm
900 Nm@1100-1800 rpm
-
Clutch
430 mm dia# Organic
395 mm dia
-
Transmission
9 speed (9F+1R)
9 speed (9F+1R)
-
Gearbox
G1150
9S
-
Gradeability
N/A
23.3%
-
Max Speed
N/A
60 Kmph
-
Emission Norms Compliance
BS6
BS6
-
Fuel Type
Diesel
Diesel
-
Fuel Tank Capacity
N/A
Diesel: 300 Litres# Ad Blue: 24 Litres# Polymer tank
-
Electricals Battery
N/A
24V, 120 Ah / 150 Ah (AC)
-
Design & Configurationof
-
GVW
47500 Kg
47500 Kg
-
Vehicle Configuration
Cabin and chassis# Cabin with Box body
Cabin with Box body
-
Load Body Options
29 Cu.M Box body
29 / 23 / 18 Cu.M Box body
-
Cabin Type
Sleeper cabin
Sleeper cabin
-
Cabin Tilt mechanism
Hydraulically tiltable
Hydraulically tiltable
-
Chassis Frame
Ladder type straight frame
HSS material, bolted construction
-
Axle Configuration
10x4
10x2
-
Front Axle
Forged I Beam, Reverse Elliot Type
Forged I Beam, Reverse Elliot Type
-
Rear Axle
Single reduction, Hypoid gears, Fully Floating Axle
Fully floating, Single speed# RAR 5.86
-
Front Suspension
Parabolic leaf springs
Semi elliptical leaf springs# Parabolic leaf spring (Optional)
-
Rear Suspension
Bogie suspension
Semi elliptical leaf springs
-
Anti Roll Bar
N/A
Front
-
Tyres
295/90R20 (10x2)# 11R20 (10x4)# 16+1 tyres
11R20# 11x20# 16+1 tyres
-
Wheelbase
6750 mm
6600 mm
-
Chassis Depth
N/A
275 mm
-
Chassis Flange width
N/A
75 mm
-
Chassis Thickness
N/A
8+6 mm
-
Safetyof
-
Service Brakes
Air brakes
Air brakes# With ASA
-
Parking Brakes
N/A
Acting on rear axle
-
Exhaust Brake
Engine brake fitted
Yes
-
ABS
Yes
Yes
-
Anti Roll Bar
N/A
Front
-
Differential Lock
Yes
No
-
Seat Belts
Yes
Yes
-
Reverse Parking_Buzzer
Yes
Yes
-
Fog Light
No
No
-
Tubeless Tyres
No
Optional
Key Comparison of Tata Signa 4825.TK Bogie vs Ashok Leyland 4825 10x2 DTLA Tipper
Compare Tata Signa 4825.TK Bogie vs Ashok Leyland 4825 10x2 DTLA Tipper in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Signa 4825.TK Bogie with Ashok Leyland 4825 10x2 DTLA Tipper on the basis of engine, specifications, payload, price, mileage and features. Tata Signa 4825.TK Bogie with a gross weight of , gives a power of whereas Ashok Leyland 4825 10x2 DTLA Tipper produces of power and comes with a GVW of . Powering the Tata Signa 4825.TK Bogie truck is cylinder, engine whereas Ashok Leyland 4825 10x2 DTLA Tipper gets powered by a cylinder, engine.
