Compare Tata Ultra 3525.T vs Tata LPT 3525
Compare tata ultra 3525 t vs tata lpt 3525
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21687_0624c3c6b68645b4b8491b818c23fa46Tata-Ultra-3525-T.jpg]()
Tata Ultra 3525.T
![https://res.cloudinary.com/dz4x78ghb/image/fetch/c_scale,q_30,w_300,f_auto/https://www.trucksbuses.com/uploads/21022_be71375a4fd54e638ec31de74d56c14ftata-lpt-3525.jpg]()

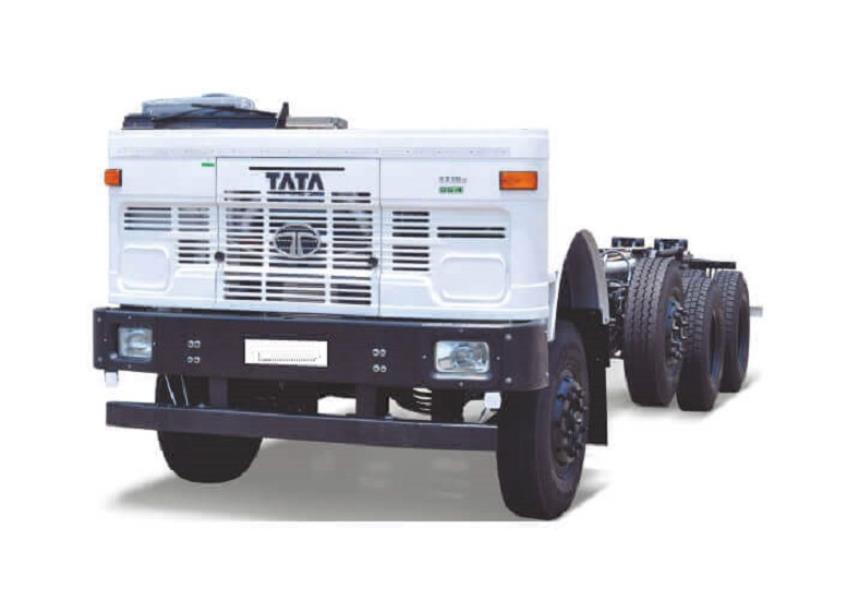

Tata LPT 3525
Overviewof
| GVW (Kg) |
35000 Kg |
35000 Kg |
|
| Engine |
Cummins ISBe 6.7L |
Cummins ISBE 6.7L |
|
| Power |
250 HP@2300 rpm |
250 HP |
|
| Torque |
1100 Nm@1100-1700 rpm |
950 Nm |
|
| Axle Configuration |
8x2 |
8x2 |
|
| Variants |
Cabin and chassis
Cabin with load body |
Cowl chassis |
|
| Load Body Options |
Fixed Side Deck
High Side Deck
Container |
N/A |
|
| Body Length |
22 ft
24 ft
28 ft
32 ft |
22 ft
24 ft
28 ft
32 ft |
|
| Warranty |
6 Years / 6 Lakh km on driveline
3 Years / 3 Lakh km on vehicle |
6 Years / 6 Lakh km on driveline
3 Years / 3 Lakh km on vehicle |
|
| Service Interval |
80,000 Km (Oil change) |
N/A |
|
| Additional |
Gear Shift Advisor
2 mode Fuel Economy Switch |
Gear Shift Advisor
2 mode Fuel Economy Switch |
|
| GVW (Kg) |
35000 Kg |
35000 Kg |
|
| Engine |
Cummins ISBe 6.7L |
Cummins ISBE 6.7L |
|
| Power |
250 HP@2300 rpm |
250 HP |
|
| Torque |
1100 Nm@1100-1700 rpm |
950 Nm |
|
| Axle Configuration |
8x2 |
8x2 |
|
| Variants |
Cabin and chassis
Cabin with load body |
Cowl chassis |
|
| Load Body Options |
Fixed Side Deck
High Side Deck
Container |
N/A |
|
| Body Length |
22 ft
24 ft
28 ft
32 ft |
22 ft
24 ft
28 ft
32 ft |
|
| Warranty |
6 Years / 6 Lakh km on driveline
3 Years / 3 Lakh km on vehicle |
6 Years / 6 Lakh km on driveline
3 Years / 3 Lakh km on vehicle |
|
| Service Interval |
80,000 Km (Oil change) |
N/A |
|
| Additional |
Gear Shift Advisor
2 mode Fuel Economy Switch |
Gear Shift Advisor
2 mode Fuel Economy Switch |
|
Engine & Performanceof
| Engine |
Cummins ISBe 6.7L |
Cummins ISBE 6.7L |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
6702 cc |
6702 cc |
|
| Power |
250 HP@2300 rpm |
250 HP |
|
| Torque |
1100 Nm@1100-1700 rpm |
950 Nm |
|
| Clutch |
380 mm dia
Organic |
395 mm dia |
|
| Transmission |
6 speed (6F+1R) |
6 speed (6F+1R) |
|
| Max Speed |
80 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BS6 OBD2 |
BS6 OBD2 |
|
| Fuel Tank Capacity |
365 Litres
Polymer tank
With anti-fuel theft |
365 Litres HDPE (Plastic tank) |
|
| Engine |
Cummins ISBe 6.7L |
Cummins ISBE 6.7L |
|
| Fuel Injection System |
Common Rail |
Common Rail |
|
| Engine Displacement |
6702 cc |
6702 cc |
|
| Power |
250 HP@2300 rpm |
250 HP |
|
| Torque |
1100 Nm@1100-1700 rpm |
950 Nm |
|
| Clutch |
380 mm dia
Organic |
395 mm dia |
|
| Transmission |
6 speed (6F+1R) |
6 speed (6F+1R) |
|
| Max Speed |
80 Kmph |
80 Kmph |
|
| Emission Norms Compliance |
BS6 OBD2 |
BS6 OBD2 |
|
| Fuel Tank Capacity |
365 Litres
Polymer tank
With anti-fuel theft |
365 Litres HDPE (Plastic tank) |
|
Design & Configurationof
| Vehicle Configuration |
Cabin and chassis
Cabin with load body |
Cowl chassis |
|
| Load Body Options |
Fixed Side Deck
High Side Deck
Container |
N/A |
|
| Loading Span |
22 ft
24 ft
28 ft
32 ft |
22 ft
24 ft
28 ft
32 ft |
|
| Cabin Type |
Sleeper cabin |
N/A |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
N/A |
|
| Chassis Frame |
Ladder type straight frame |
Ladder type |
|
| Axle Configuration |
8x2 |
8x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Forged 7T I beam reverse elliot type |
|
| Rear Axle |
Single reduction RA 110LD
RAR: 5.12 |
RA-110LD at RFWD
RA 909 at RRWD |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic leaf springs |
|
| Rear Suspension |
Semi elliptical leaf springs
Bell crank |
Semi elliptical leaf springs
Bell crank |
|
| Tyres |
295/90R20 (Tube)
12+1 tyres |
295/90R20 (Tube)
12+1 tyres |
|
| Wheelbase |
5205 mm
5505 mm
5905 mm
6750 mm |
N/A |
|
| Turning Circle Diameter |
19.9 m (5205 wb)
21.5 m (5505 wb)
22.38 m (5905 wb)
23.2 m (6750 wb) |
N/A |
|
| Overall Length |
9035 mm (5205 wb)
9635 mm (5505 wb)
10385 mm (5905 wb) |
N/A |
|
| Chassis Flange width |
65 mm |
N/A |
|
| Chassis Thickness |
8.5 mm
7 mm (68 wb) |
N/A |
|
| Vehicle Configuration |
Cabin and chassis
Cabin with load body |
Cowl chassis |
|
| Load Body Options |
Fixed Side Deck
High Side Deck
Container |
N/A |
|
| Loading Span |
22 ft
24 ft
28 ft
32 ft |
22 ft
24 ft
28 ft
32 ft |
|
| Cabin Type |
Sleeper cabin |
N/A |
|
| Cabin Tilt mechanism |
Hydraulically tiltable |
N/A |
|
| Chassis Frame |
Ladder type straight frame |
Ladder type |
|
| Axle Configuration |
8x2 |
8x2 |
|
| Front Axle |
Forged I Beam, Reverse Elliot Type |
Forged 7T I beam reverse elliot type |
|
| Rear Axle |
Single reduction RA 110LD
RAR: 5.12 |
RA-110LD at RFWD
RA 909 at RRWD |
|
| Front Suspension |
Parabolic leaf springs |
Parabolic leaf springs |
|
| Rear Suspension |
Semi elliptical leaf springs
Bell crank |
Semi elliptical leaf springs
Bell crank |
|
| Tyres |
295/90R20 (Tube)
12+1 tyres |
295/90R20 (Tube)
12+1 tyres |
|
| Wheelbase |
5205 mm
5505 mm
5905 mm
6750 mm |
N/A |
|
| Turning Circle Diameter |
19.9 m (5205 wb)
21.5 m (5505 wb)
22.38 m (5905 wb)
23.2 m (6750 wb) |
N/A |
|
| Overall Length |
9035 mm (5205 wb)
9635 mm (5505 wb)
10385 mm (5905 wb) |
N/A |
|
| Chassis Flange width |
65 mm |
N/A |
|
| Chassis Thickness |
8.5 mm
7 mm (68 wb) |
N/A |
|
Features & Comfortof
| Cabin Suspension |
Semi suspended |
Fully suspended |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
No |
Tilt and telescopic |
|
| Driver Seat |
4 way adjustable |
4 way adjustable |
|
| Instrument Cluster |
Digital
With mileage indicator
Distance to empty |
Digital
With mileage indicator
Distance to empty |
|
| Music System |
Touchscreen infotainment system (Optional) |
Touchscreen infotainment system (Optional) |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Automatic Transmission |
No |
No |
|
| Cabin Suspension |
Semi suspended |
Fully suspended |
|
| Steering |
Power Steering |
Power Steering |
|
| Steering Adjustment |
No |
Tilt and telescopic |
|
| Driver Seat |
4 way adjustable |
4 way adjustable |
|
| Instrument Cluster |
Digital
With mileage indicator
Distance to empty |
Digital
With mileage indicator
Distance to empty |
|
| Music System |
Touchscreen infotainment system (Optional) |
Touchscreen infotainment system (Optional) |
|
| Mobile Charging Point |
Yes |
Yes |
|
| Automatic Transmission |
No |
No |
|
Safetyof
| Service Brakes |
Air brakes |
Air brakes |
|
| Parking Brakes |
Graduated valve controlled spring brake
Acting on rear axle |
Graduated valve controlled spring brake
Acting on rear axle |
|
| Reverse Parking_Buzzer |
Yes |
Yes |
|
| Tubeless Tyres |
Optional |
Optional |
|
| Service Brakes |
Air brakes |
Air brakes |
|
| Parking Brakes |
Graduated valve controlled spring brake
Acting on rear axle |
Graduated valve controlled spring brake
Acting on rear axle |
|
| Reverse Parking_Buzzer |
Yes |
Yes |
|
| Tubeless Tyres |
Optional |
Optional |
|
Key Comparison of Tata Ultra 3525.T vs Tata LPT 3525
Compare Tata Ultra 3525.T vs Tata LPT 3525 in detail at TrucksBuses.com ! You can check detailed truck comparison of Tata Ultra 3525.T with Tata LPT 3525 on the basis of engine, specifications, payload, price, mileage and features. Tata Ultra 3525.T with a gross weight of , gives a power of whereas Tata LPT 3525 produces of power and comes with a GVW of . Powering the Tata Ultra 3525.T truck is cylinder, engine whereas Tata LPT 3525 gets powered by a cylinder, engine.
