What is Force Traveller Delivery Van 3700 gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Force Traveller Delivery Van 3700 is .

Force Traveller Delivery Van 3700 specifications

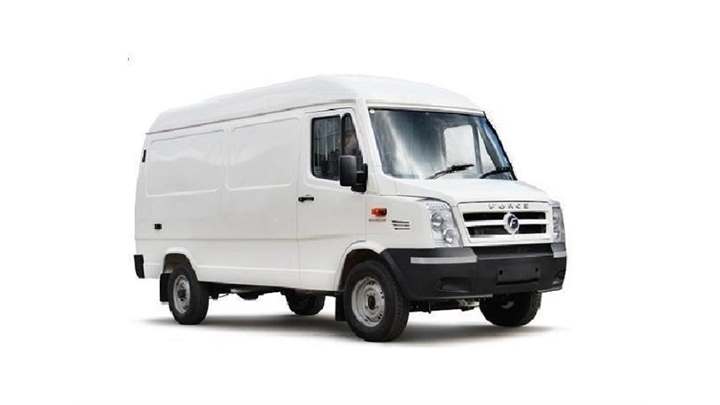

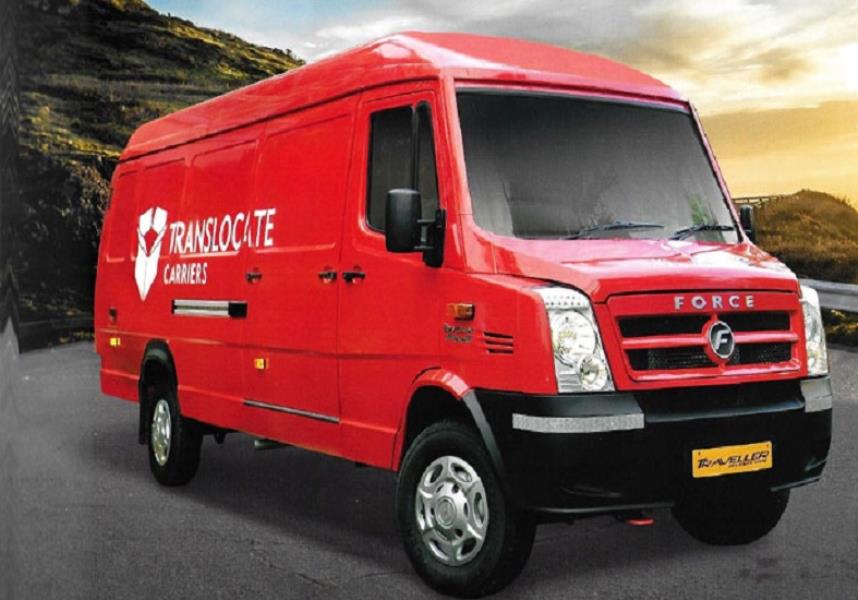

Force Traveller Delivery Van 3700 Images

Rate This Vehicle

From ₹ 14.66-15.03 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Force Traveller Delivery Van 3700 for this month

Download Force Traveller Delivery Van 3700 Brochure

Check out the Force Traveller Delivery Van 3700 PDF brochure at TrucksBuses.com with all features and specifications.

Force Traveller Delivery Van 3700 - 4 Wheeler Highlights

Power

115

GVW

4125 Kg

Fuel

Diesel

Engine

2596 cc

Cylinders

Key Specifications of Force Traveller Delivery Van 3700

Engine
Configuration

Force Traveller Delivery Van 3700 Engine
Engine
FM 2.6 CR ED
SCR technology
Force Traveller Delivery Van 3700 Engine Displacement
Engine Displacement
2596 cc
Force Traveller Delivery Van 3700 Engine Cylinders
Engine Cylinders
4
Force Traveller Delivery Van 3700 Power
Power
115 HP@2950 rpm
Force Traveller Delivery Van 3700 Torque
Torque
350 Nm@1400-2200 rpm
Force Traveller Delivery Van 3700 Clutch
Clutch
280 mm dia
With clutch booster
Force Traveller Delivery Van 3700 Transmission
Transmission
5 speed (5F+1R)
Force Traveller Delivery Van 3700 Gearbox
Gearbox
G32-5 Synchromesh
Force Traveller Delivery Van 3700 Max Speed
Max Speed
80 Kmph
Force Traveller Delivery Van 3700 Emission Norms Compliance
Emission Norms Compliance
BS6
Force Traveller Delivery Van 3700 Fuel Type
Fuel Type
Diesel
Force Traveller Delivery Van 3700 Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 70 Litres
DEF: 23 Litres

Force Traveller Delivery Van 3700 GVW
GVW
4125 Kg
Force Traveller Delivery Van 3700 Payload
Payload
1700 Kg
Force Traveller Delivery Van 3700 Vehicle Configuration
Vehicle Configuration
Closed cargo van
Force Traveller Delivery Van 3700 Seating Capacity
Seating Capacity
D+1
Force Traveller Delivery Van 3700 Axle Configuration
Axle Configuration
4x2
Force Traveller Delivery Van 3700 Front Axle
Front Axle
Rigid I-Beam, Reverse Elliot Type
Force Traveller Delivery Van 3700 Rear Axle
Rear Axle
Live Rigid
Force Traveller Delivery Van 3700 Front Suspension
Front Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Force Traveller Delivery Van 3700 Rear Suspension
Rear Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Force Traveller Delivery Van 3700 Anti Roll Bar
Anti Roll Bar
Front
Force Traveller Delivery Van 3700 Tyres
Tyres
215/75 R15
Force Traveller Delivery Van 3700 Wheelbase
Wheelbase
3700 mm
Force Traveller Delivery Van 3700 Turning Circle Diameter
Turning Circle Diameter
13 m
Force Traveller Delivery Van 3700 Ground Clearance
Ground Clearance
200 mm
Force Traveller Delivery Van 3700 Overall Length
Overall Length
6265 mm
Force Traveller Delivery Van 3700 Overall Width
Overall Width
1900 mm
Force Traveller Delivery Van 3700 Overall Height
Overall Height
2550 mm
Force Traveller Delivery Van 3700 Load Body Dimensions
Load Body Dimensions
13 x 5.5 ft

Force Traveller Delivery Van 3700 Specification Highlights

Here, we will discuss the specifications of the Force traveller 3700 delivery van. This Force traveller 3700 delivery van is empowered by a 2596 cc displacement FM 2.6 CR ED SCR technology engine. It produces a power of 115 HP and a high-end torque of 350 Nm. Its power transmission is controlled by a synchromesh 5-speed gearbox system. This Force traveller 3700 delivery van has an axle configuration is 4x2. It follows BS6 emission. For comfortable riding, its front and rear suspension are coupled with semi-elliptical leaf springs with telescopic shock absorbers. The wheelbase size of this 3700 delivery van is 3700 mm and the tyre size is 215 and 75 R15 giving 200 mm ground clearance. Some other specifications are mentioned in the table above.
