What is the engine capacity of Force Traveller School 4020: 20 Seater van ?

Force Traveller School 4020: 20 Seater comes with 4 cylinder FM 2.6 CR ED# SCR technology engine and the engine displacement is 2596 cc

What is Force Traveller School 4020: 20 Seater gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Force Traveller School 4020: 20 Seater is .

Force Traveller 4020: School 19 / 20 Seater specifications

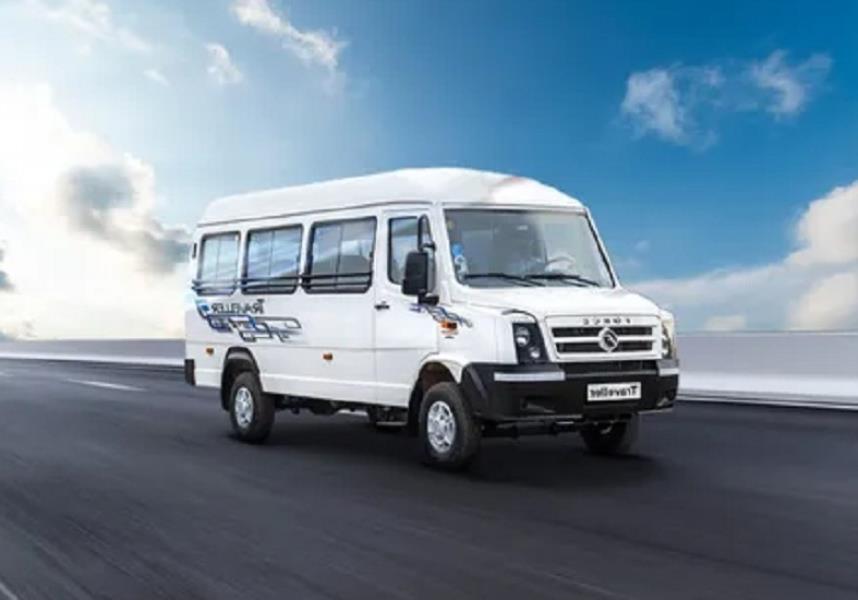

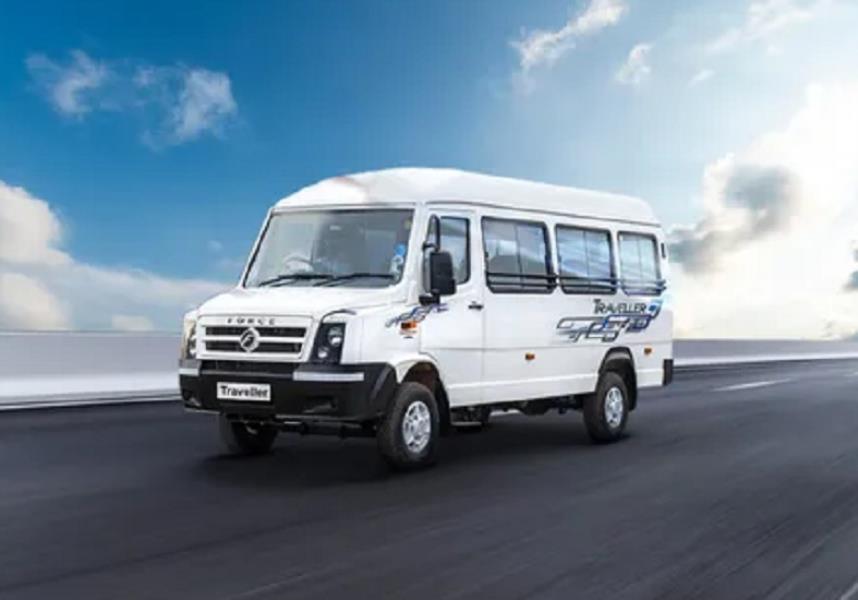

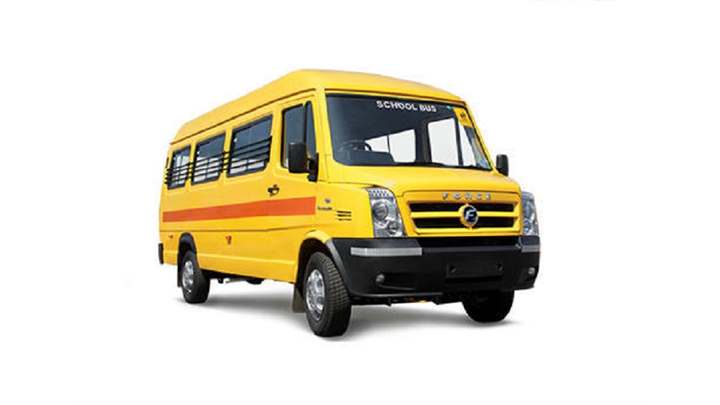

Force Traveller School 4020: 20 Seater Van Images

Rate This Vehicle

From ₹ 16.42-17.26 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Force Traveller School 4020: 20 Seater Van for this month

Force Traveller School 4020: 20 Seater - 4 Wheeler Highlights

Power

115

GVW

4675 Kg

Fuel

Diesel

Engine

2596 cc

Cylinders

Key Specifications of Force Traveller School 4020: 20 Seater Van

Engine
Configuration

Force Traveller School 4020: 20 Seater Van Engine
Engine
FM 2.6 CR ED
SCR technology
Force Traveller School 4020: 20 Seater Van Engine Displacement
Engine Displacement
2596 cc
Force Traveller School 4020: 20 Seater Van Engine Cylinders
Engine Cylinders
4
Force Traveller School 4020: 20 Seater Van Power
Power
115 HP@2950 rpm
Force Traveller School 4020: 20 Seater Van Torque
Torque
350 Nm@1400-2200 rpm
Force Traveller School 4020: 20 Seater Van Clutch
Clutch
280 mm dia
With clutch booster
Force Traveller School 4020: 20 Seater Van Transmission
Transmission
5 speed (5F+1R)
Force Traveller School 4020: 20 Seater Van Gearbox
Gearbox
G32-5 Synchromesh
Force Traveller School 4020: 20 Seater Van Emission Norms Compliance
Emission Norms Compliance
BS6
Force Traveller School 4020: 20 Seater Van Fuel Type
Fuel Type
Diesel
Force Traveller School 4020: 20 Seater Van Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 70 Litres
DEF: 23 Litres

Force Traveller School 4020: 20 Seater Van GVW
GVW
4675 Kg
Force Traveller School 4020: 20 Seater Van Seating Capacity
Seating Capacity
20+D
Force Traveller School 4020: 20 Seater Van Axle Configuration
Axle Configuration
4x2
Force Traveller School 4020: 20 Seater Van Front Axle
Front Axle
Rigid I-Beam, Reverse Elliot Type
Force Traveller School 4020: 20 Seater Van Rear Axle
Rear Axle
Live Rigid
Force Traveller School 4020: 20 Seater Van Front Suspension
Front Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Force Traveller School 4020: 20 Seater Van Rear Suspension
Rear Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Force Traveller School 4020: 20 Seater Van Anti Roll Bar
Anti Roll Bar
Front only
Force Traveller School 4020: 20 Seater Van Tyres
Tyres
235/65 R16
Force Traveller School 4020: 20 Seater Van Wheelbase
Wheelbase
4020 mm
Force Traveller School 4020: 20 Seater Van Turning Circle Diameter
Turning Circle Diameter
14.5 m
Force Traveller School 4020: 20 Seater Van Ground Clearance
Ground Clearance
200 mm
Force Traveller School 4020: 20 Seater Van Overall Length
Overall Length
6966 mm
Force Traveller School 4020: 20 Seater Van Overall Width
Overall Width
1900 mm
Force Traveller School 4020: 20 Seater Van Overall Height
Overall Height
2550 mm
Force Traveller School 4020: 20 Seater Van Front Overhang
Front Overhang
1100 mm
Force Traveller School 4020: 20 Seater Van Rear Overhang
Rear Overhang
1846 mm

Force Traveller School 4020: 20 Seater Van Specification Highlights

For the new Force Traveller specification TrucksBuses brings this tab for you. The latest Force Traveller School 4020 van specifications include FM 2.6 CR ED and SCR technology engine with 2596 cc of engine displacement. The buyers will get 5 speed transmission with BS6 of emission norms compliance and diesel fuel tank capacity of 70 liters and DEF 23 liters. The Froce Traveller van has 4x2 axle configuration with Rigid I-Beam, Reverse Elliot Type of front axle and Live Rigid type of rear axle. Apart from this, latest Force Traveller School 4020 comes with 20 seater van. The Force Traveller 20 seater school van specifications also includes semi elliptical leaf springs with telescopic shock absorbers at front suspension and semi elliptical leaf springs with telescopic shock absorbers at rear suspension.
