What is the engine capacity of Force Traveller School 25 Seater van ?

Force Traveller School 25 Seater comes with 4 cylinder FM 2.6 CR ED# SCR technology engine and the engine displacement is 2596 cc

What is Force Traveller School 25 Seater gradeability ?

Gradeability of any truck defines its ability to climb upward slopes. The gradeability of Force Traveller School 25 Seater is .

Force Traveller 26 CRDI School specifications

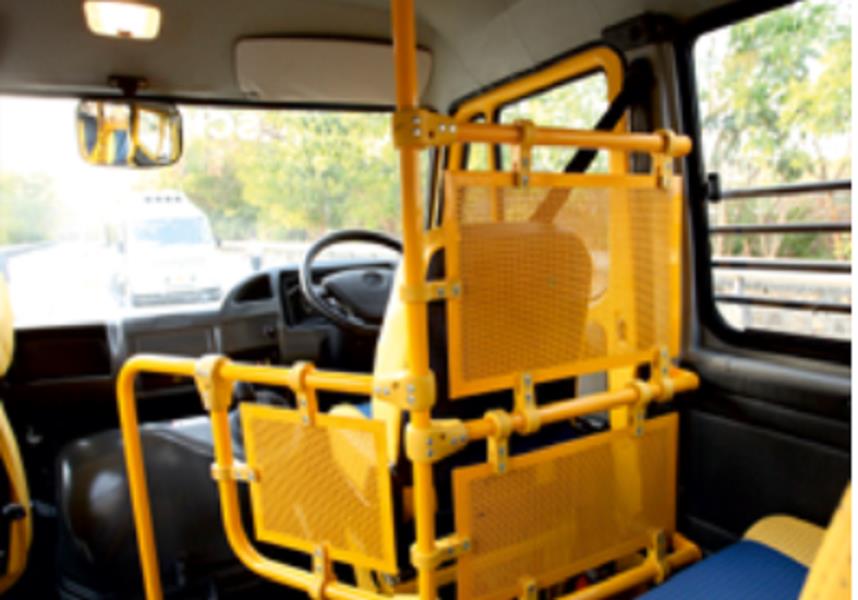

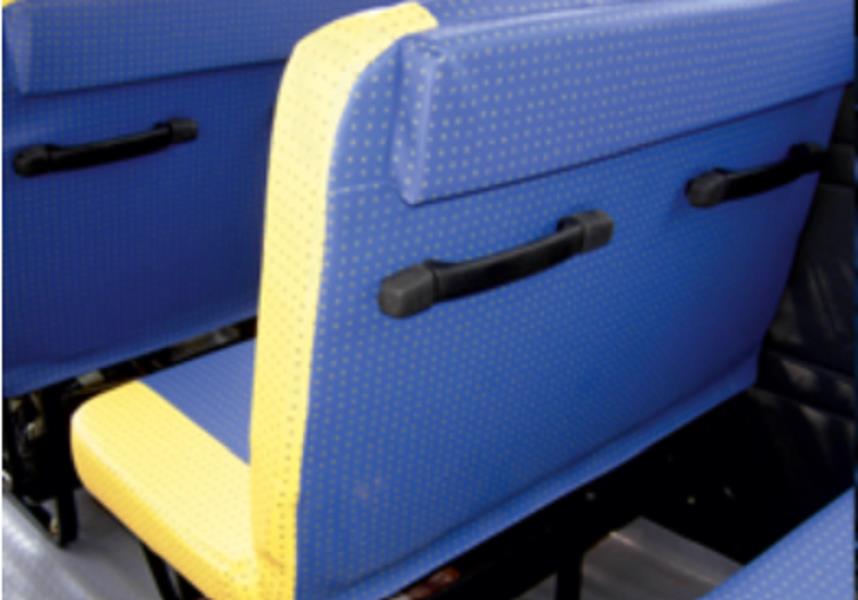

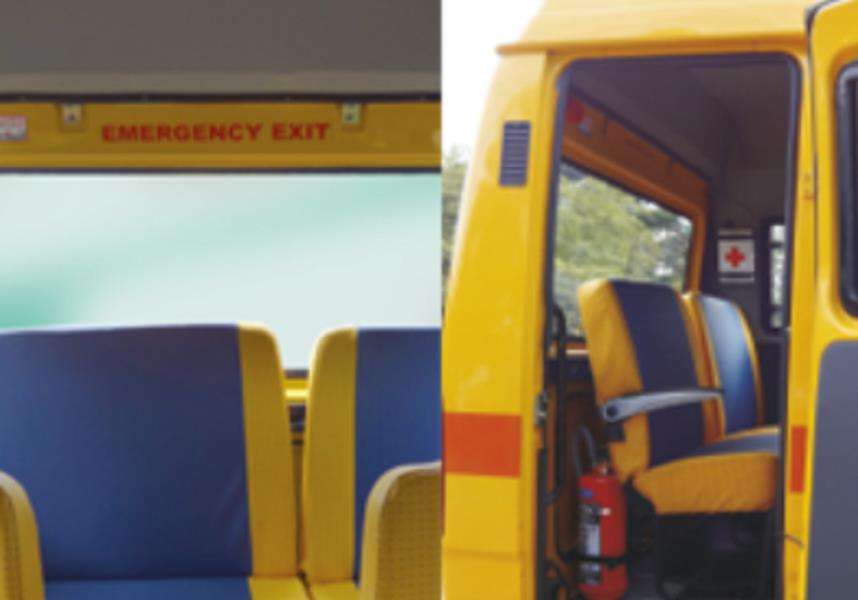

Force Traveller School 25 Seater Van Images

Rate This Vehicle

From ₹ 16.83-23.11 Lakh*
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Force Traveller School 25 Seater Van for this month

Force Traveller School 25 Seater - 4 Wheeler Highlights

Power

115

GVW

5900 Kg

Fuel

Diesel

Engine

2596 cc

Cylinders

Key Specifications of Force Traveller School 25 Seater Van

Engine
Configuration

Force Traveller School 25 Seater Van Engine
Engine
FM 2.6 CR ED
SCR technology
Force Traveller School 25 Seater Van Engine Displacement
Engine Displacement
2596 cc
Force Traveller School 25 Seater Van Engine Cylinders
Engine Cylinders
4
Force Traveller School 25 Seater Van Power
Power
115 HP@2950 rpm
Force Traveller School 25 Seater Van Torque
Torque
350 Nm@1400-2200 rpm
Force Traveller School 25 Seater Van Clutch
Clutch
280 mm dia
With clutch booster
Force Traveller School 25 Seater Van Transmission
Transmission
5 speed (5F+1R)
Force Traveller School 25 Seater Van Gearbox
Gearbox
G32-5 Synchromesh
Force Traveller School 25 Seater Van Emission Norms Compliance
Emission Norms Compliance
BS6
Force Traveller School 25 Seater Van Fuel Type
Fuel Type
Diesel
Force Traveller School 25 Seater Van Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 70 Litres
DEF: 23 Litres

Force Traveller School 25 Seater Van GVW
GVW
5900 Kg
Force Traveller School 25 Seater Van Seating Capacity
Seating Capacity
25+D
Force Traveller School 25 Seater Van Axle Configuration
Axle Configuration
4x2
Force Traveller School 25 Seater Van Front Axle
Front Axle
Dead Rigid
Force Traveller School 25 Seater Van Rear Axle
Rear Axle
Live Rigid
Force Traveller School 25 Seater Van Front Suspension
Front Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Force Traveller School 25 Seater Van Rear Suspension
Rear Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Force Traveller School 25 Seater Van Anti Roll Bar
Anti Roll Bar
Front only
Force Traveller School 25 Seater Van Tyres
Tyres
215/75 R 15
6+1 tyres
Force Traveller School 25 Seater Van Wheelbase
Wheelbase
4020 mm
Force Traveller School 25 Seater Van Turning Circle Diameter
Turning Circle Diameter
14 m
Force Traveller School 25 Seater Van Ground Clearance
Ground Clearance
180 mm
Force Traveller School 25 Seater Van Overall Length
Overall Length
6970 mm
Force Traveller School 25 Seater Van Overall Width
Overall Width
2225 mm
Force Traveller School 25 Seater Van Overall Height
Overall Height
2670 mm
2870 mm (with AC)
Force Traveller School 25 Seater Van Front Track
Front Track
1930 mm
Force Traveller School 25 Seater Van Rear Track
Rear Track
1740 mm
Force Traveller School 25 Seater Van Front Overhang
Front Overhang
900 mm
Force Traveller School 25 Seater Van Rear Overhang
Rear Overhang
1846 mm

Force Traveller School 25 Seater Van Specification Highlights

When it comes to Force Traveller School 25 Seater specifications, we can break it into engine performance related parameters and the design related aspectsForce Traveller School 25 Seater comes with a FM 2.6 CR ED, SCR technology diesel engine with 2596 cc displacement Matched with a 5 speed (5F+1R) transmission, superior Force Traveller School 25 Seater mileage and a fuel tank capacity of diesel: 70 litres, def: 23 litres, one can travel miles without refueling This Force small commercial vehicle comes fitted with tyres of the size 215/75 r 15, 6+1 tyres offering a superior 180 mm ground clearance.
