What is the engine capacity of Tata Magic Express School van ?

Tata Magic Express School comes with 2 cylinder 0.8L DI, Common Rail# SCR technology engine and the engine displacement is 798 cc

Tata Magic Express School specifications

Rate This Vehicle

From ₹ 7.34 Lakh* Onwards
*Ex-showroom Price

Check Discount Offer Check On Road Price

Don't miss out on the best discount offers on Tata Magic Express School Van for this month

Download Tata Magic Express School Van Brochure

Check out the Tata Magic Express School Van PDF brochure at TrucksBuses.com with all features and specifications.

Tata Magic Express School - 4 Wheeler Highlights

Power

GVW

1950 Kg

Fuel

Diesel

Engine

798 cc

Cylinders

Key Specifications of Tata Magic Express School Van

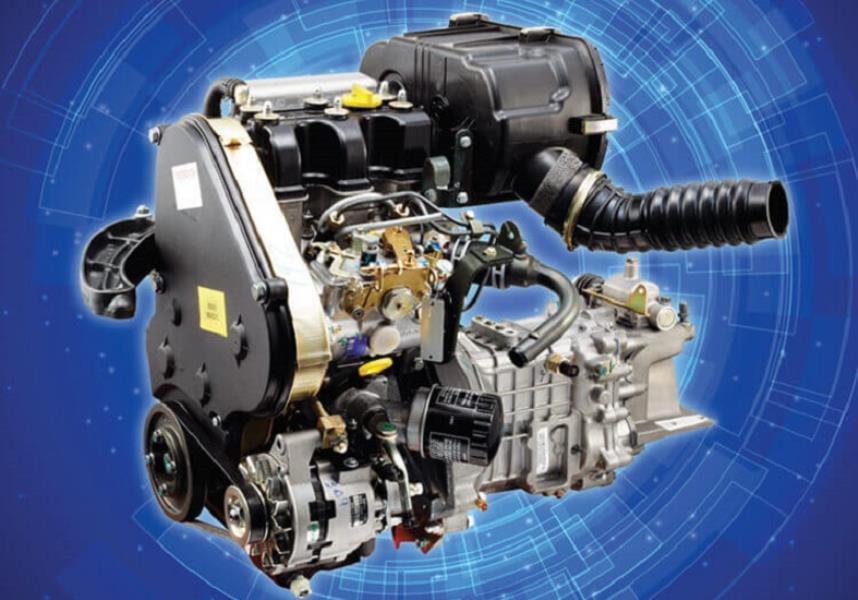

Engine
Configuration

Tata Magic Express School Van Engine
Engine
0.8L DI, Common Rail
SCR technology
Tata Magic Express School Van Engine Displacement
Engine Displacement
798 cc
Tata Magic Express School Van Engine Cylinders
Engine Cylinders
2
Tata Magic Express School Van Power
Power
44 HP@3750 rpm
Tata Magic Express School Van Torque
Torque
110 Nm@1700-2000 rpm
Tata Magic Express School Van Clutch
Clutch
190 mm dia dry friction
Tata Magic Express School Van Transmission
Transmission
5 speed (5F+1R)

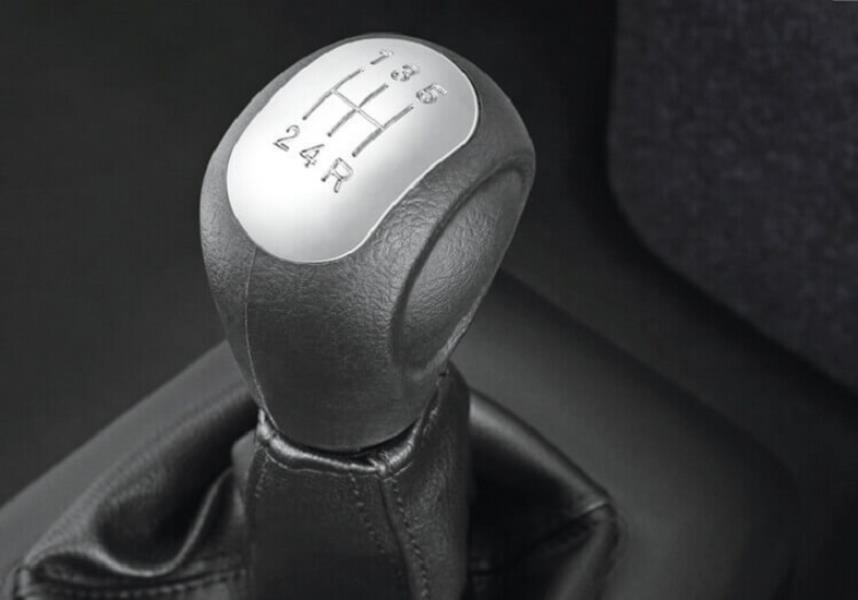

Tata Magic Express School Van Gearbox
Gearbox
Synchromesh
Tata Magic Express School Van Gradeability
Gradeability
38%
Tata Magic Express School Van Max Speed
Max Speed
80 Kmph
Tata Magic Express School Van Emission Norms Compliance
Emission Norms Compliance
BS6
Tata Magic Express School Van Fuel Type
Fuel Type
Diesel
Tata Magic Express School Van Fuel Tank Capacity
Fuel Tank Capacity
Diesel: 30 Litres
DEF: 10 Litres

Tata Magic Express School Van GVW
GVW
1950 Kg
Tata Magic Express School Van Seating Capacity
Seating Capacity
9+D
Tata Magic Express School Van Axle Configuration
Axle Configuration
4x2
Front wheel drive
Tata Magic Express School Van Front Axle
Front Axle
Rigid beam construction
Tata Magic Express School Van Front Suspension
Front Suspension
Parabolic Leaf Spring
Tata Magic Express School Van Rear Suspension
Rear Suspension
Semi elliptical leaf springs
With telescopic shock absorbers
Tata Magic Express School Van Anti Roll Bar
Anti Roll Bar
Front and rear

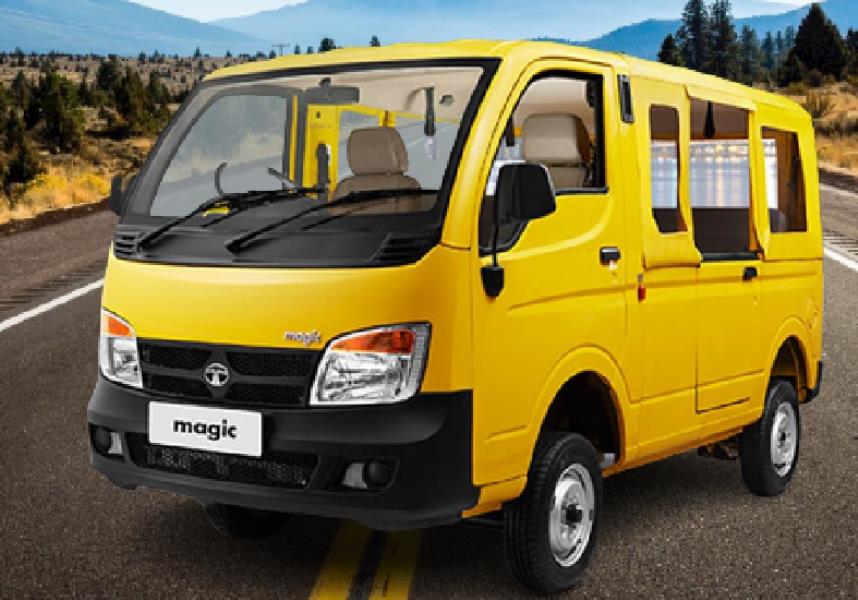

Tata Magic Express School Van Tyres
Tyres
155 R13
Tata Magic Express School Van Wheelbase
Wheelbase
2100 mm
Tata Magic Express School Van Turning Circle Diameter
Turning Circle Diameter
8.6 m
Tata Magic Express School Van Ground Clearance
Ground Clearance
150 mm
Tata Magic Express School Van Overall Length
Overall Length
3790 mm
Tata Magic Express School Van Overall Width
Overall Width
1500 mm
Tata Magic Express School Van Overall Height
Overall Height
1890 mm
Tata Magic Express School Van Front Track
Front Track
1300 mm
Tata Magic Express School Van Rear Track
Rear Track
1320 mm
Tata Magic Express School Van Rear Overhang
Rear Overhang
710 mm

Tata Magic Express School Van Specification Highlights

When it comes to Tata Magic Express School specifications, we can break it into engine performance related parameters and the design related aspectsTata Magic Express School comes with a 0.8L DI, Common Rail, SCR technology diesel engine with 798 cc displacement Matched with a 5 speed (5F+1R) transmission, superior Tata Magic Express School mileage and a fuel tank capacity of diesel: 30 litres, def: 10 litres, one can travel miles without refueling This Tata small commercial vehicle comes fitted with tyres of the size 155 r13 offering a superior 150 mm ground clearance.
